Step into the world of automotive customization with confidence as we present our comprehensive guide to wiring RGB Halo Kits and seamlessly integrating them with accompanying mobile apps. From novice enthusiasts to seasoned veterans, this guide is tailored to equip you with the necessary knowledge and skills to transform your vehicle into a stunning display of vibrant illumination. Join us as we illuminate the path to effortless installation and endless customization possibilities.
  • How do I wire my RGB, RGBW, or flow series halo rings?
  • What app do I download?
  • How do I connect my phone to the Bluetooth controller?
  • Where do I power the Bluetooth controller?

This wiring diagram is the Answer!

  • This wiring guide covers most products that RGB halo kits sells like Halo Kits, DRL Kits, Headlight Strip lighting, Grille Lights, Engine Bay Lights, LED emblems, etc. However, some products like underglow and LED wheel rings may have slightly different wiring or setup. Please use the included wiring guide for those specific products.

Note: Controller and app were updated to our new Hybrid LED Controller as of 11/01/2023. If your order is before that date, please scroll to bottom of page to see your setup or contact us for more info.

Note: This Wiring Guide Covers most products we carry, however there are some products with slightly different wiring set ups or apps. For those products, please see the direct help center article on that product or reference the include guide with that product order.

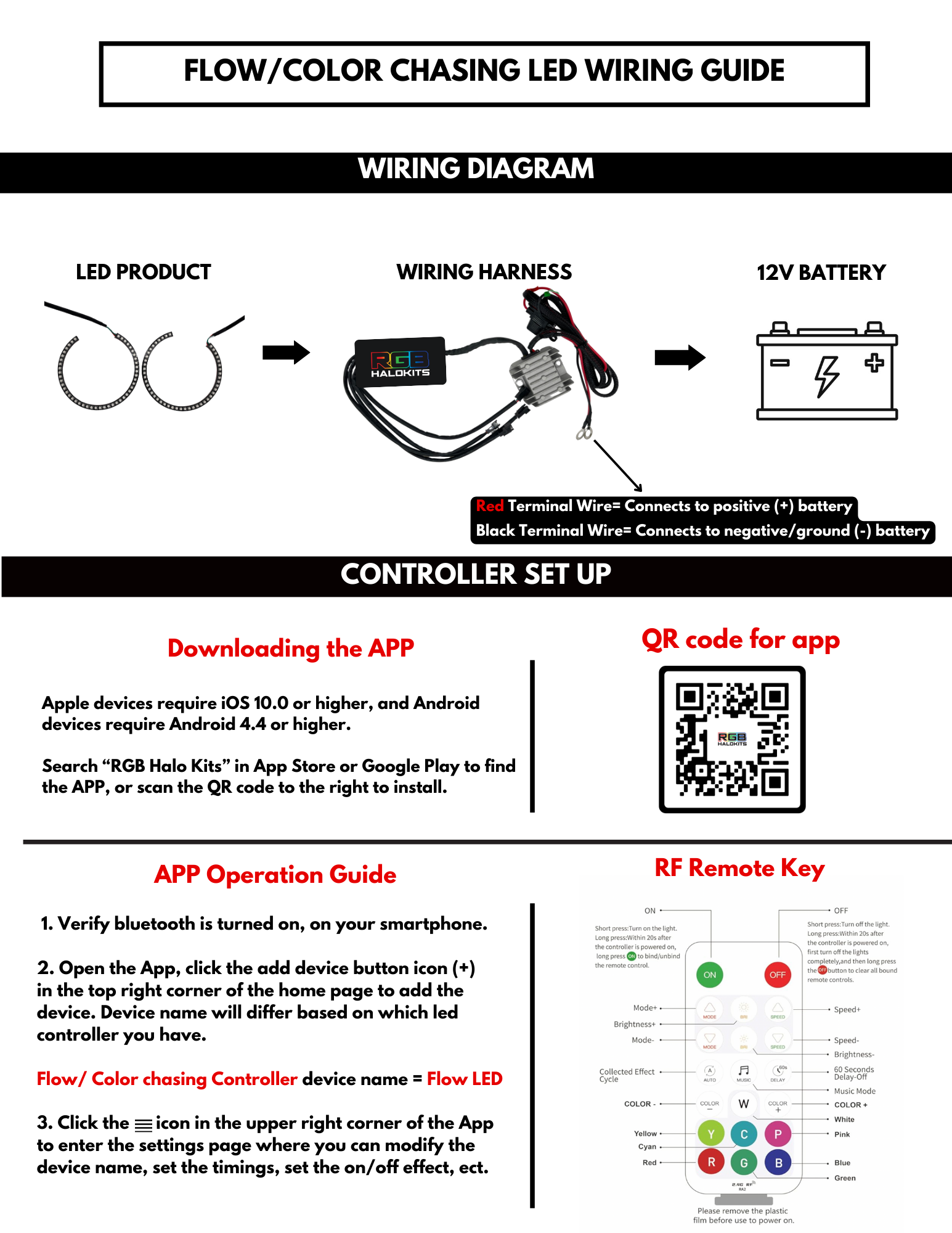

 FLOW SERIES/COLOR CHASING: LED STYLE WIRING

NEW AS OF 11/01/2023

app: Banlanx

Video of Flow/ Color Chasing Wiring Guide  (Note: app has been updated see top of page)

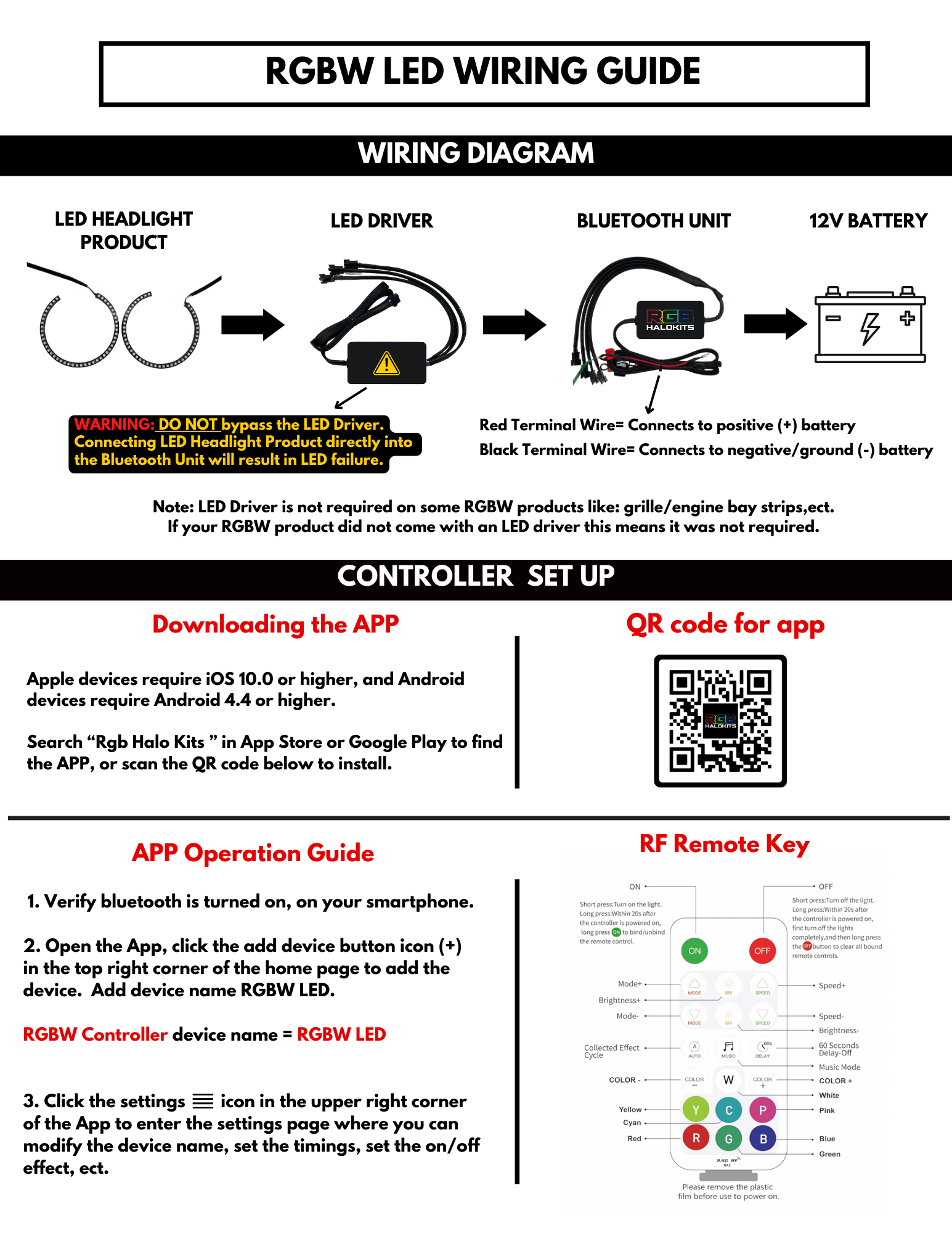

RGBW OR RGBWA LED STYLE WIRING GUIDE

NEW AS OF 11/01/2023

app: Banlanx

RGBW

Video of RGBW Wiring Guide

Note: app has been updated see top of page

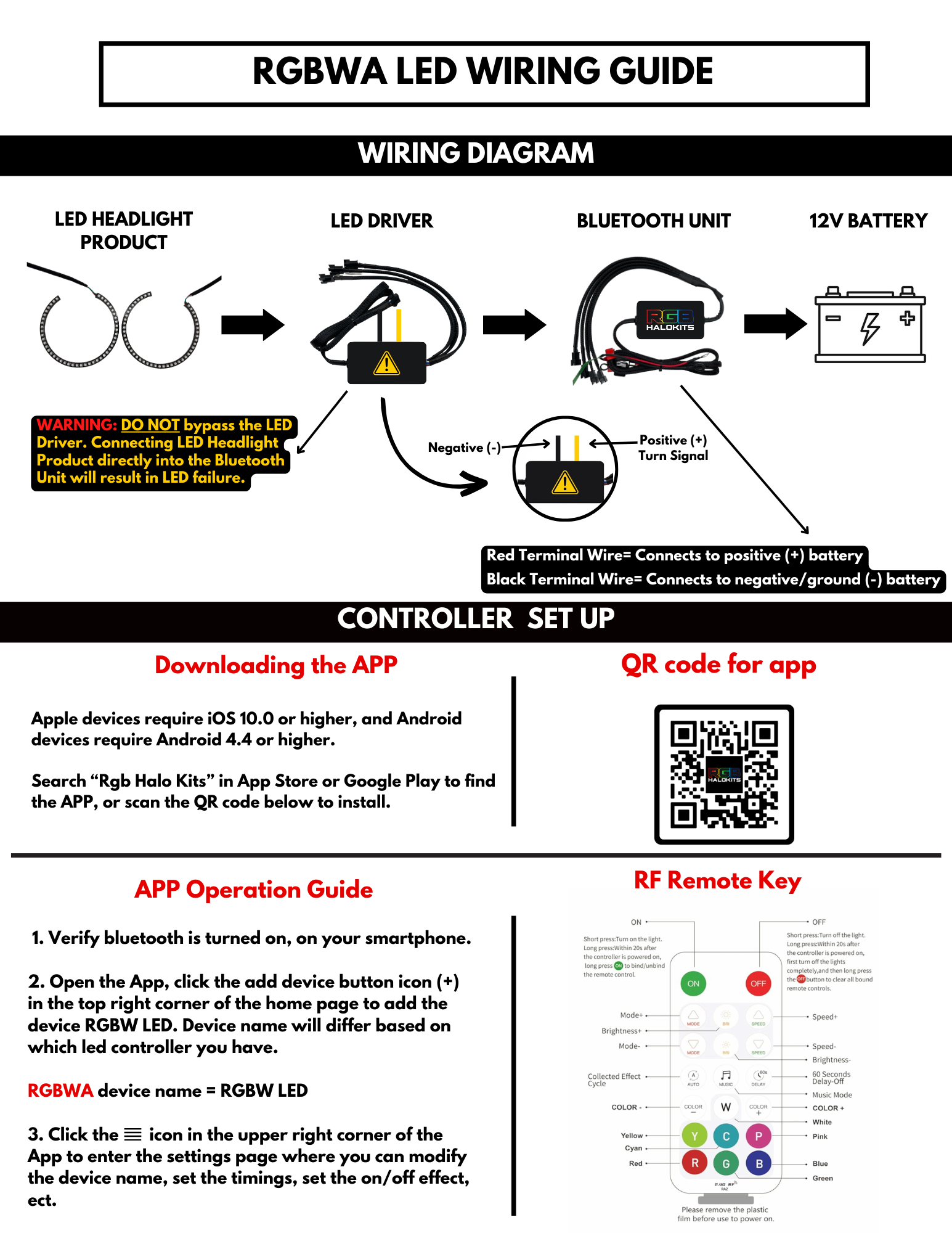

 RGBWA= RGBW+ Amber Turn Signal

WIRING FAQ

  •   Can I wire my lights to turn on/off automatically with a vehicle parking light or DRL?

Yes, you can wire the controller two ways:

1. (recommended) you can wire the controller straight to the battery or constant power source: this will allow you to control the lights at all times even if the car is off. Lights will have to be cut on/off manually via the app.

2. You can wire the controller to a DRL fuse or parking light. The wiring will allow the lights to cut on/off automatically with the DRL or parking lights on your vehicle; however, you will not be able to control the lights while the vehicle or DRL/parking light is off.



For orders before 11/01/2023 (Flow Series/ Color chasing)
app: LED Hue



For orders before 11/01/2023 (RGBW and RGBWA)
app: Magic Light
