Universal Version = may need to remove factory GMC letters first or install in a alternate location on tailgate (does not fit inside factory letters)
2007-18 GMC Sierra option = installs inside factory letters and replaces red inserts
2019-2024 GMC Sierra option = installs inside factory letters and replaces red inserts
✔️ #1 Most Head-turning Mod for GMC trucks✔️ Red running / brake + White Reverse Lights Function
✔️ Enhanced Look
✔️ 100% Waterproof + Dustproof:
Overview
Order Includes
- 1 Illuminated LED Emblem
- Easy Plug and Play Wiring + Harnesses/Drivers
Installation
Universal Version = may need to remove factory GMC letters first or install in a alternate location on tailgate (does not fit inside factory letters)
2007-18 GMC Sierra option = installs inside factory letters and replaces red inserts
2019-2024 GMC Sierra option = installs inside factory letters and replaces red inserts
Installation Time: 1-2 hours
Installation Overview: A hole is required to be drilled in your tailgate for the wiring. The hole will be covered by the emblem itself and will not be visible once installed. If you do not want to drill a hole, the wires must be wrapped around the edge of the tailgate, which means they will be exposed, and you may have to modify the edge of the panel for this to work.
Tools Needed: Basic Toolset
Install Guide: Rear Tailgate: GMC LED Emblem: (1999-2024) Install Guide
*This product only fits the Rear of your vehicle.
Tools Required
- Cleaning solution and microfiber cloth
- Masking tape
- Measuring tape
- Marker or sharpie
- Plastic pry tool (if removing factory emblem)
- Heat gun
Installation Steps
- Choose installation method: Decide whether you want to remove the factory emblem or install the new emblem in a separate location on the tailgate.
-
If removing factory emblem:
- Use a plastic pry tool to carefully remove the factory emblem
- Clean the area thoroughly with a cleaning solution and microfiber cloth
- Allow the surface to dry completely
-
If choosing a new location:
- Clean the chosen area on the tailgate
- Use masking tape and a measuring tape to mark the center point for installation
- Ensure the location is level and aligned with other vehicle features
-
Prepare the new emblem:
- Align and mark a spot to drill your 5/16th hole for your led wires.
- Remove the protective backing from the adhesive
- Be careful not to touch the adhesive surface
-
Install the new emblem:
- Carefully align the emblem with your chosen location and feed the led wires through the drilled hole
- Press firmly to adhere the emblem to the surface
- Hold in place for 30-60 seconds to ensure proper adhesion
-
Final steps:
- Remove any masking tape used for alignment
- Clean any fingerprints or smudges from the emblem surface
- mount your led driver in a secure location
- Wire your LED emblem into your vehicle tail lights according to the included guide
Note: If you're unsure about the installation process, we recommend seeking assistance from a professional installer or your local mechanic
Rear Tailgate: GMC LED Emblem: Install Guide – RGB HALO KITS
VEHICLE COMPATIBILITY
This product fits the following Year/Make Model(s) factory rear tailgate:
- 1999-2006 GMC Sierra
- 2007-2018 GMC Sierra
- 2019-2024 GMC Sierra
LED EMBLEM FAQ
Product questions
Installation on this product requires you to mount the LEDs on rear tailgate via included 3m tap on the letters and then drill a hole for you LED wires through the tail gate. The drilled hole will not be exposed and will be covered by LED letters once installation is completed.
Once letters are installed and hold is drilled for wires you will need to tap into parking, brake, and reverse light wires on your tail lights using a wiretap.

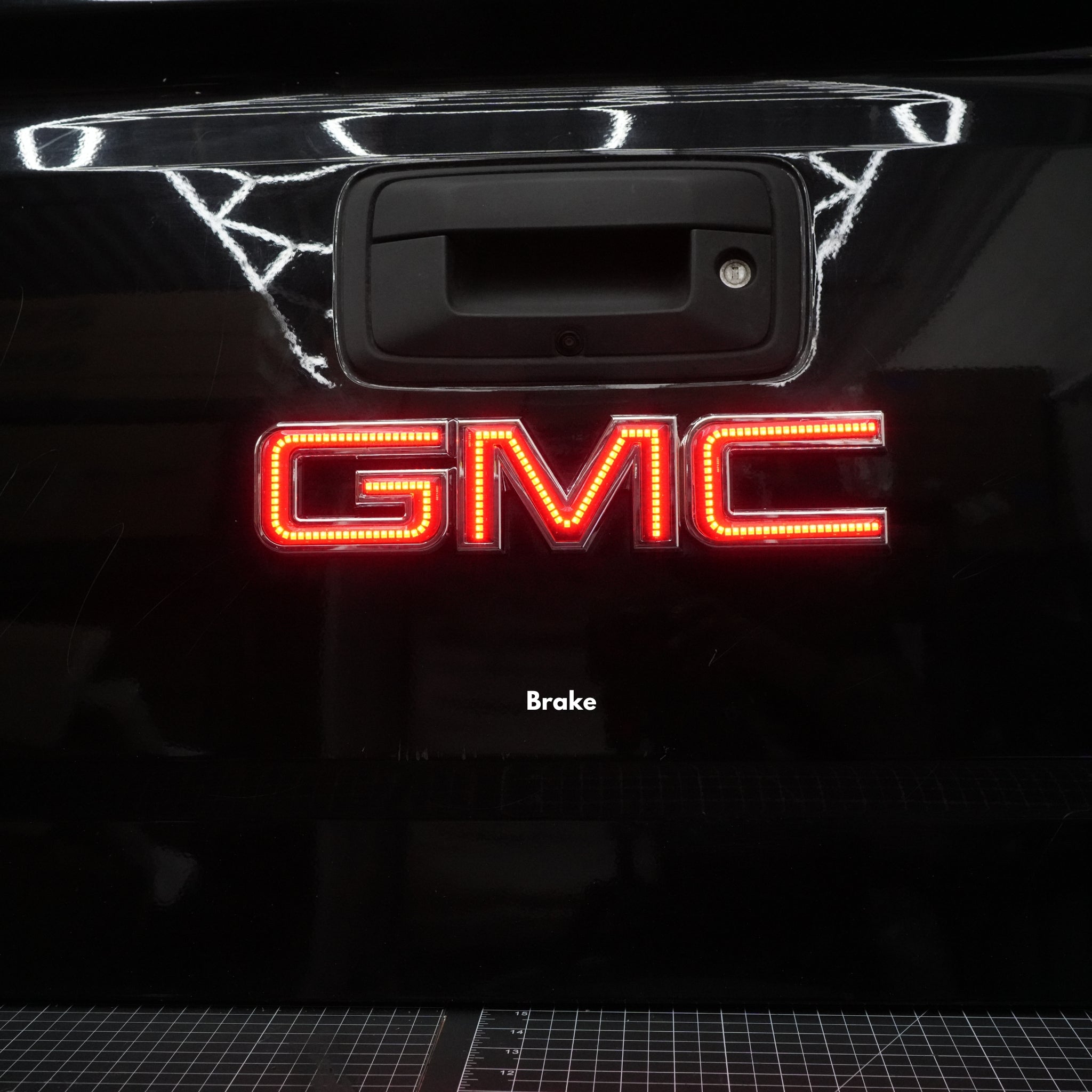

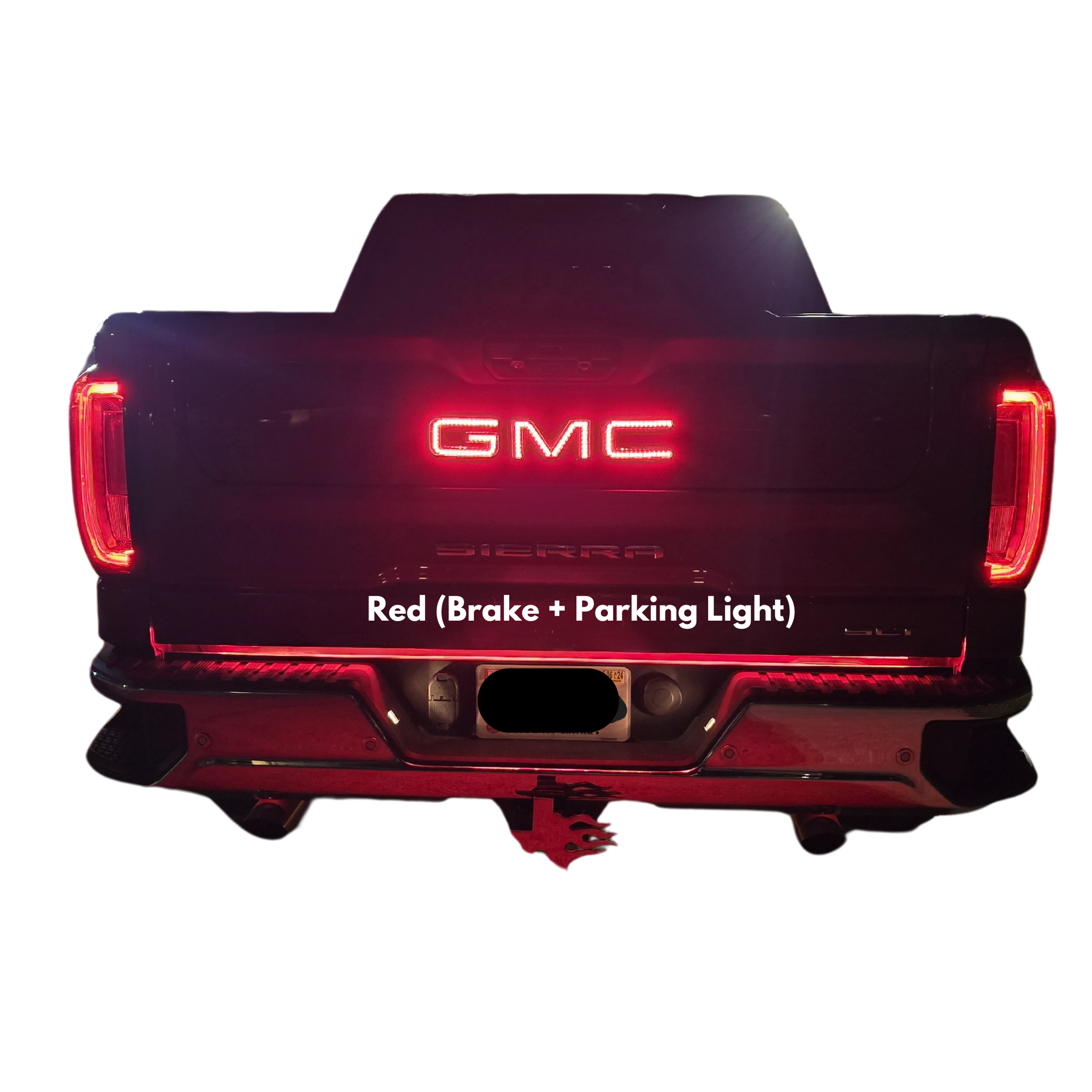

Yes, the emblem defaults to red when vehicle / parking lights are on and has a brighter brake red function when the brake is pressed.
The emblem also has a white LED function that will be illuminated when in reverse
It is not 100% plug and play you will need to tap into your parking light, brake, and reverse wire on one of the tail light harnesses to activate the emblem.

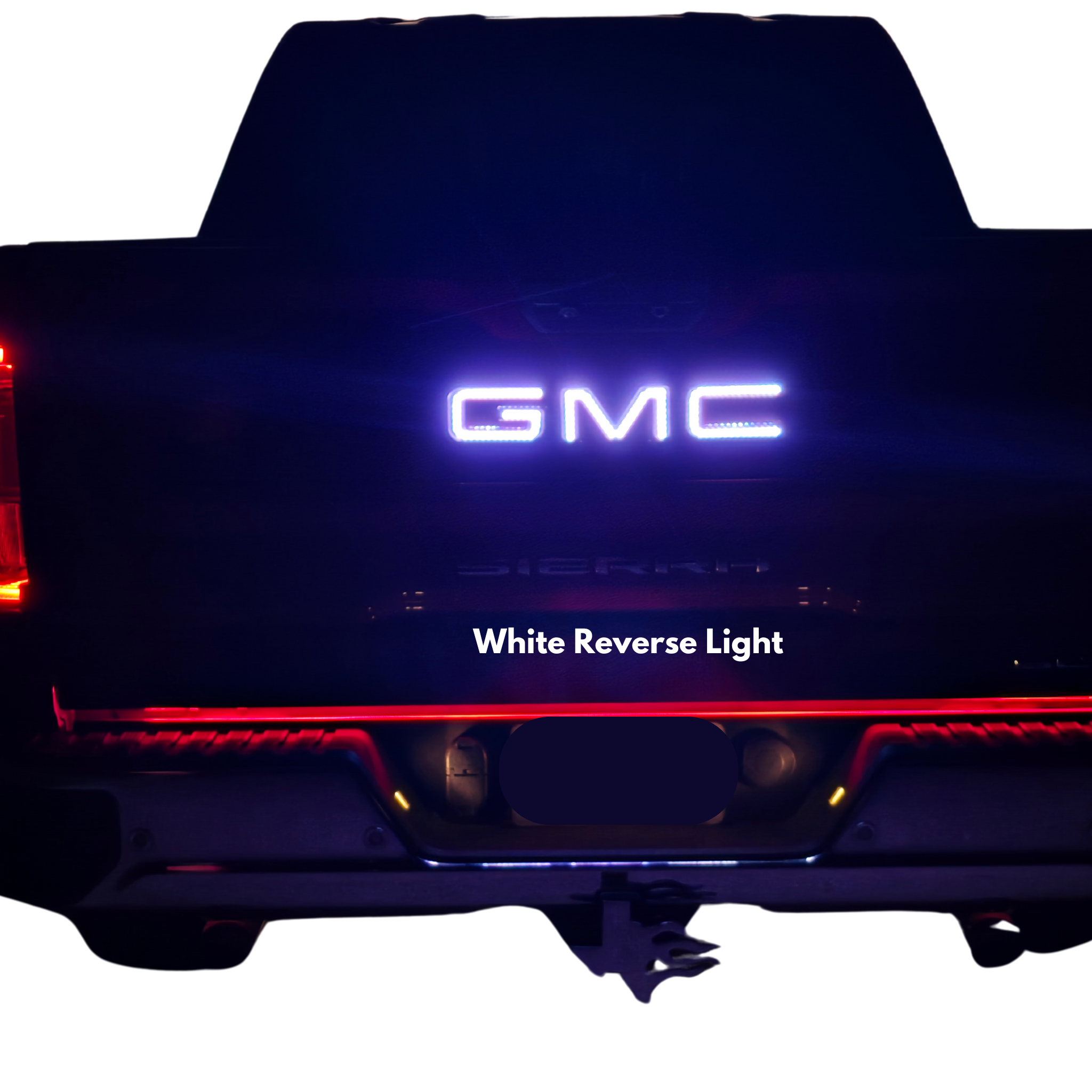

Yes, the emblem does change to white when reverse is activated.
No, the Emblem will not interfere or hinder any factory functions such as braking, turning, or reversing your vehicle.
This particular product is NOT multicolor. It's just RED Brake, RED Parking, and WHITE Reverse LEDS.
Yes, all of our emblems and badges are 100% waterproof making them suitable for all weather conditions.
Yes, the tailgate LED Letters do install inside the existing chrome emblem,
Alternatively, they can be mounted by themselves as well.
Our LED emblems are highly durable. They are made from high-quality materials that can withstand various weather conditions and everyday wear and tear.
Our LED emblems are powered by a Bluetooth module/ controller that allows full control over brightness, speed, and colors.
The Bluetooth controller simply connects to vehicle battery or any 12v power and ground source within vehicle. No splicing, or tapping into your vehicle's electrical system is necessary.
Most Products Ship from our warehouse here in Phoenix, AZ USA.
However, some product may ship from other warehouses or locations here in the United States.
In stock orders place before 11:00-am ship out same day and take around 3-6 business days to arrive within USA.
Overseas deliveries outside of USA can take anywhere from 7-16 days. Delivery details will be provided in your confirmation email.
Yes! All LED emblems and badges come with a 1 year warranty against LED failure or product defects, providing an extra layer of assurance for all our customers.
We stand by the quality of our LED emblems. If you are not fully satisfied with your purchase, we offer an easy return or exchange policy.
You can return the LED emblems within 30 days of your order date, provided the product is not installed and is in its original condition.
