Chevrolet Silverado HD: Multicolor Flow Series Headlights (2020-2023) | XB Morimoto
Adapter Harness (Req. for 2024 Trucks)



✨ Why You’ll Love This Mod
Light up your Silverado HD with a game-changing mod that combines OEM-grade Morimoto XB quality with custom RGB Flow Series lighting. Whether you’re rolling deep at night or pulling up to a show, these headlights deliver style, visibility, and full multicolor control.
-
🌈 Flow Series DRLs + Halos with RGB Color-Chasing Effects
-
📲 (2-in-1) Bluetooth + Handheld Remote for Easy Control
-

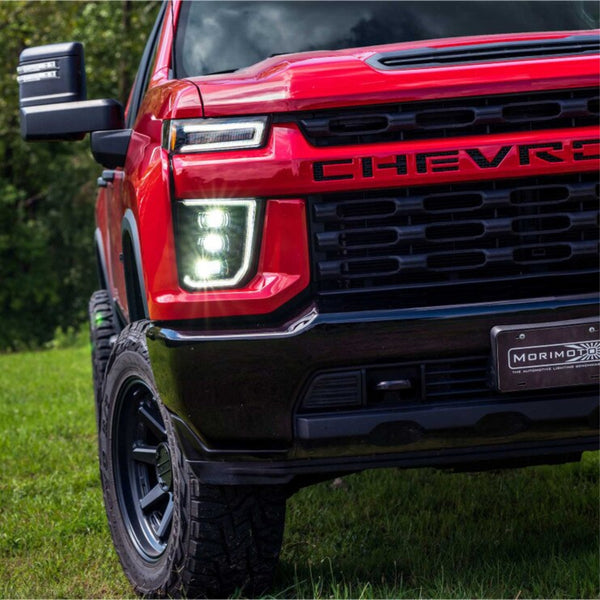

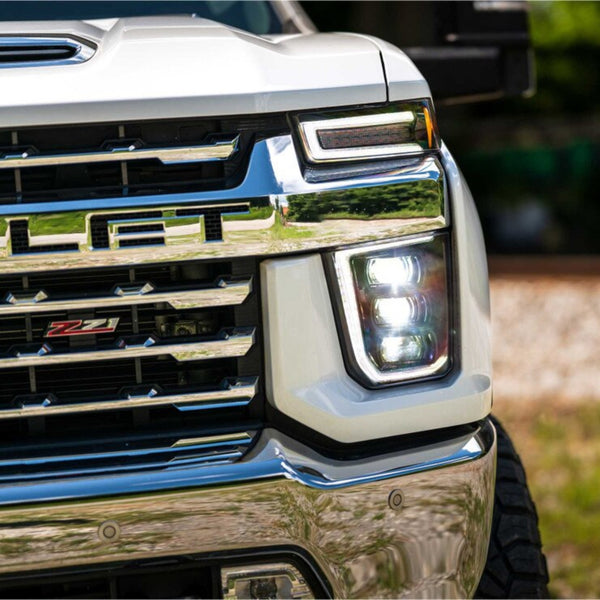

💡 Morimoto XB Headlights with Crisp Projector Output
-
🛠 Custom Built & Tested by Hand for Quality + Longevity
-
🔧 Plug-and-Play Install w/ Optional Signal Wiring
-

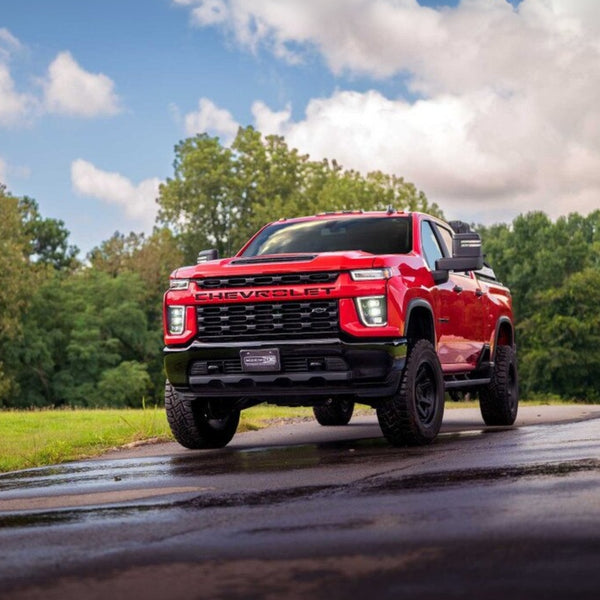

🚛 Perfect Fit for 2020–2023 Silverado HD (w/ 2024 trim notes)
🔥 Upgrade your front-end with full-color control and industry-leading projector performance—all in one package.
💡 What Are Flow Series Headlights?

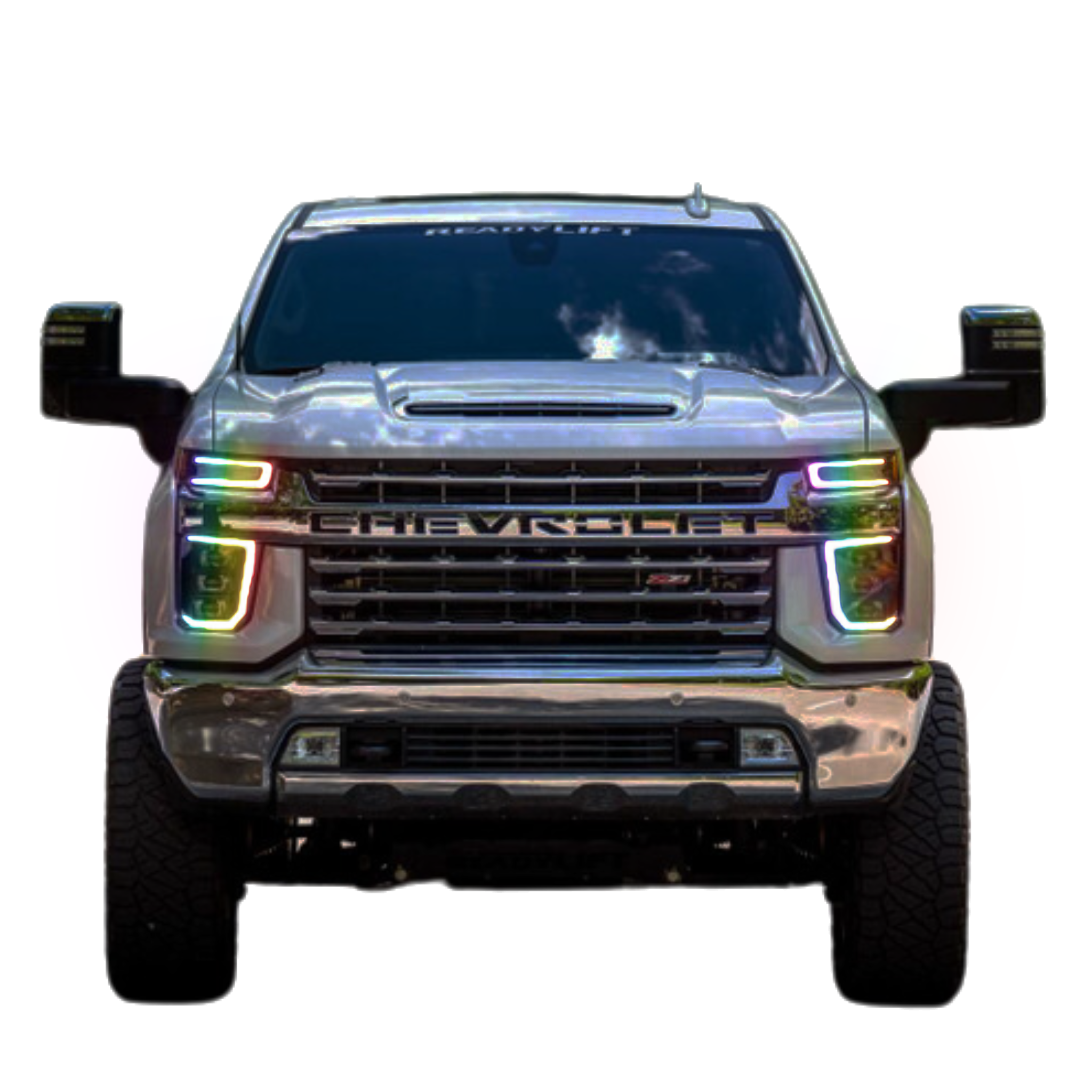

These are OEM Morimoto XB Headlights retrofitted with our in-house Flow Series DRL boards and halos, giving you bold, animated lighting effects that you can completely control.
-
🎨 Choose from millions of RGB colors and motion patterns
-
🔄 Dynamic effects: chasing, strobe, breathing, and more
-
🎵 Sync to music, adjust speed, brightness, and timing
-
📱 Dual control via Bluetooth smartphone app + remote
🧰 Installation Overview
Install Time: 1–4 hours
Difficulty: Moderate (DIY-friendly)
Tools Needed: Basic hand tools
-
Plug-and-play install for headlight functionality
-
Connect LED controller to battery or power source
-
Optional turn signal animation via included T-taps
-
2024 LT, Custom, or WT models require LF546H harness (sold separately)
-
Not compatible with 2024 High Country, ZR2, or LTZ trims
📄 20-23 Chevrolet Silverado HD Headlights Install Guide PDF
🚘 Vehicle Compatibility
This headlight upgrade fits:
-
2020–2023 Chevrolet Silverado HD (2500 / 3500)
-
2024 Silverado HD (LT, Custom, WT) → requires LF546H adapter harness
-
❌ Not compatible with 2024 High Country, ZR2, or LTZ
🔁 OEM Part Replacements:
GM #84738616, 84738617, 85149467, 85133185, 85133187
✔️ Uses genuine Morimoto XB housings for perfect beam pattern and long-term reliability.
📦 What’s Included
-

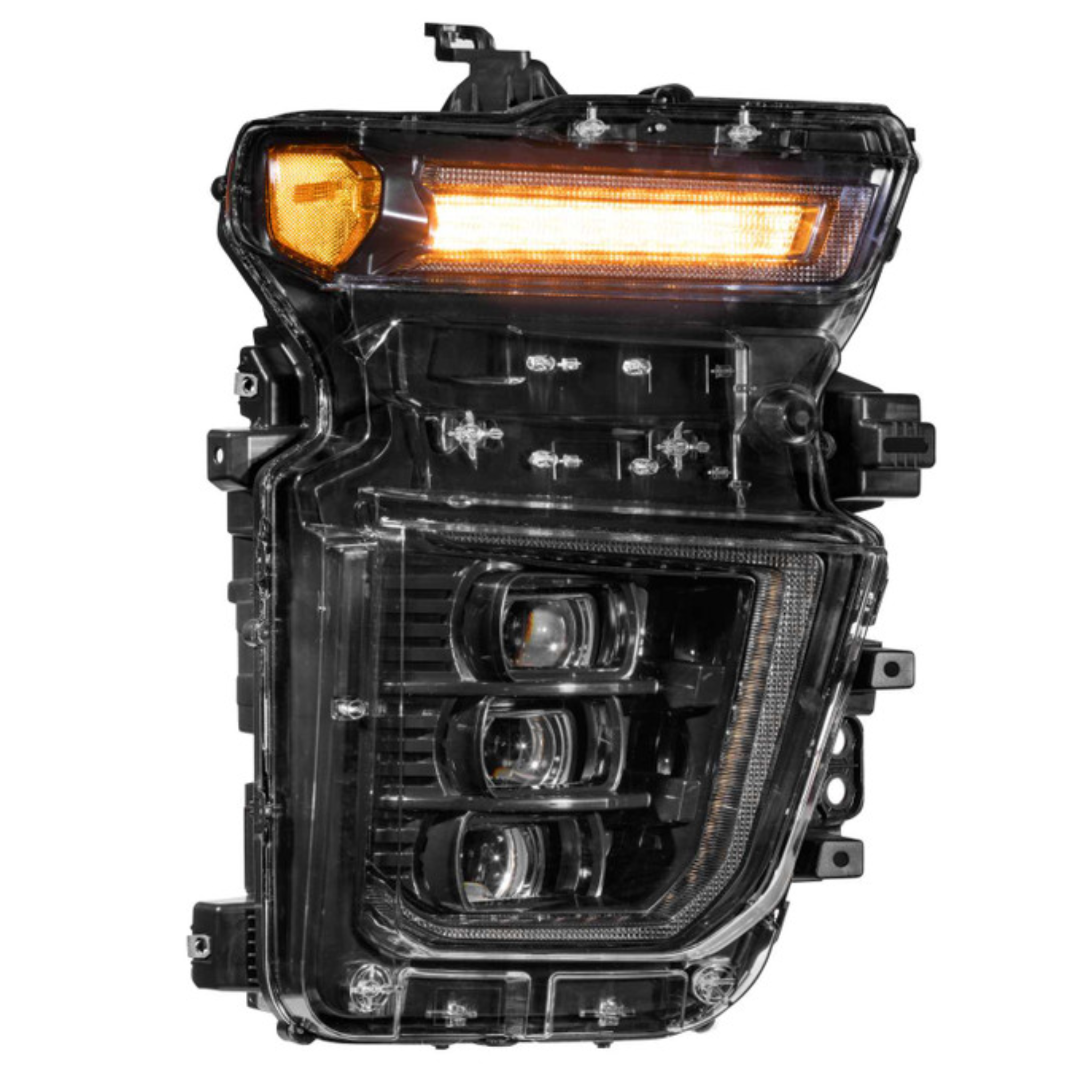

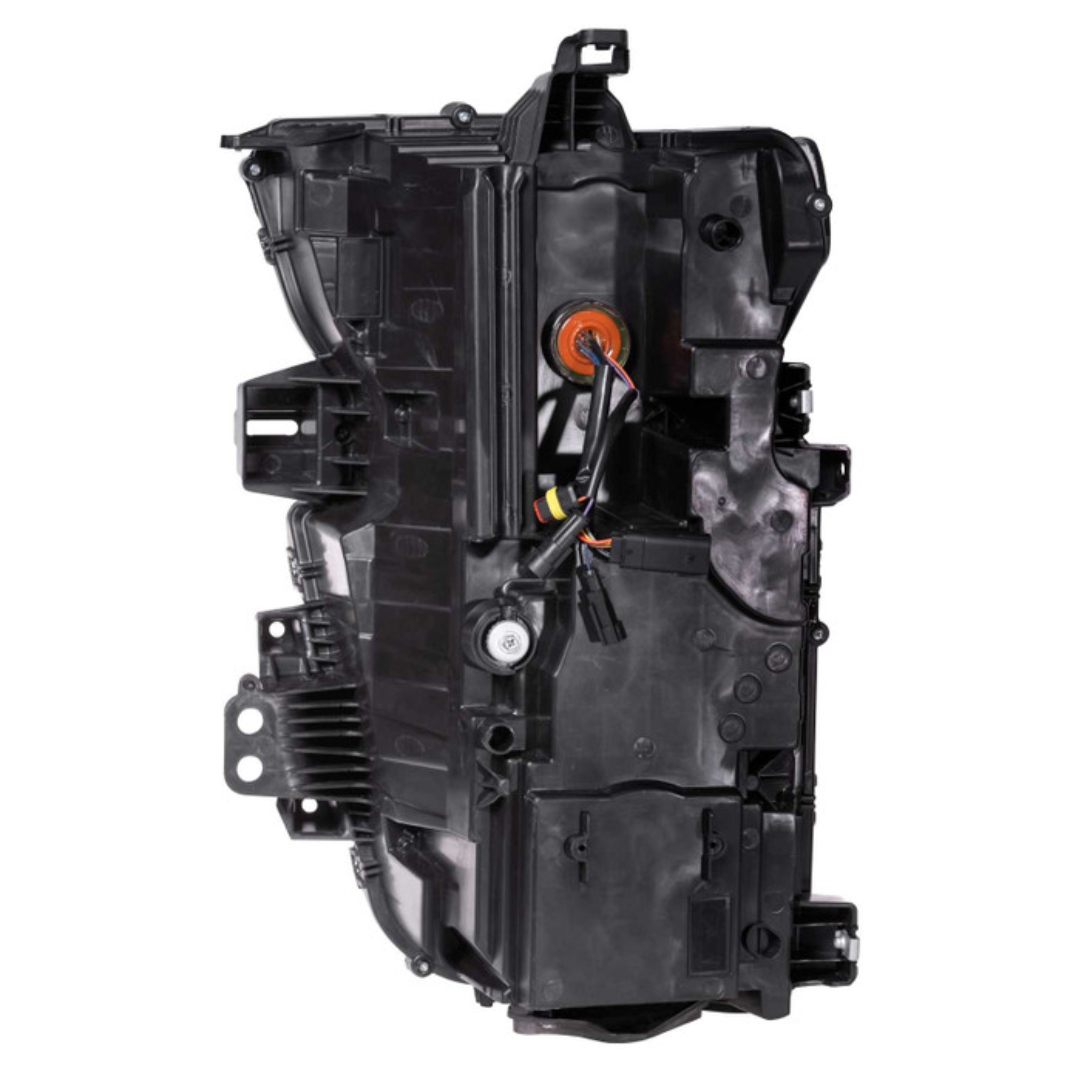

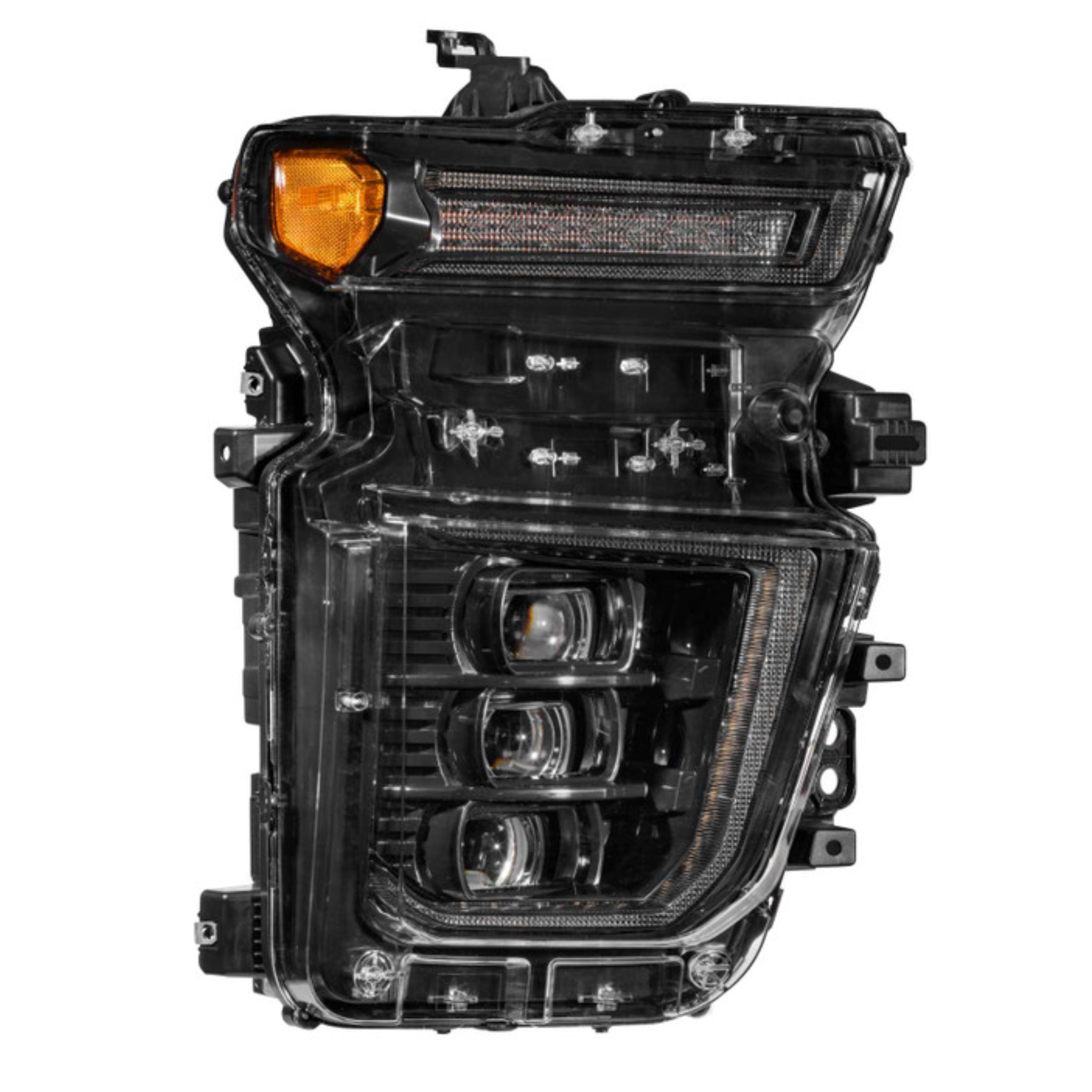

1 Pair of Custom Multicolor Morimoto XB Headlights (Driver + Passenger)
-
Flow Series Hybrid LED Controller (Bluetooth + Remote)
-
Install Guide (PDF)
-
Quick Splices + T-Taps for Signal Integration
-
RGB Halo Kits Decals & Stickers
🔍 Specs & Performance
-
Light Output: ~3400 lumens via XB projector system
-
Beam Pattern: Sharp horizontal cutoff with wide spread
-
LED Lifespan: ~10 years under normal use
-
Assembly Process: Cleaned, sealed, tested, and hand-built in the U.S.
🛡️ Warranty & Support
-
✅ 1-Year Warranty from purchase date (return may be required)
-
🛡️ Optional 1–3 Year EXTEND Warranty available at checkout for extra coverage
-
💬 U.S.-based support for install help or troubleshooting
🚚 Build Time & Shipping
Each set is custom built-to-order by experienced technicians. Lead time info:
-
📦 Average Ship Time: 1–3 weeks from order
-
🚛 Faster than industry standard (5–10+ weeks)
-
📅 “Get It By” date shown on product page if prebuilt stock is available
-
📨 If delay exceeds 3 weeks, you’ll receive a personal ETA update
