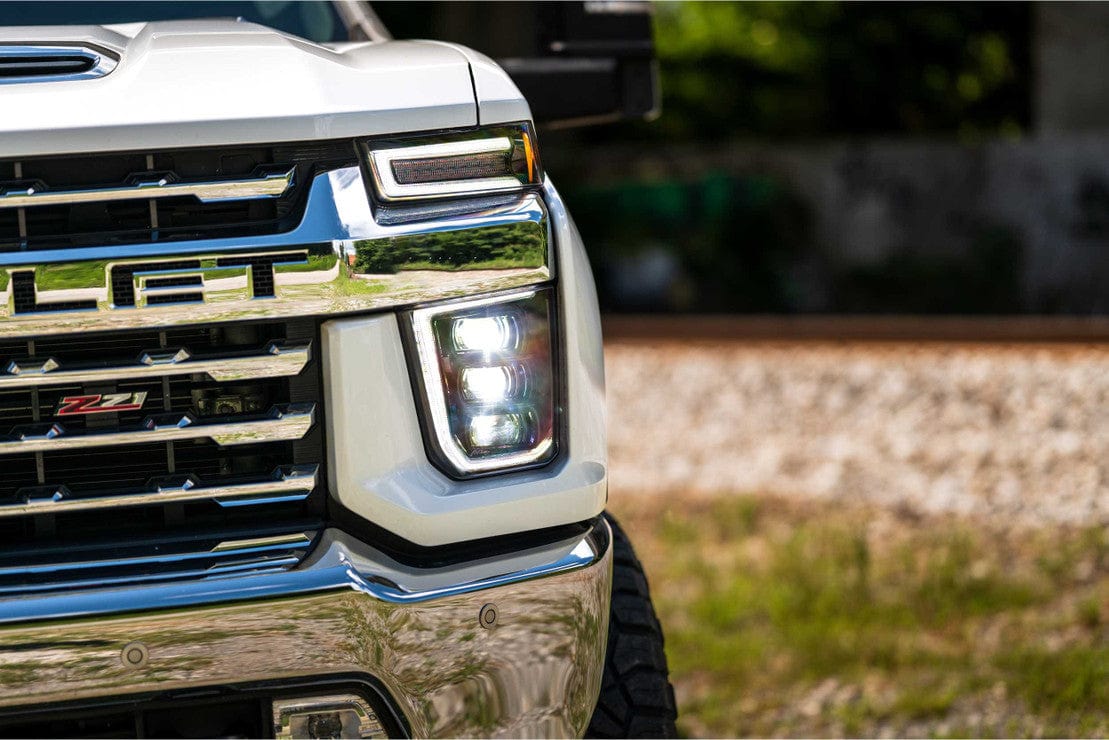

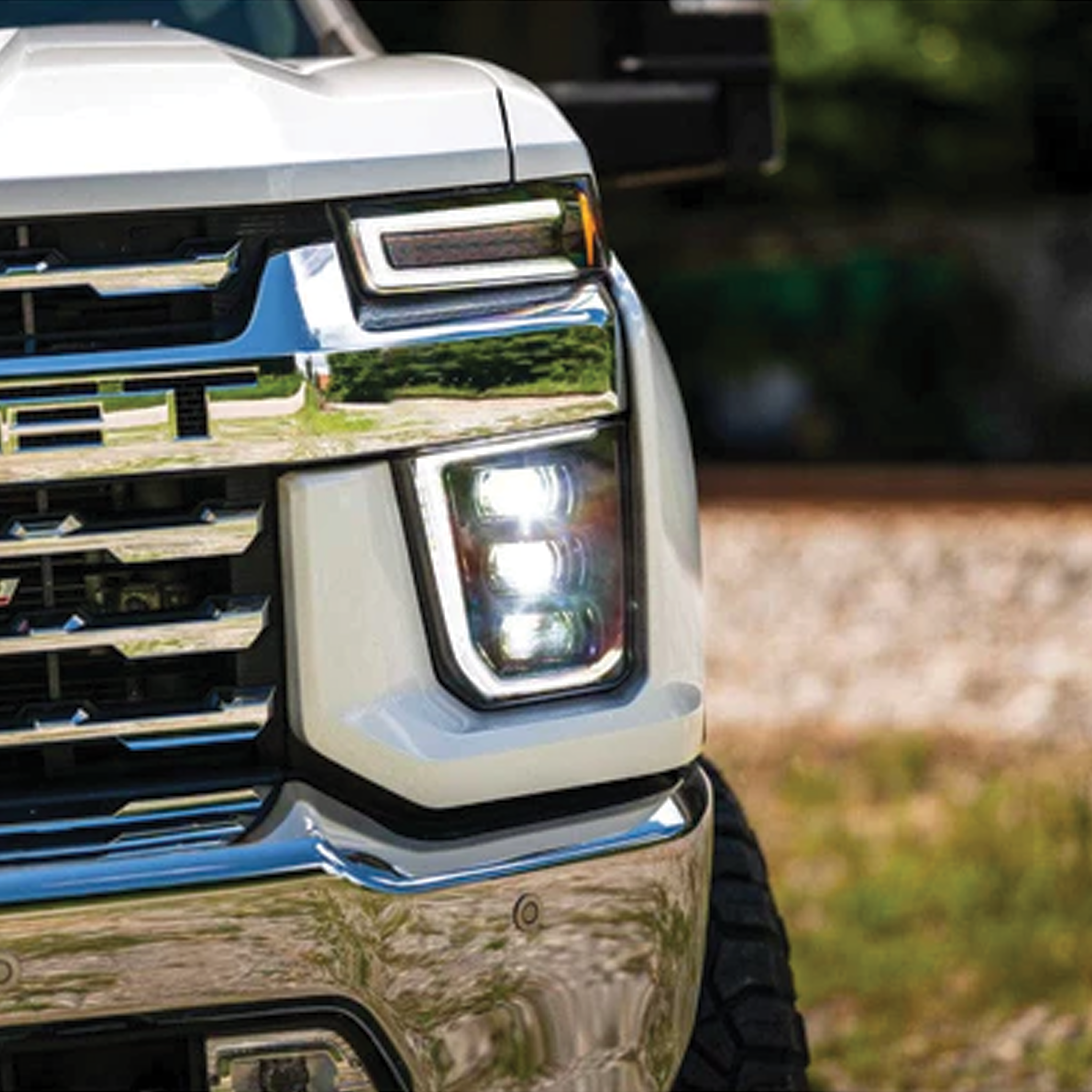

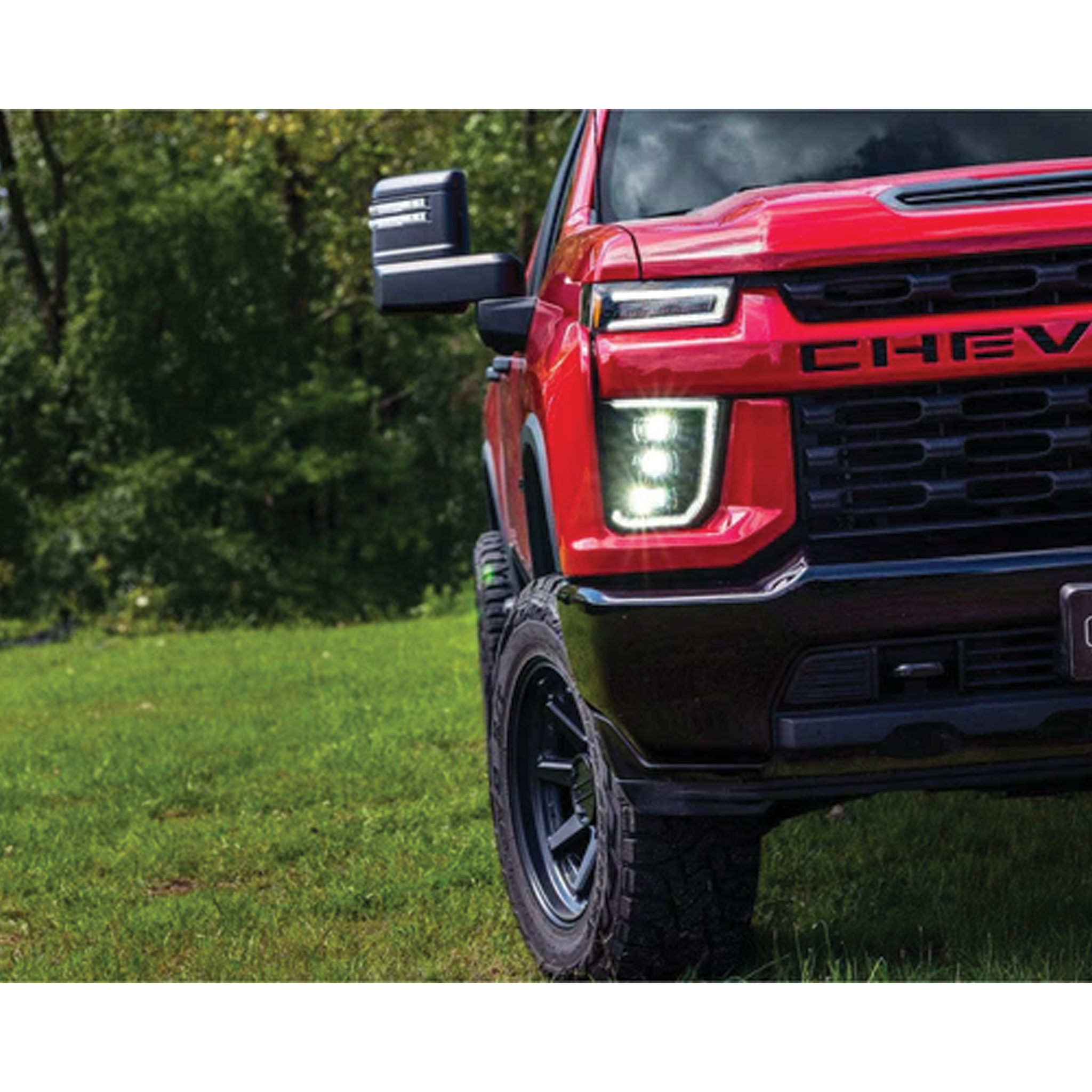

Chevrolet Silverado HD: LED Headlights (2020 - 2024) | XB
Adapter Harness:
Adapter Harness
Add Halo Shield™ Extended Protection
Extends LED and electrical failure protection.
What’s Covered?

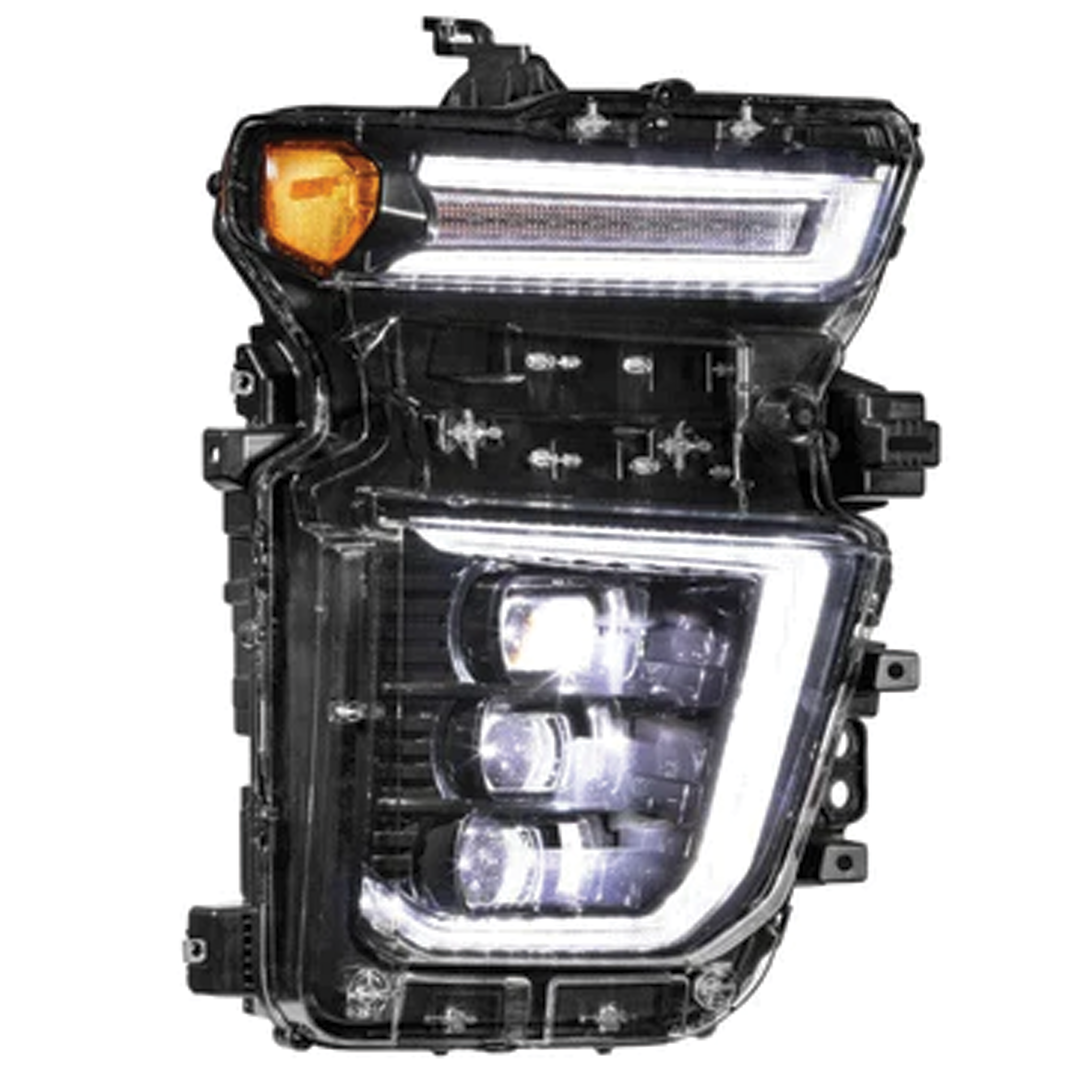

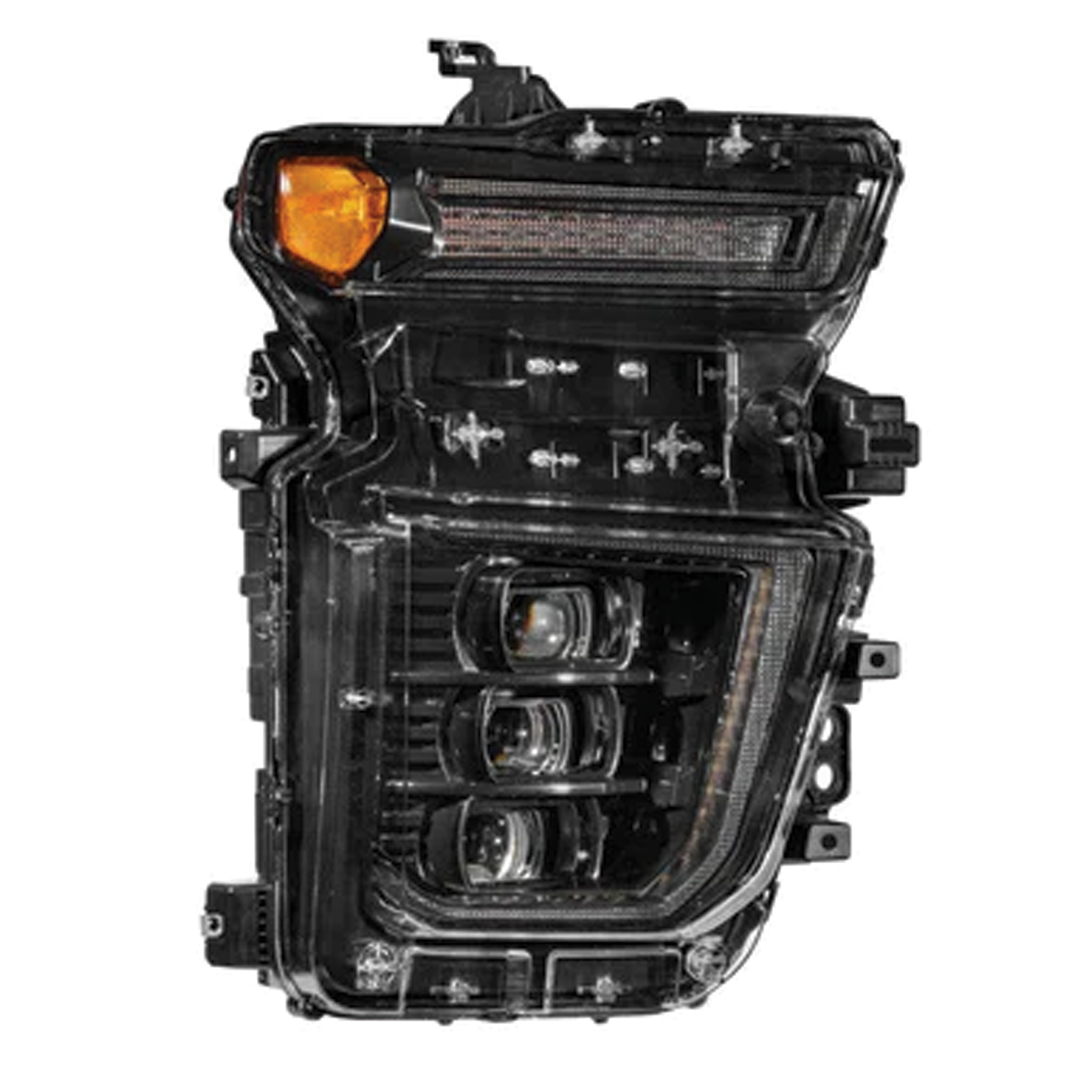

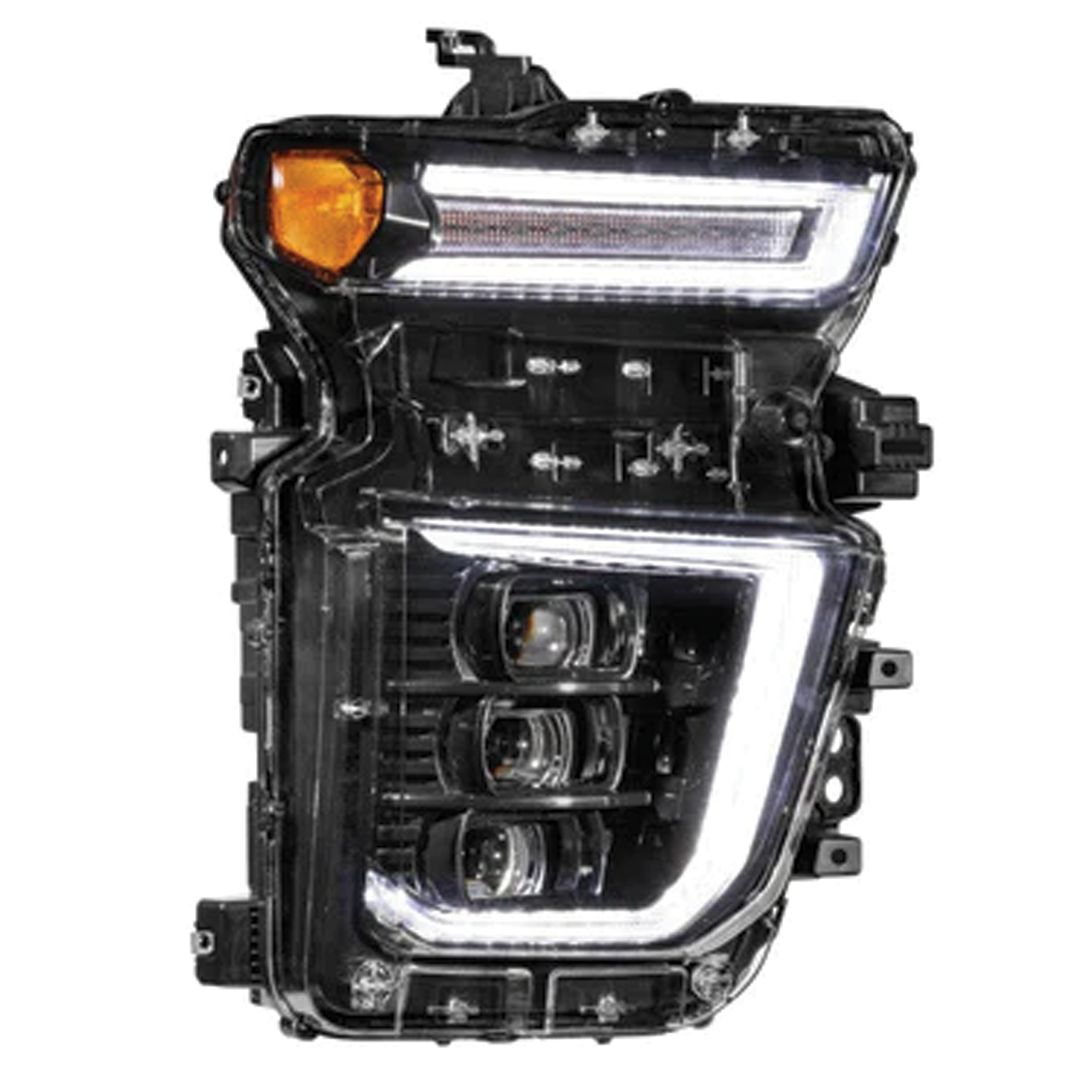

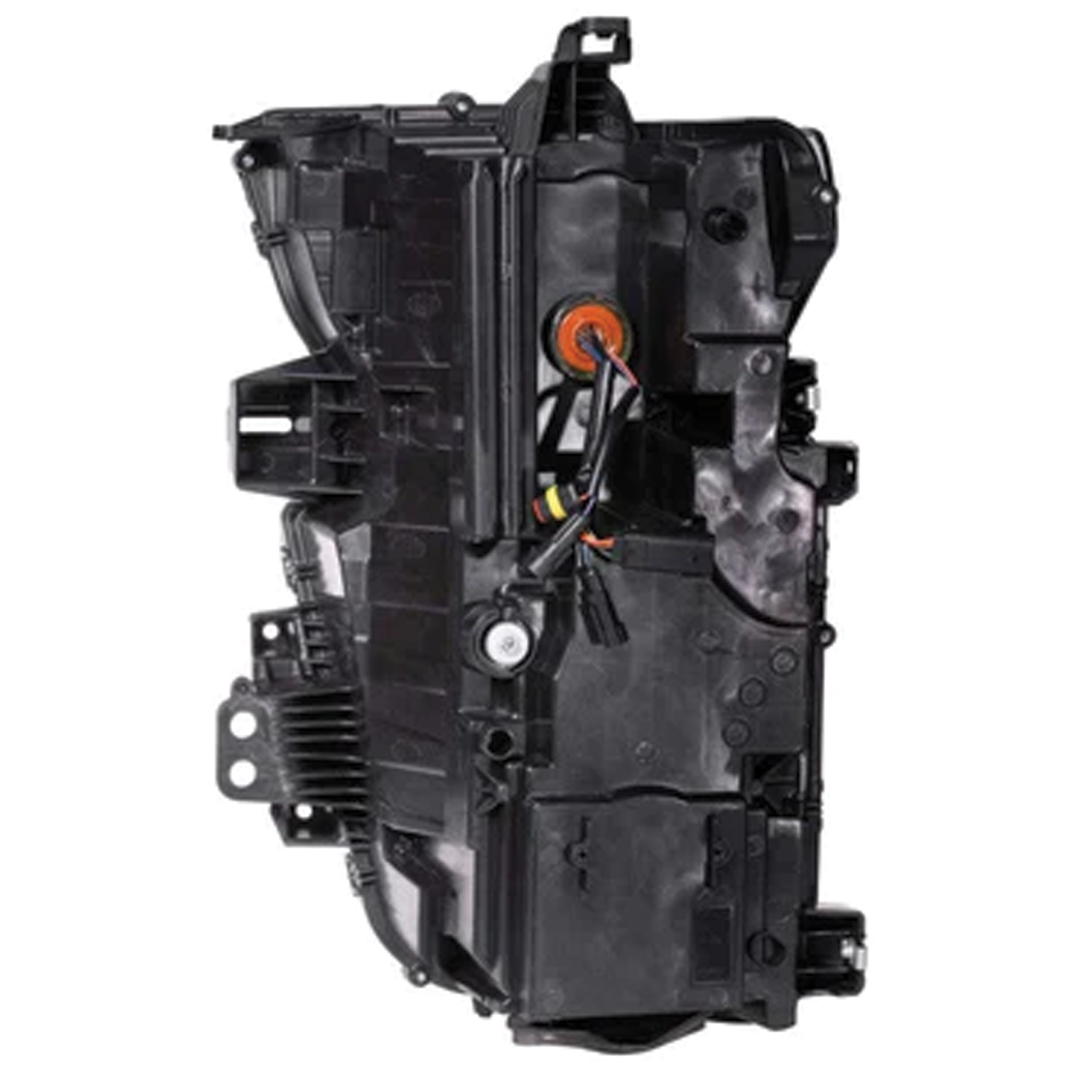

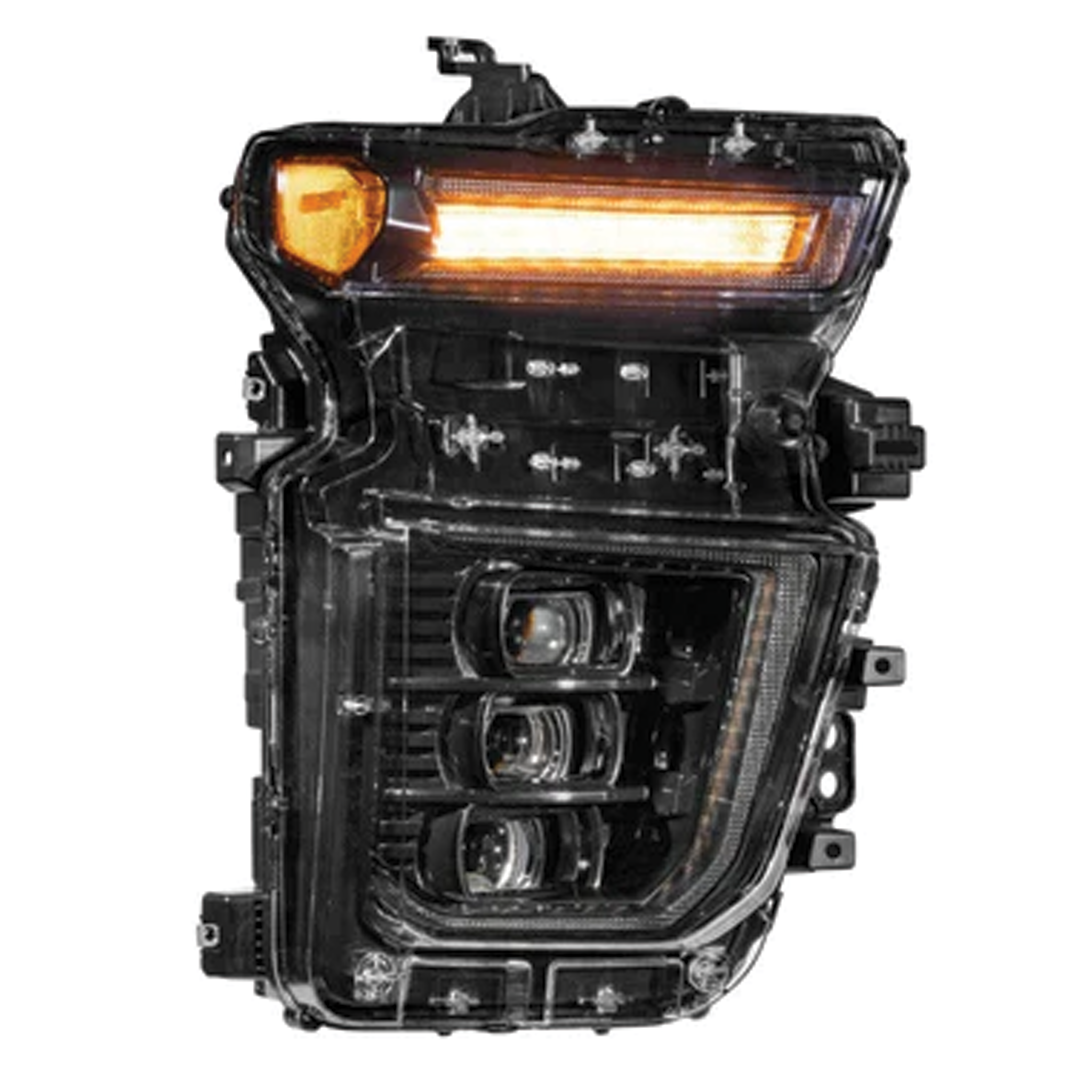

The Morimoto XB LED Headlights for 2020+ Silverado HD trucks – the ultimate upgrade for your vehicle's lighting system. These headlights offer exceptional performance and style, featuring a well-defined beam pattern with impressive width and intensity, ensuring superior visibility on the road at night. Constructed with high-quality materials, these headlights are built to last, with a UV-coated polycarbonate lens for long-term durability. The PPS plastic housing is lightweight and robust, while die-cast aluminum heat-sinks provide efficient cooling for the Osram LED chips that power the lights. Installation is a breeze with the plug-and-play design, as they seamlessly connect to your factory connectors without the need for modifications. The sequential LED daytime running lights are powered by Osram LEDs, ensuring optimal visibility during the day, and the sequential turn signals are a modern upgrade over traditional options. With DOT approval, these headlights meet and exceed all safety regulations, making them a reliable and compliant choice.
BENEFITS
- Exceptional Performance: Well-defined beam pattern for superior night visibility.
- Durable Construction: UV-coated polycarbonate lens, lightweight housing, and efficient heat-sinks.
- Easy Installation: Plug-and-play design, no modifications needed.
- Modern Styling: Sequential LED daytime running lights and upgraded turn signals.
- DOT Approved: Compliant with safety regulations for peace of mind.
WHAT’S INCLUDED
-

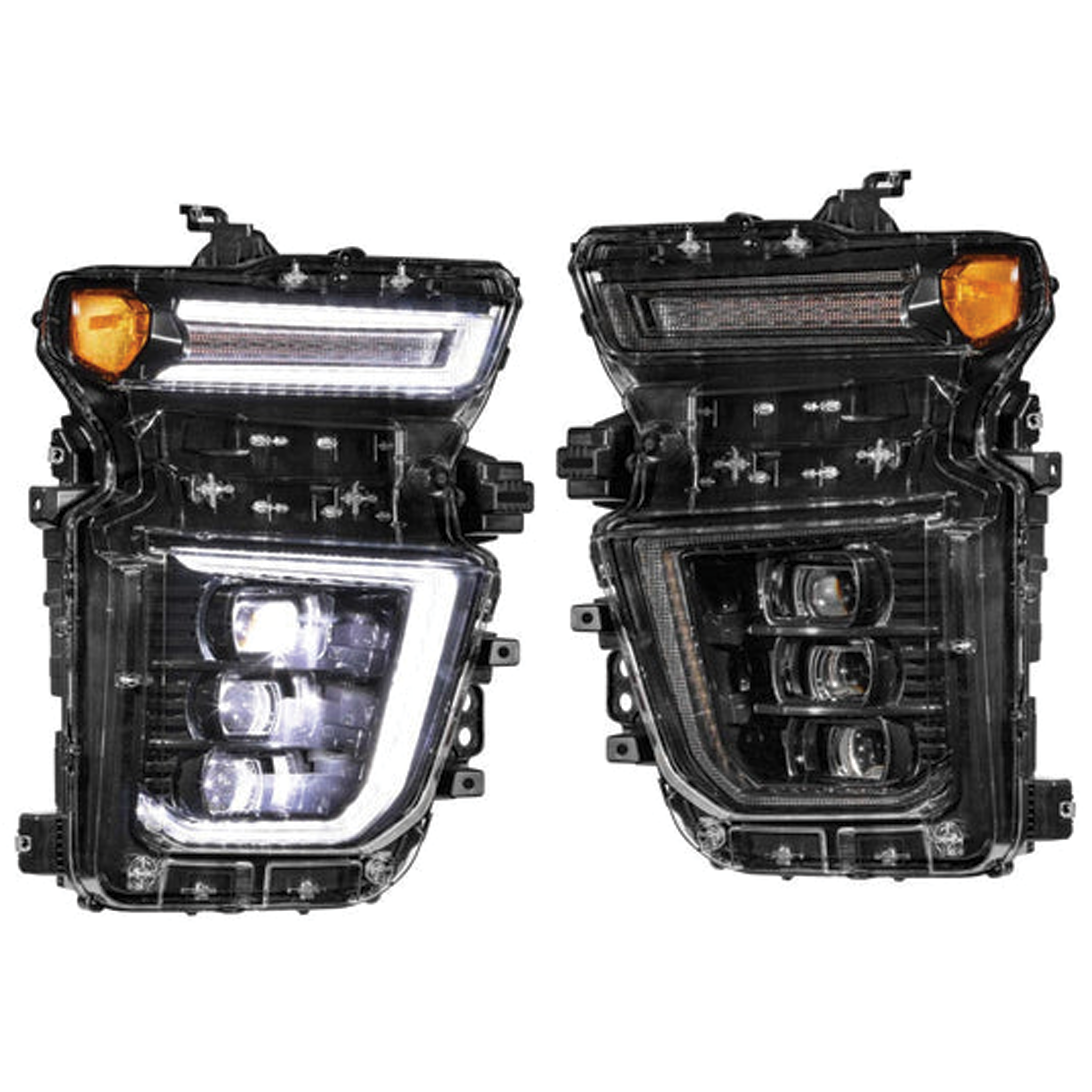

Headlights: 2x (One Pair) 2020+ Silverado HD XB LED Headlights
-
Wiring: Plug and Play Harness, Fuse Tap
WARRANTY INFORMATION
This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
COMPATIBILITY
-
Chevrolet Silverado HD: 20-24* (*2024 LT, Custom, or Work Truck require optional LF546H harnesses. Not compatible with 2024 High Country, ZR2, or LTZ trucks)
-
Replaces GM Part #: 84738616, 84738617, 85149467, 85133185, 85133187
-
NOTE: Canadian trucks may need to disable OEM DRL. These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
COMPLIANCE
DOT, SAE, FMVSS108 Standards
TECHNICAL SPECIFICATIONS
-

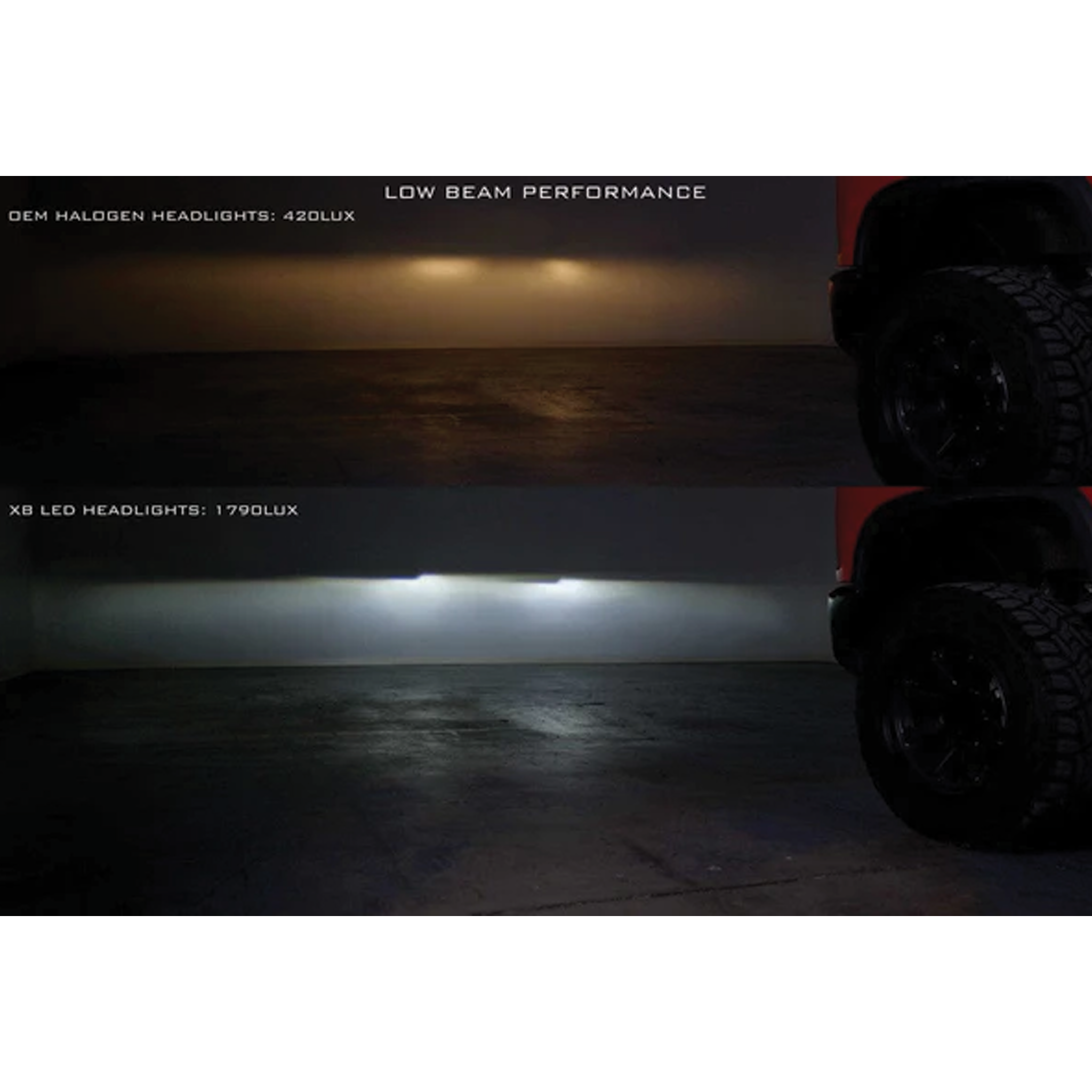

Low Beam Performance: +326% (420lux [Halogen] to 1790lux)
-

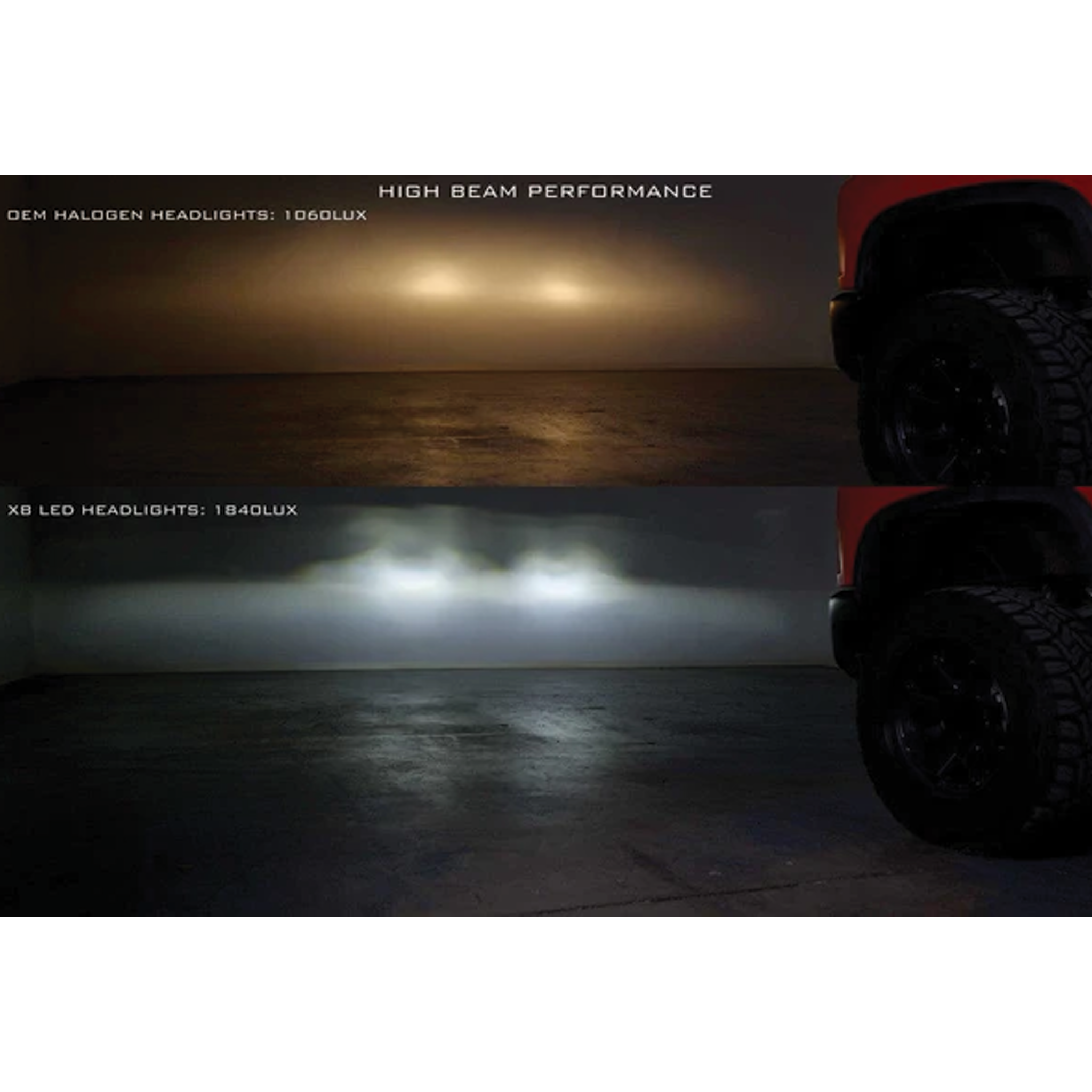

High Beam Performance: +74% (1060lux [Halogen] to 1840lux)
-
Traffic Pattern: LHD Only
-
Functions: DRL (White), Turn, Parking, Low, High
-
Bezel Color: Gloss Black
-
Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
-
Optic: Kuria Optic Bi-LED
-
UV Coating: Momentive UVHC3000
INSTALLATION DOCUMENTS
