Ford LED Headlights F150 (2009–2014) SVT Raptor (2010–2014)| XB Evo Hybrid
Quick details Install, fitment & included items
- Install: Follow the product-specific installation guide.
- What's Included: 1 pair of XB Evo Hybrid headlights, halogen/HID adapters, DRL harness, mounting clips, connector caps, and fuse-tap hardware. Optional upgrades sold separately.
- Compatibility: Ford SVT Raptor: 2010–2014; Ford F-150: 2009–2014.
Add Halo Shield™ protectionOptional
Extends LED protection + peace of mind.
Learn more
Price is per item. Coverage quantity follows the covered item in your cart.
Questions?
Overview

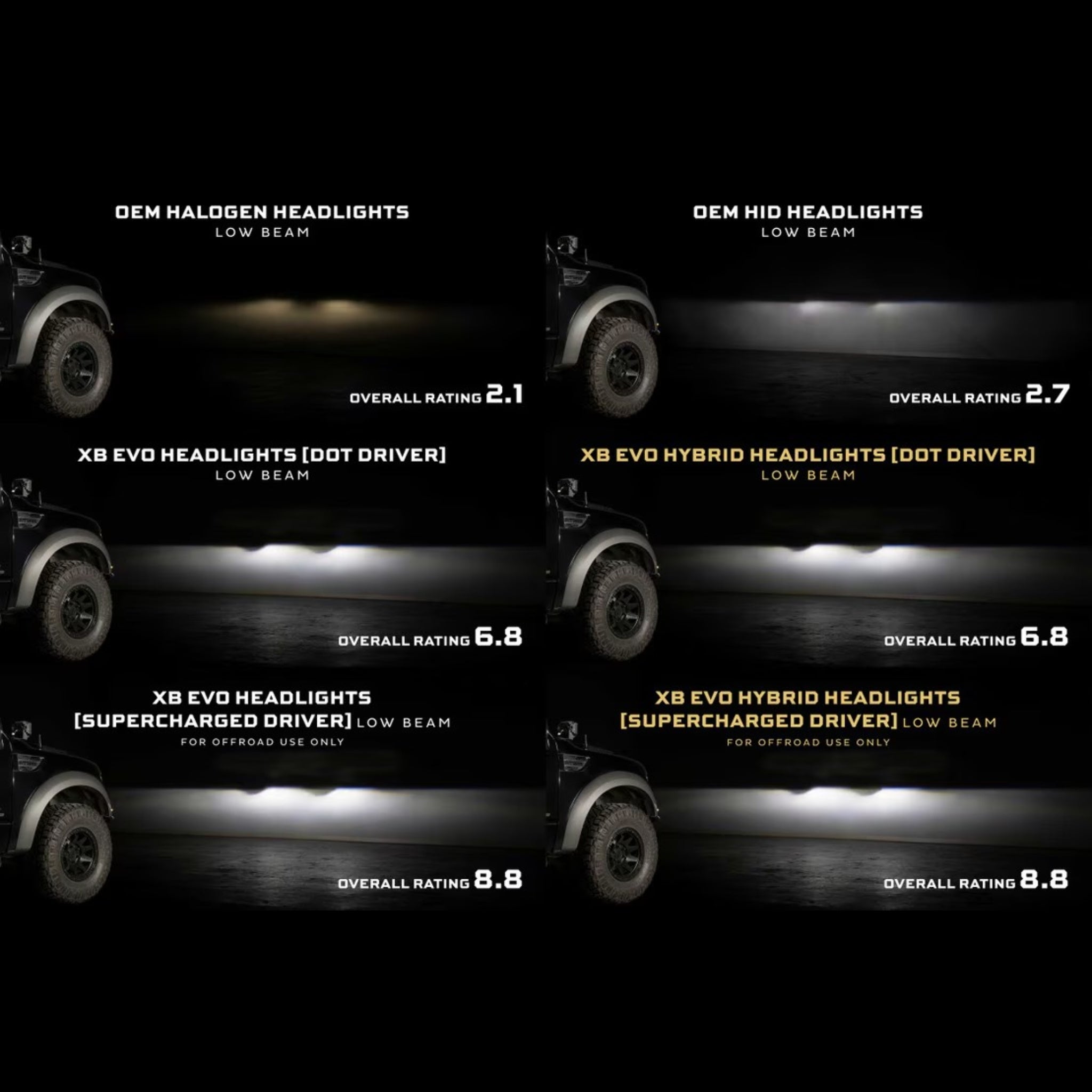

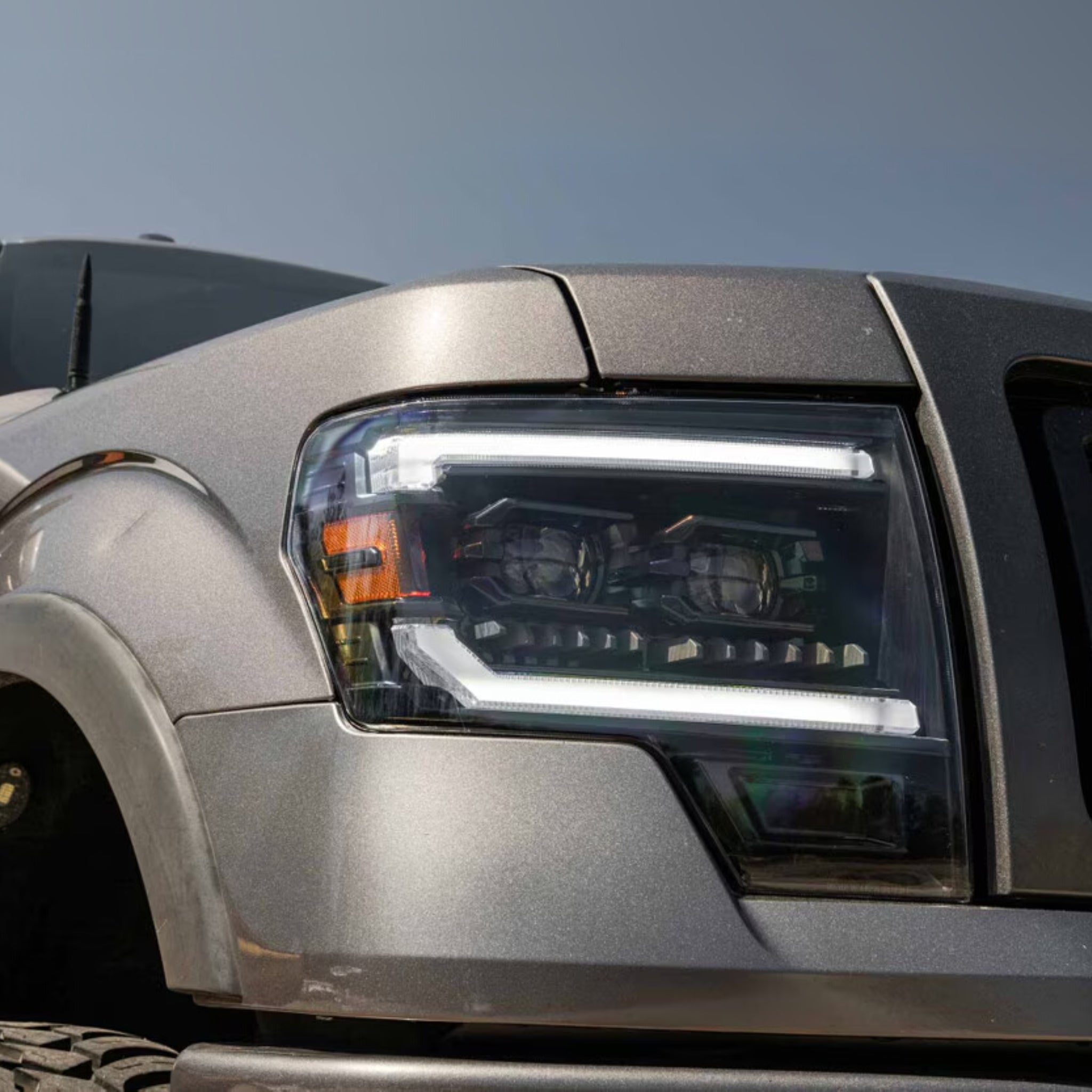

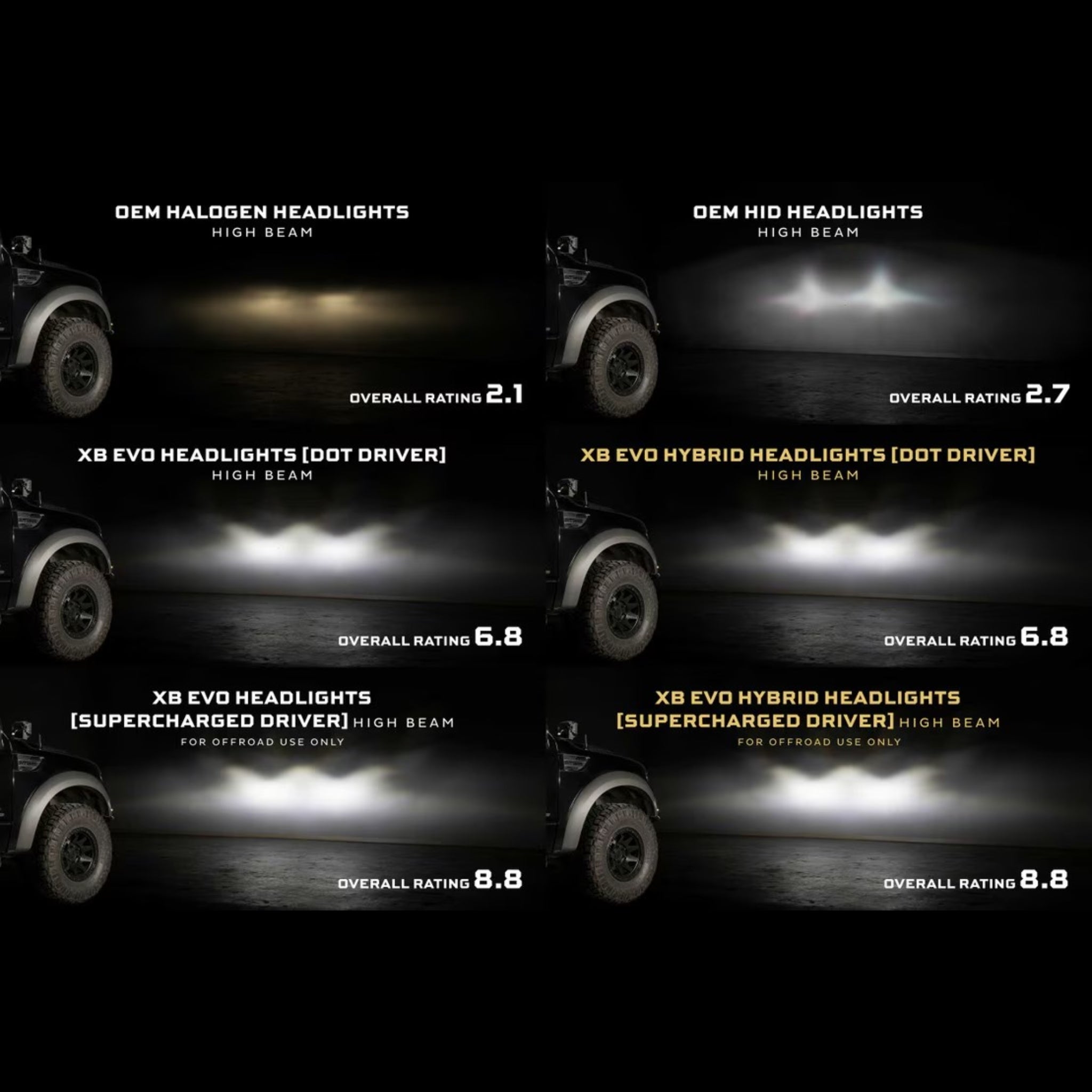

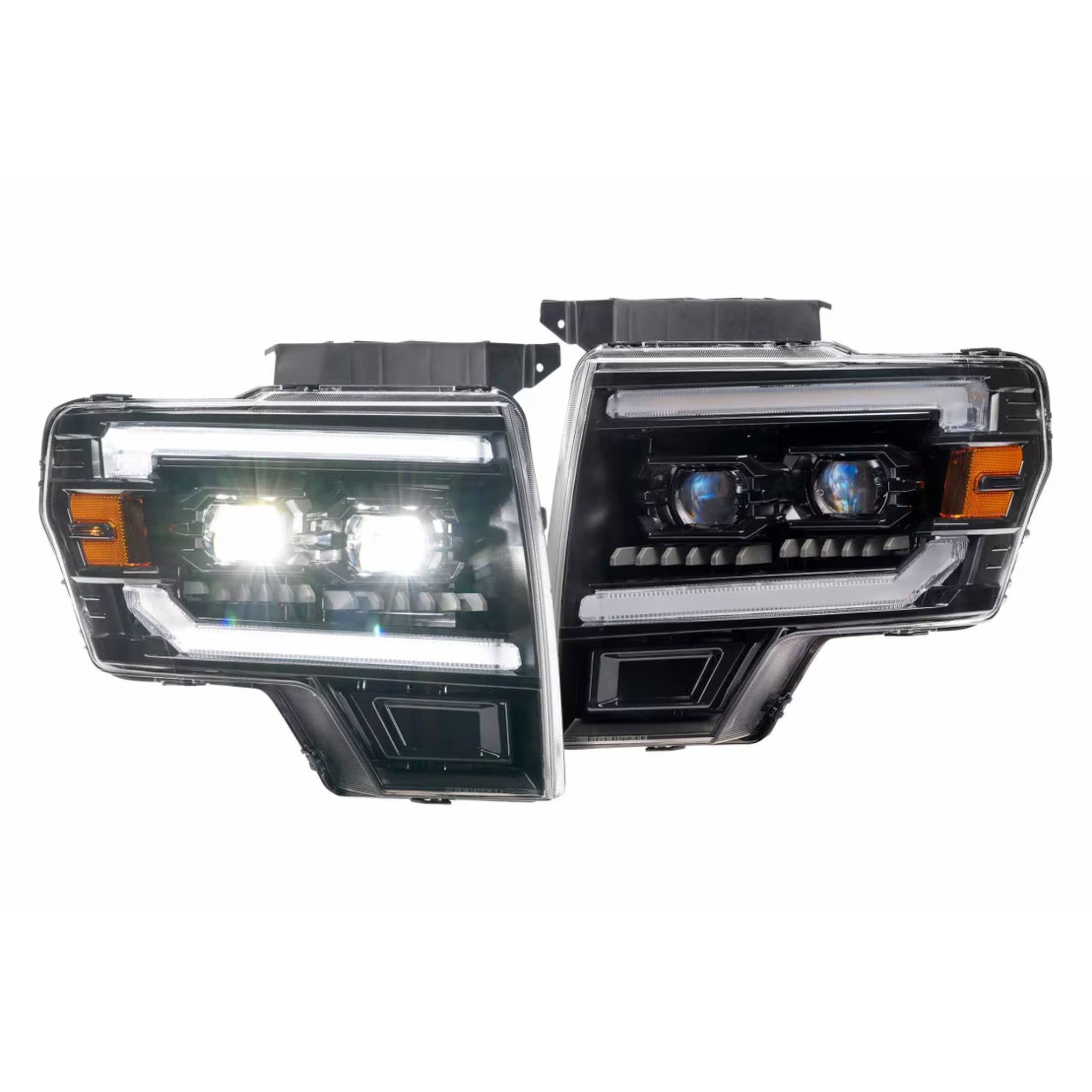

The all-new XB Evo Hybrid headlights are a showcase of everything Morimoto is made of at a price that everybody can afford. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Here, the F-150 Hybrid headlight utilizes the same Bi-LED projectors found in the higher end XB Evo model to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. All optics are powered by the latest OE-grade automotive LEDs from Nichia in Japan. XB Evo Hybrid headlights aren't cheap, but they are built to a high standard and should easily last the life of your F-150! We're proud to stand behind the product with an industry-leading five-year warranty.
Compatibility
- Ford SVT Raptor: 2010--2014 (factory halogen & factory HID/xenon equipped models)
- Supercharged Drivers: LF2-DRVSC12 (Optional, sold separately)
- Replaces Ford Part #: FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008EB, DL3Z13008EC, FR560B1A12SD6V, DL3Z13008DB, DL3Z13008FB, DL3Z13008BB, DL3Z13008CB
- Note: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
- Ford F-150: 2009-2014 (all trim levels, factory halogen & factory HID/xenon equipped models)
- Trim Levels: XL, STX, XLT, FX2, FX4, Lariat, King Ranch, Platinum, SVT Raptor, Limited
Manufacturer fitment reference
Installation
INSTALLATION DOCUMENTS

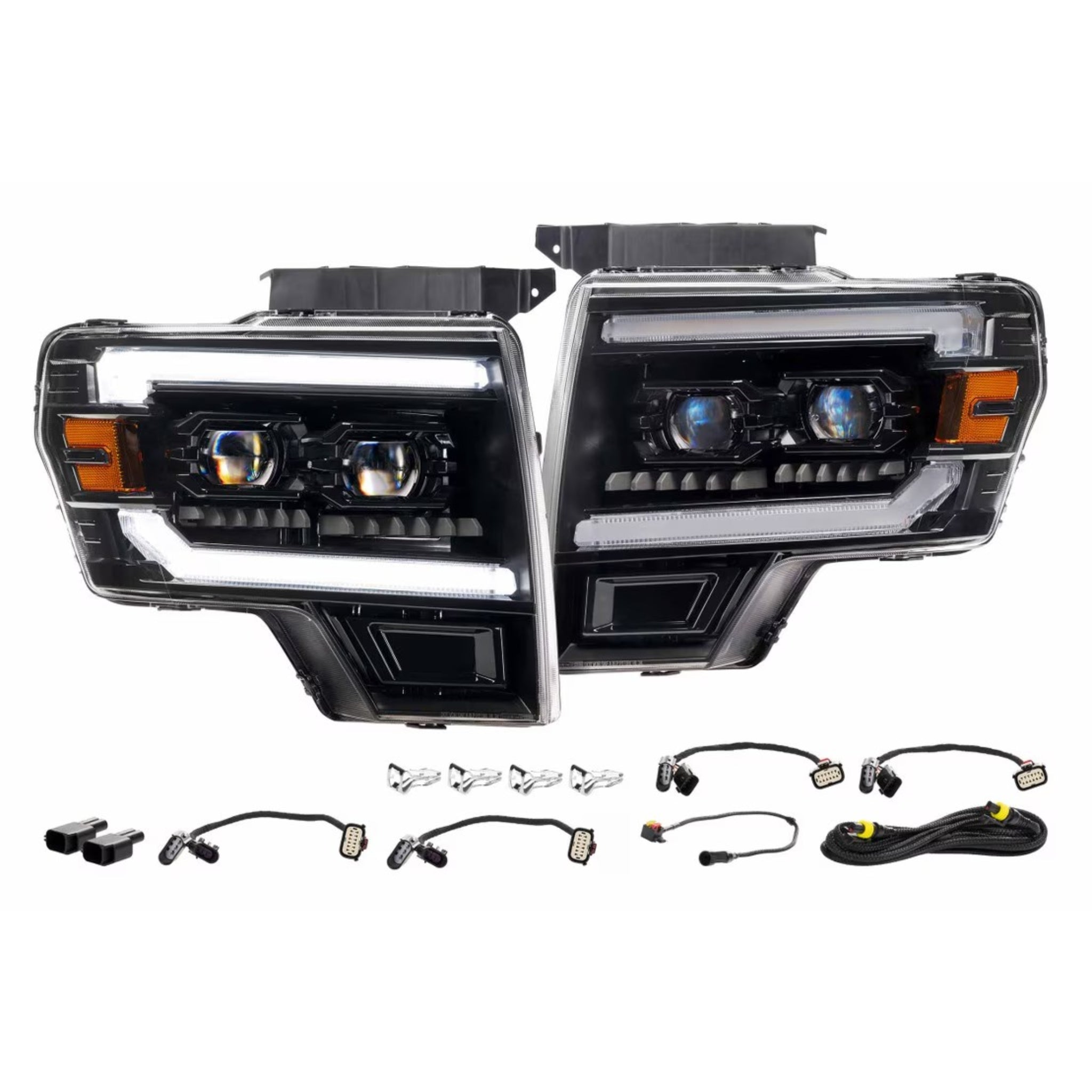

What’s Included
-
Headlights : 1x Passenger Side / RH XB Evo Hybrid Headlight, 1x Driver Side / LH XB Evo Hybrid Headlight
-
Accessories : 2x Halogen Adapters, 2x OEM HID Adapters, 1x DRL Harness, 4x Mounting Clips, 2x Side Marker Connector Caps, Fuse Tap Hardware
-
Optional Supercharged Drivers : LF2-DRVSC12 Drivers
-
Optional Protective Film : Lamin-X Clear Film custom fit for LF2-506Y
Specifications
-
Traffic Pattern : LHD / Right Hand Traffic Only
-
Output (Standard Drivers) : DOT / FVMSS108 Compliant (LB2V and UB2)
-
Output (Supercharged Drivers) : +30-50% (Non-Compliant)
-

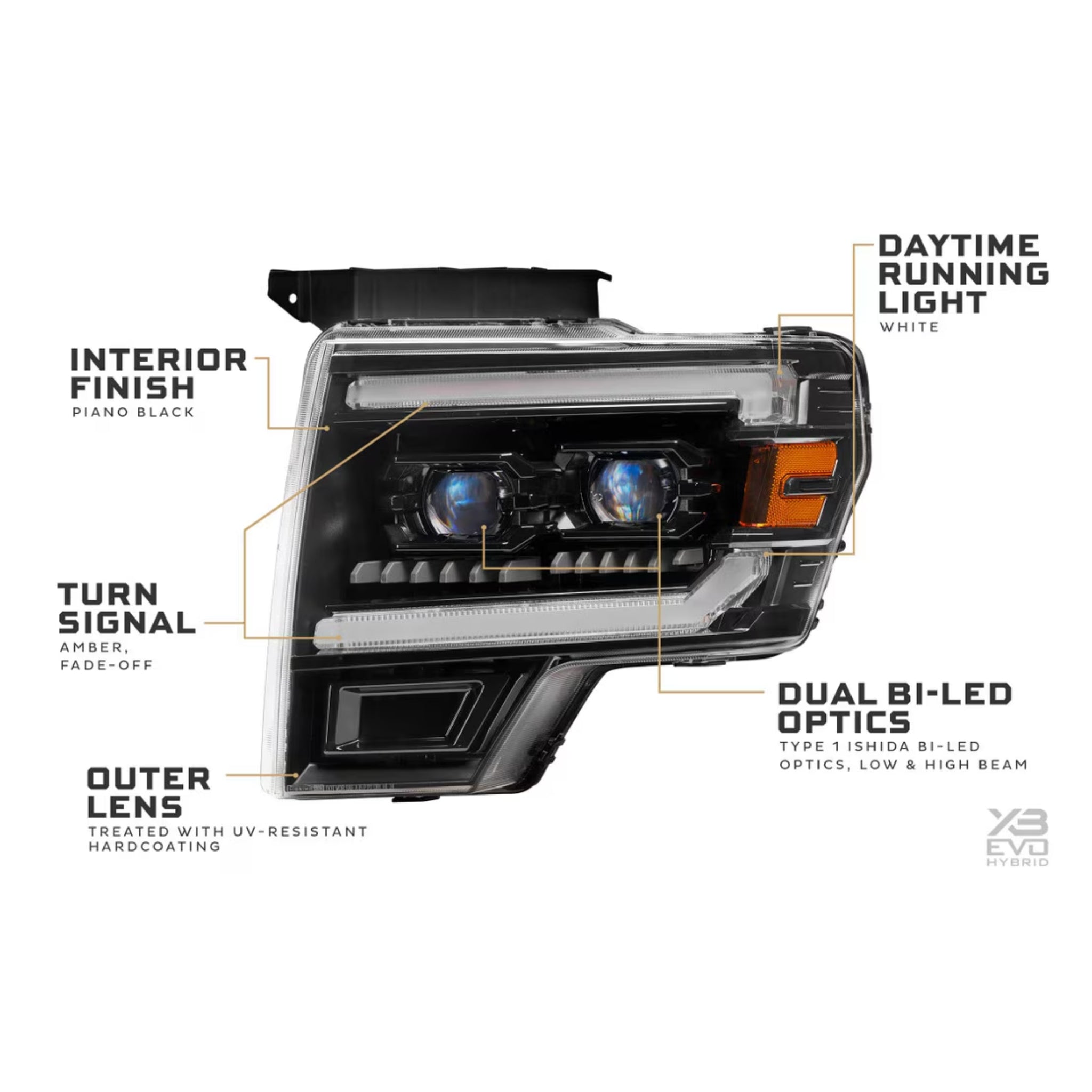

Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
-
Functions : Low Beam, High Beam, Parking Light, Turn Signal, and DRL
-
Turn Signal Mode : Instant-On / Fade-Off
-

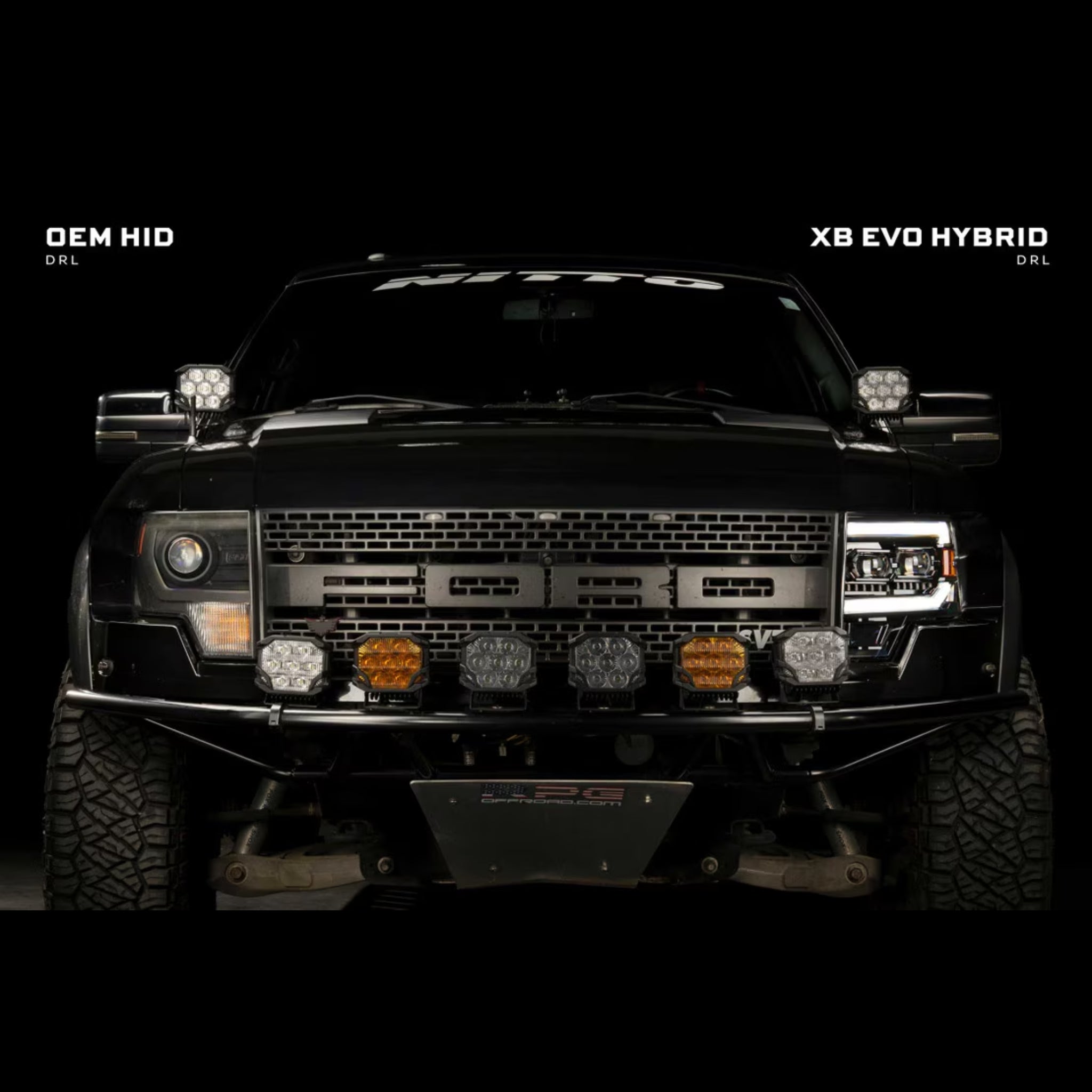

DRL Color : White
-
DRL/Signal Optics : Glass-like 3D Optics
-
Internal Finish : Piano Black w/ contrasting textures
-
Side marker : Amber side reflex reflector (DOT compliant)
-
Wiring : Adapters Included for OEM Halogen and OEM HID inputs
-
Lens Details : Polycarbonate with UV shield hard coating (Exceeds OE Toyota benchmark)
Videos
Support
COMPLIANCE
Meets all DOT, SAE, and FMVSS108 Standards. Note: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.
