This installation reference covers 2016-2018 Chevrolet Silverado DRL Boards. Match the product, vehicle configuration and controller part number before starting.
Part # E5

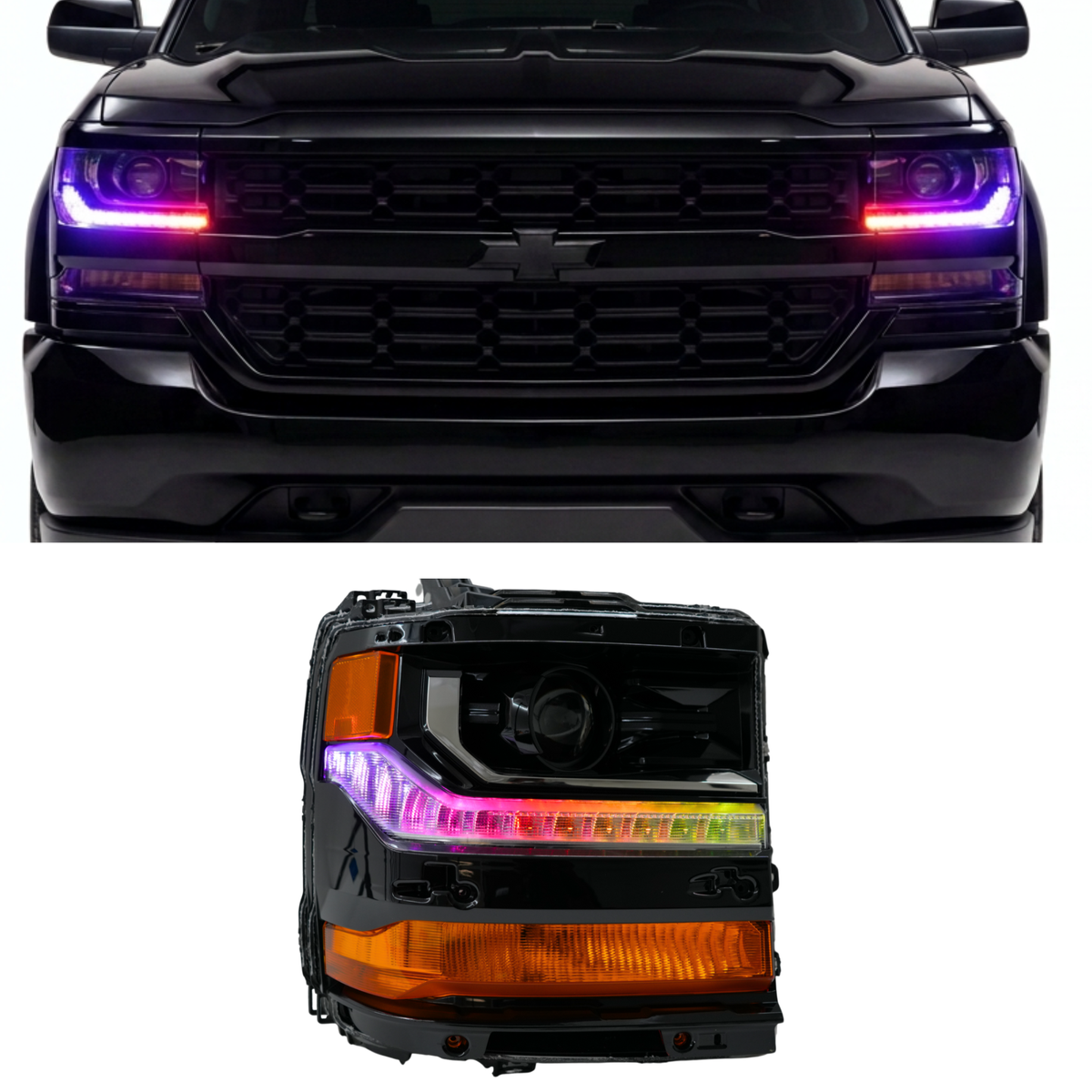

2016-2018 Chevrolet Silverado Multicolor DRL Boards
Step 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation. See the wiring guide that comes with your product or (visit our Wiring Guide (RGBW/ RGBWA and Flow / Color Chasing)
Step 2: Remove your bumper to access headlights.
2016-18 Chevrolet Silverado 1500 Bumper and Headlight Removal Guide PDF
Step 3: Open your headlights. (*Confirm the opening and resealing method for your exact housing before following the video below)
Step 4: Install your LED Product into your headlights.
We are currently in the process of creating a video installation guide for this product. In the meantime, if you need any assistance during the installation process, don't hesitate to reach out to us. We're here to help!
Step 5: Reseal your headlights (see video above)
Step 6: If you haven't already, wire your LED Product onto your car using the included Flow Series Bluetooth Controller w/ DRL SmartSwitch - Install Guide
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against Chevrolet Silverado Multicolor DRL Boards (2016-2018) Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
Controller and wiring guide · Ask installation support · Browse lighting guides
