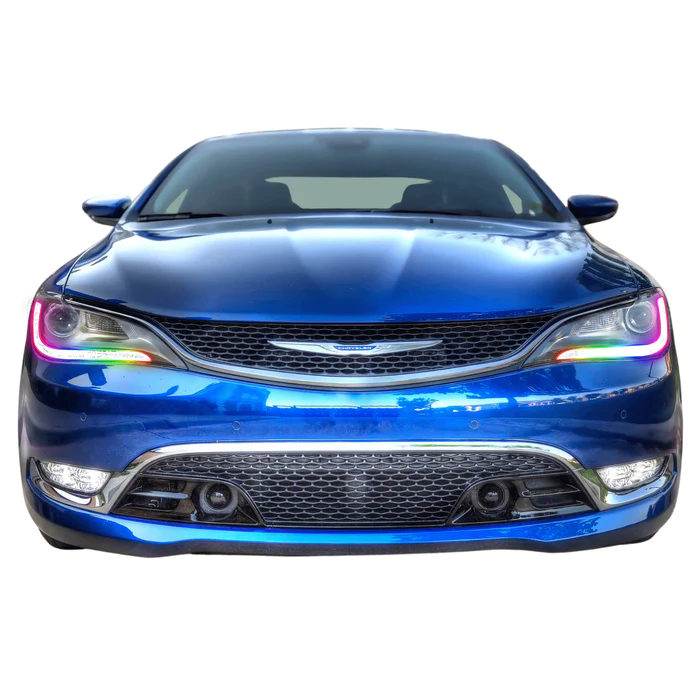

This installation reference covers 2015-2017 Chrysler 200 Flow Series DRL Boards. Match the product, vehicle configuration and controller part number before starting.
Product Link
2015-2017 Chrysler 200 Headlight DRL Kit – RGB Halo Kits
Install GuideStep 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation. See the wiring guide that comes with your product or (visit our wiring guide (Flow Series, Color Chasing).
Step 2: Remove your bumper to access headlights.
Step 3: Open your headlights. (*Confirm the opening and resealing method for your exact housing before following the video below)
Step 4: Install your LED Product into your headlights.
We are currently in the process of creating a video installation guide for this product. In the meantime, if you need any assistance during the installation process, don't hesitate to reach out to us. We're here to help! In the meantime, please check our General DRL Install Guide and wiring guide.
Step 5: Reseal your headlights (see video above) or click here for full guide.
The video in this article belong to their creators and are used by RGB Halo Kits for instructional purposes. We don't own these videos, and their accuracy isn't guaranteed. If you have concerns about the content, please don't hesitate to get in touch with us. Users agree to these terms by using the videos.
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against 2015-2017 Chrysler 200 Flow Series/Color Chasing DRL Boards Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
