This installation reference covers 2018-2023 Ford Mustang Multicolor DRL Boards. Match the product, vehicle configuration and controller part number before starting.
Part # F17

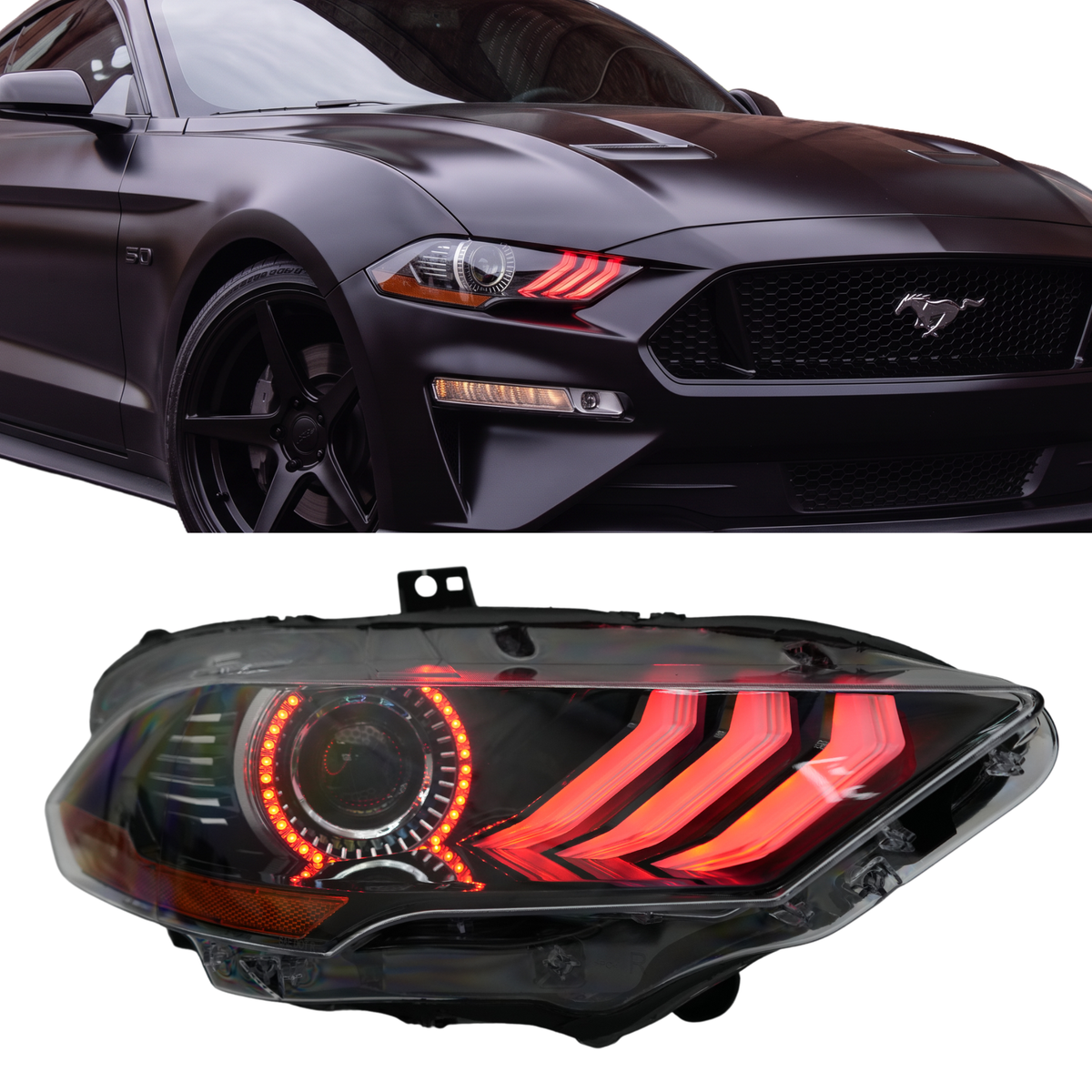

Ford Mustang Flow Series DRL Boards (2018-2023)
Step 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation. See the wiring guide that comes with your product or (visit our Wiring Guide)
Step 2: Remove your bumper to access headlights.
Ford Mustang Bumper and Headlights Removal PDF
Step 3: Open your headlights.
Step 4: Install your LED Product into your headlights.
Step 5: Reseal your headlights (see video above) or click here for full guide
Step 6: If you haven't already, wire your LED Product onto your car using the included wiring guide or see our general wiring guide here. FLOW Bluetooth LED Controller — Wiring & Setup Guide
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against 2018-2023 Ford Mustang Multicolor DRL Boards Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
