- Gives Turn Signal Ability to any 5v Flow Series Halo, DRL Boards, Strips, Emblems, etc.!
- Multi-channel compatibility = rename each controller within the app + control multichannel setups with ease.
- Group and Control several different products & controllers at the same time.
- Save your favorite colors and patterns into easy DIY favorite hotkeys.
- 100% waterproof casing + connectors
- User-friendly app + Handheld Controller

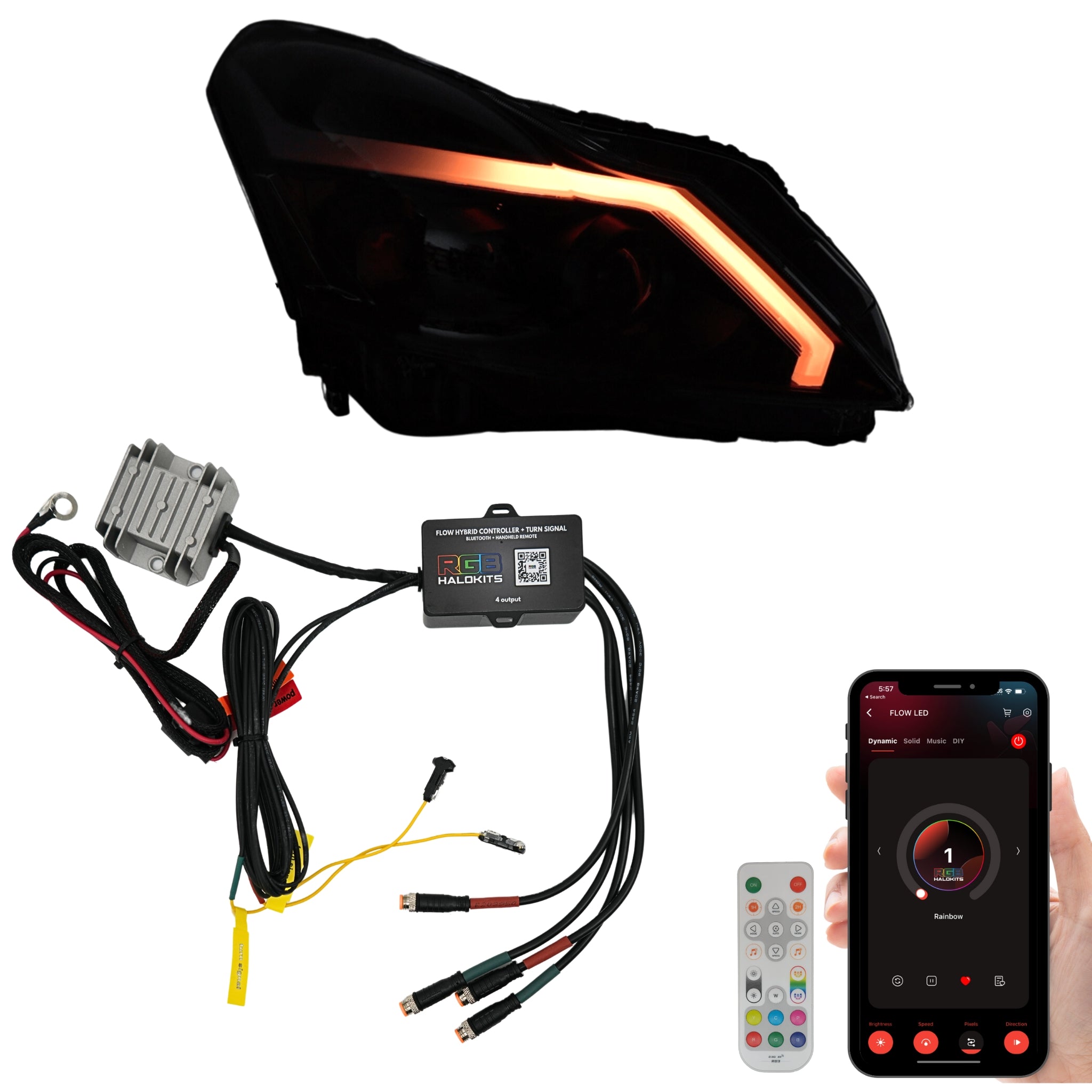

Introducing our newest addition to our controller lineup, the Hybrid LED Controller! Featuring New 2-in-1 Bluetooth + RF Handheld Remote control. The Hybrid LED Controller offers you unlimited control of your LED lighting. With the combination of Bluetooth and RF Handheld Remote connection, no light is too far out of reach.
All-in-one harness + Waterproof Casing + 120 jaw-dropping chasing patterns, full RGBW color slider, and mode selection.
Specs and Details
App: Rgb Halo Kits
RGB HALO KITS – Apps on Google Play
RGB HALO KITS on the App Store
Voltage: 12V DC
Functions: color control + on/off + diming + speed & brightness
Waterproof rating: IP68 100% waterproof
Compatibility & Installation
Compatibility: Works with RGB Halo Kits Products only
Wiring & Installation
- Installation Time: 5-10 min
- Tools Needed: Basic Toolset, oven or heat gun, Dremel or oscillating tool
- Installation Guide: Turn Signal Harness Wiring Guide + Finding turn signal wire – RGB HALO KITS
- Wiring: 2 options available
Option 1: Direct Battery Connection
A quick and reliable method for uninterrupted power.
- Connect the positive lead to the battery's positive terminal.
- Connect the negative lead to the negative terminal.
- Secure the controller in a safe location.
- Power on and test the system.
Option 2: Custom Wiring to Fuse or Power Wire
Ideal for a more integrated setup with ignition-controlled power.
- Identify a fuse or parking light power wire that activates with the vehicle’s ignition.
- Use a fuse tap & Connect the positive lead to the power source and the negative lead to a ground point.
- Ensure all connections are secure and insulated.

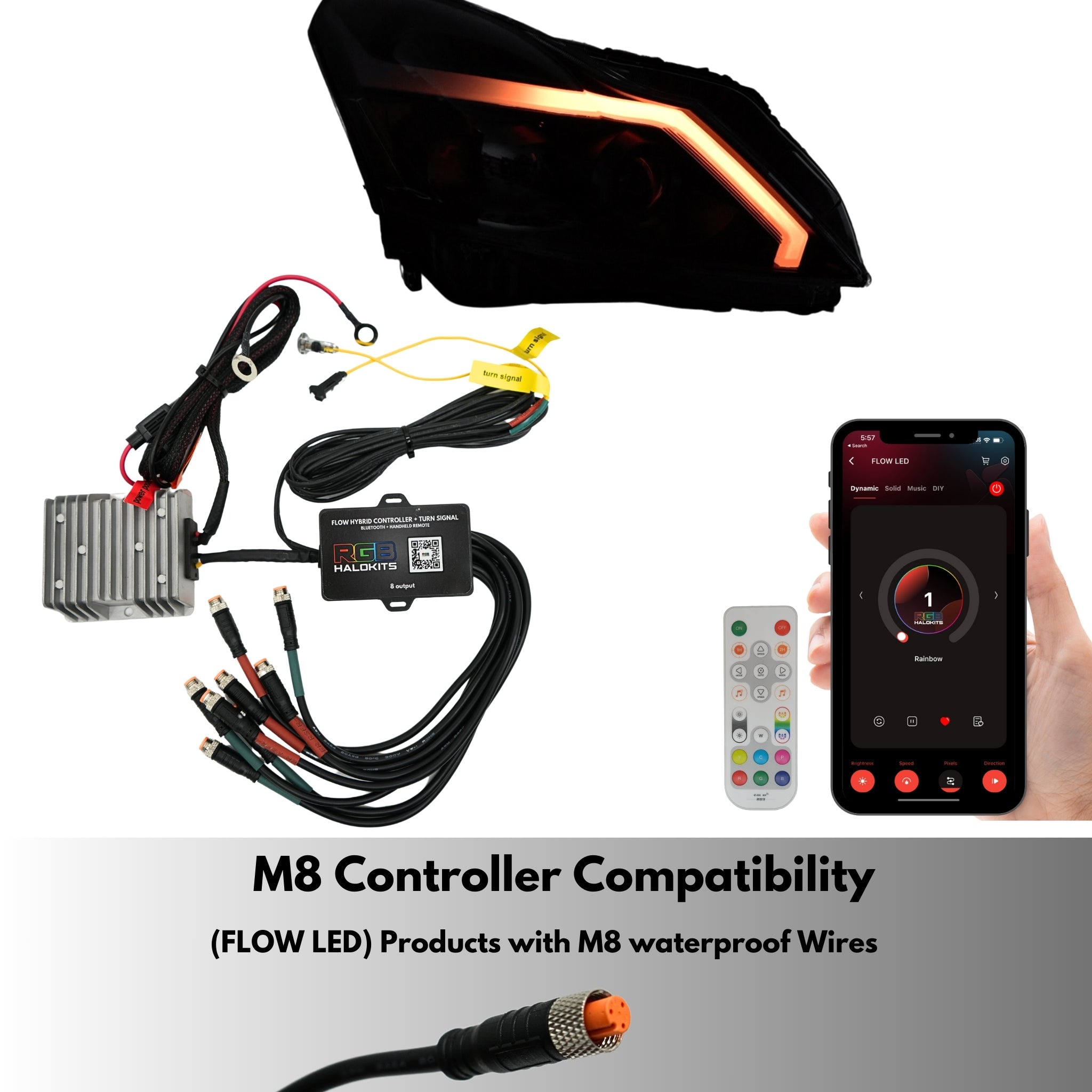

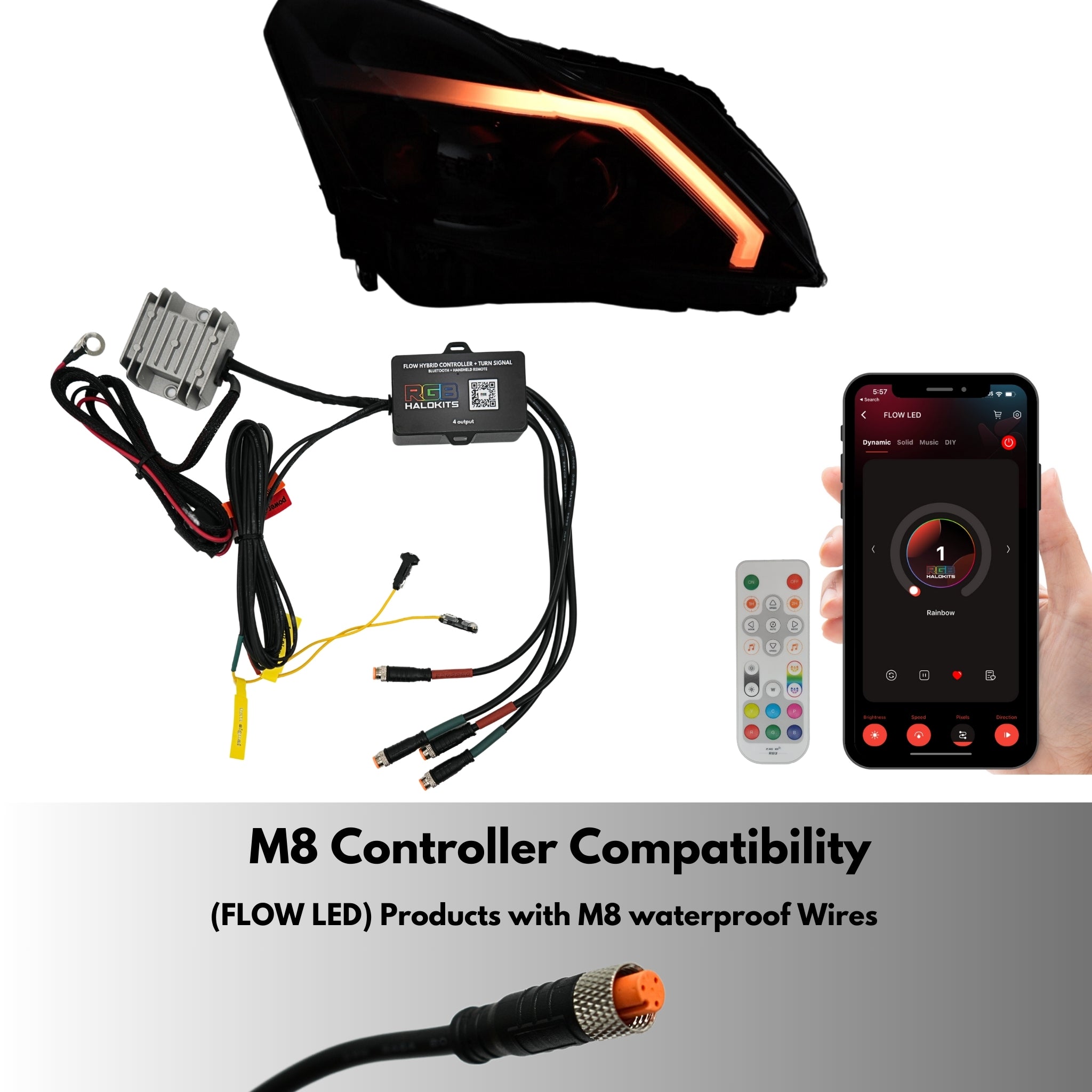

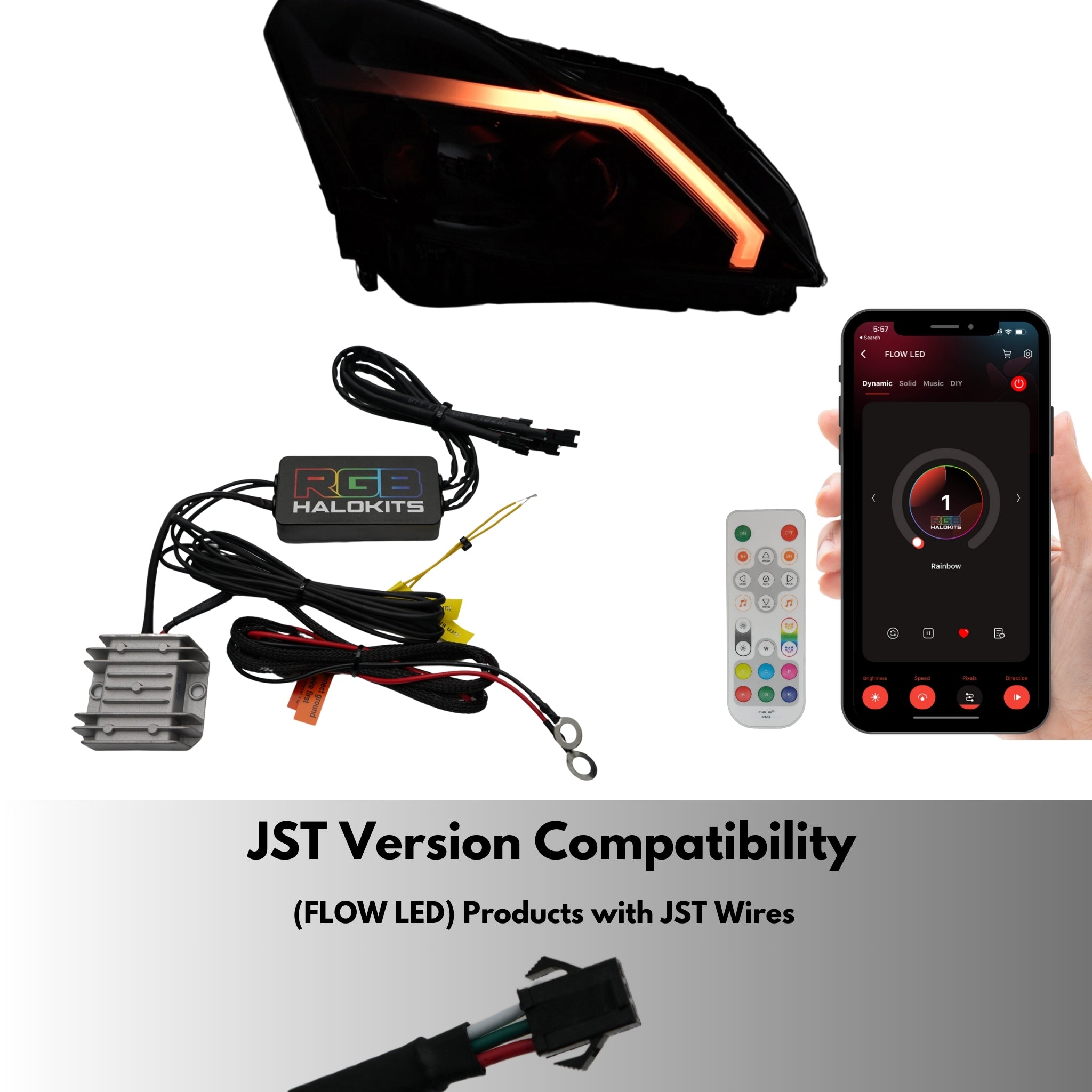

The Regulator is intended for use with any 5V Flow Series/ Color Chasing/Neoprism Halos, DRL Boards, and grill strips only. It comes with an attached harness with a Built-In Turn Signal Feature.
Yellow Wire 1 = Turn Signal Feature (driver Side)
Yellow Wire 2 = Turn Signal Feature (passenger Side)
Order Includes

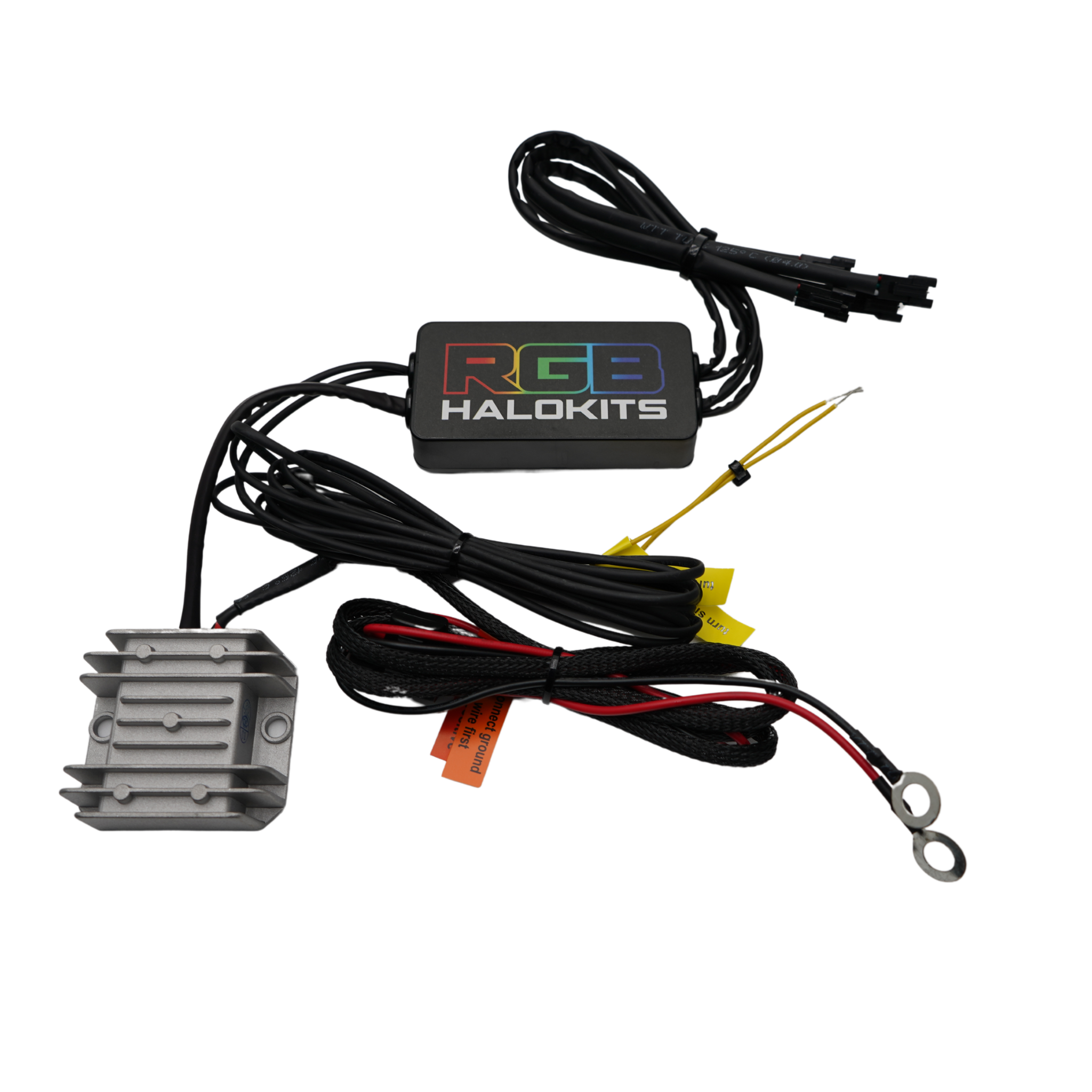

- (1) Hybrid LED Controller Bluetooth Module + (1) RF Handheld Remote
- 20-amp 5V regulator with 4-8 outputs
- QR code with a link to download the app
- Extra fuse
- Wiring + Quick Start Guide
Warranty
Warranty
FAQ
This controller is compatible with our FLOW LED lighting products + adds sequential turn signal feature to your flow lights

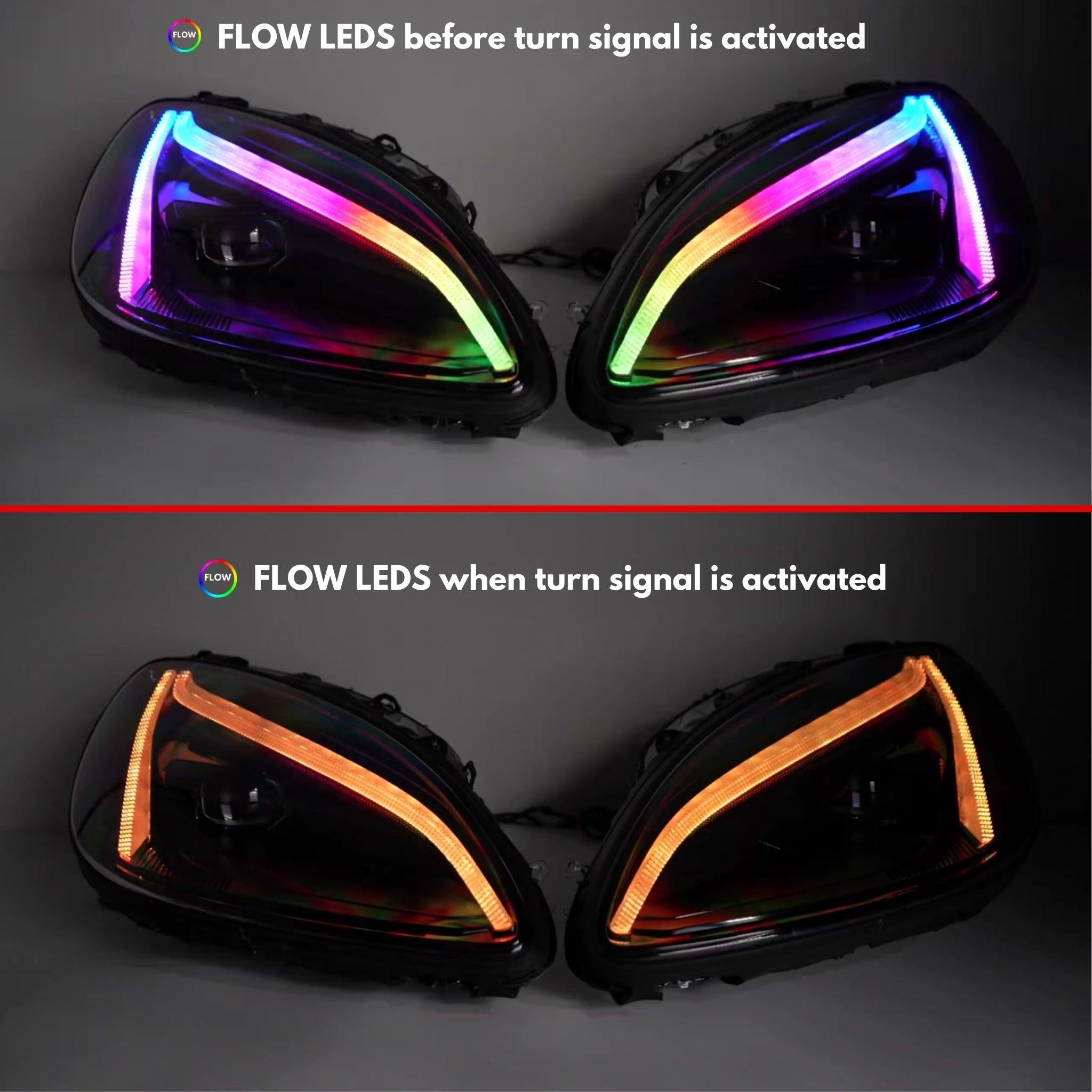

Once installed and wired into your vehicle any Flow Product hooked up to the controller will also blink amber when the turn signal is activated.
Our controllers are designed for RGB Halo Kits Products and most likely wont be compatible with other Flow Products from other brands.
No, the Flow Hybrid Controller does not support changing the color of the turn signals feature. For color customization of turn signals, consider using the BlueGhozt Bluetooth Controller, which offers in depth customization of color options.
The power wires provided are 56 inches in length, ensuring flexibility in installation and connection.
Pairing the Bluetooth controller is easy. Simply enable Bluetooth on your device, power on the controller, and follow the pairing instructions provided in the user manual.
- Underglow, wheel rings, and interior footwell lighting: Each of these products requires its own remote controller.
- Halo kits, DRL Boards, Grill Lights, and Headlight Strip Lighting: These products can be combined on one controller.
- Note: For Flow series products, if running more than 8 products or using more than 8 outputs , using two controllers is recommended.
Our controllers are designed to be weather-resistant but may not be fully waterproof. We recommend protecting them from direct exposure to water or moisture.
No, Flow series products cannot be operated with an RGBW remote, and RGBW products cannot be operated with a Flow series remote. It's essential to choose the corresponding remote for each product type to ensure compatibility and proper functionality.
The battery size for the RF handheld remote is CR2025
We provide a 1 warranty on our remote controllers, ensuring peace of mind and reliable performance.
Installation instructions are included in the product packaging. Additionally, you can check our help center or contact our support team for assistance.
Our Controller Features 2 in 1 interchangeable Hybrid Control.
Both options work seamlessly together
1. Bluetooth Control- control your lights with your phone or any bluetooth device
2. RF Handheld Remote- control your light with the included handheld remote
