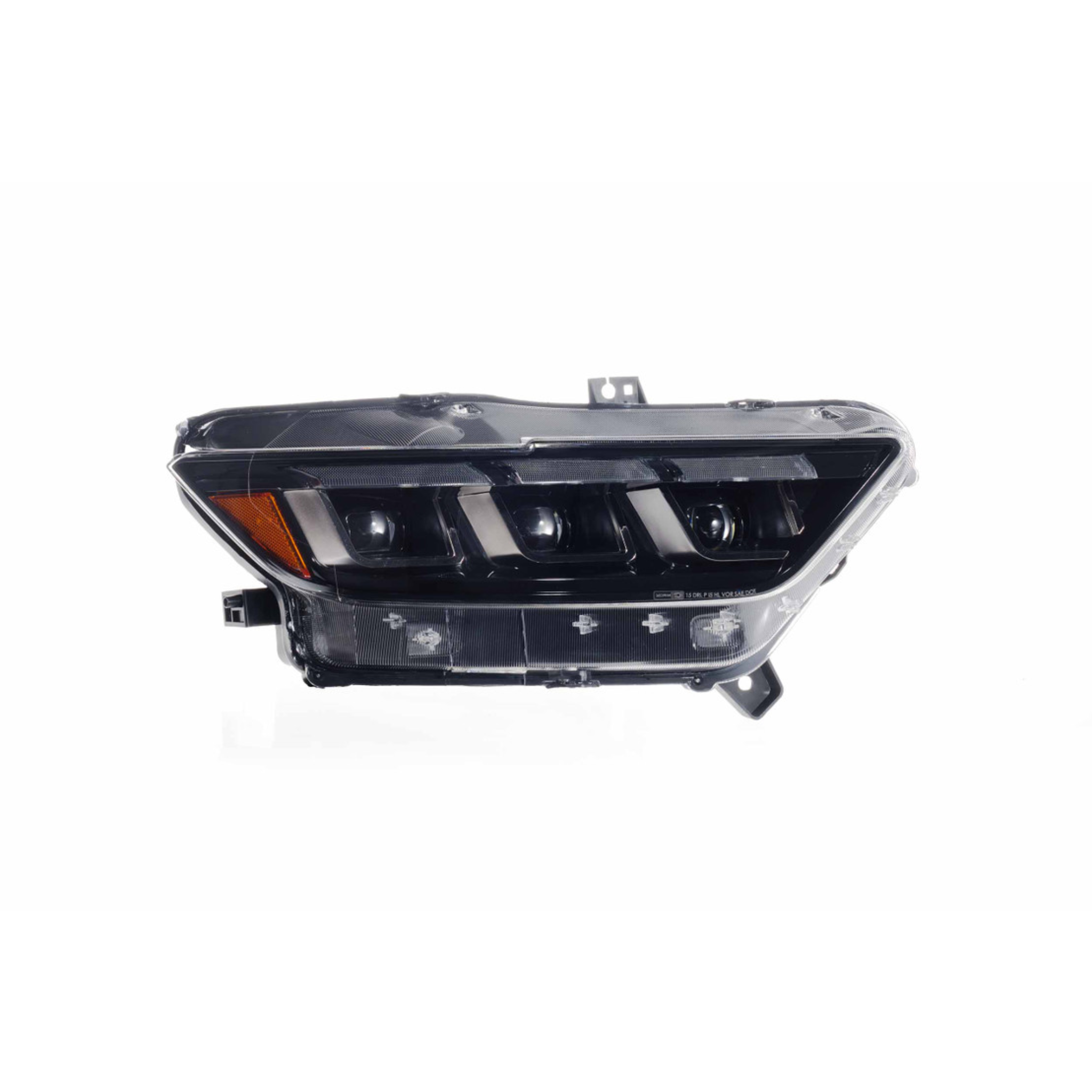

Ford Mustang (15-17): LED HEADLIGHTS (GEN II) | XB
The all-new XB Gen II headlights are packed with features that demonstrate Morimoto's true attention to detail. Fitted with the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Thanks to an array of high output Bi-LED projectors, the second generation XB headlights for the S550 will meet and exceed the highest expectations in the performance department. Here, our new Mustang headlight utilizes triple Bi-LED projectors to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. When starting your Mustang, the optics will automatically illuminate in a multi-stage sequence before turning back off. All Morimoto XB headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free installation. Morimoto takes pride in offering stylish, high-performance and safe products for serious enthusiasts, which is why all new Morimoto products are verified by trusted third party labs for compliance and these headlights are backed with an industry-leading five-year warranty.
- Advanced Technology: High output Bi-LED projectors for superior light with a bright low beam and powerful high beam.
- Precision and Quality: Matches OE specifications for perfect fitment and easy installation.
- Enhanced Styling: Premium design for enthusiasts who value aesthetics and performance.
- Dynamic Start-Up: Multi-stage illumination sequence adds a touch of sophistication.
- Reliable and Safe: Verified for compliance and backed by a five-year warranty.
WHAT’S INCLUDED
-
Headlights: 2x (One Pair) 15-17 Ford Mustang XB Gen II LED Headlights
-
Wiring: 2x (One Pair) Turn Signal Harness Adapters
-
Function Selectors: 8x (Four Pairs) For DRL and Turn Signal Settings
-
Warranty: Five (5) Years
WARRANTY INFORMATION
This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
COMPATIBILITY
-
Ford Mustang: 2015-2017 (All*)
-
Ford Mustang GT350 / GT350R: 2015-2020
-

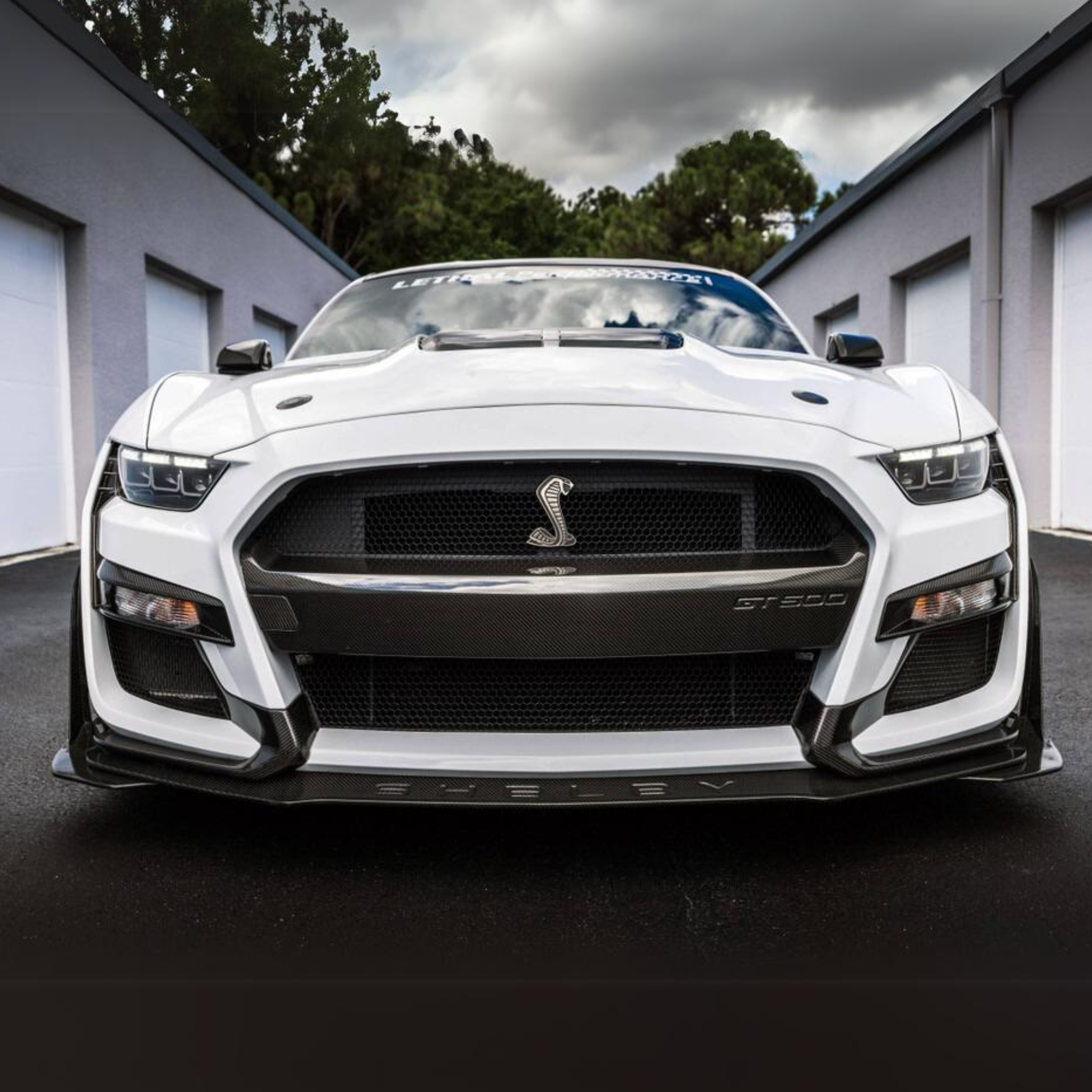

Ford Mustang GT500: 2020-2022
-
*NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
COMPLIANCE
DOT, SAE, FMVSS108 Standards

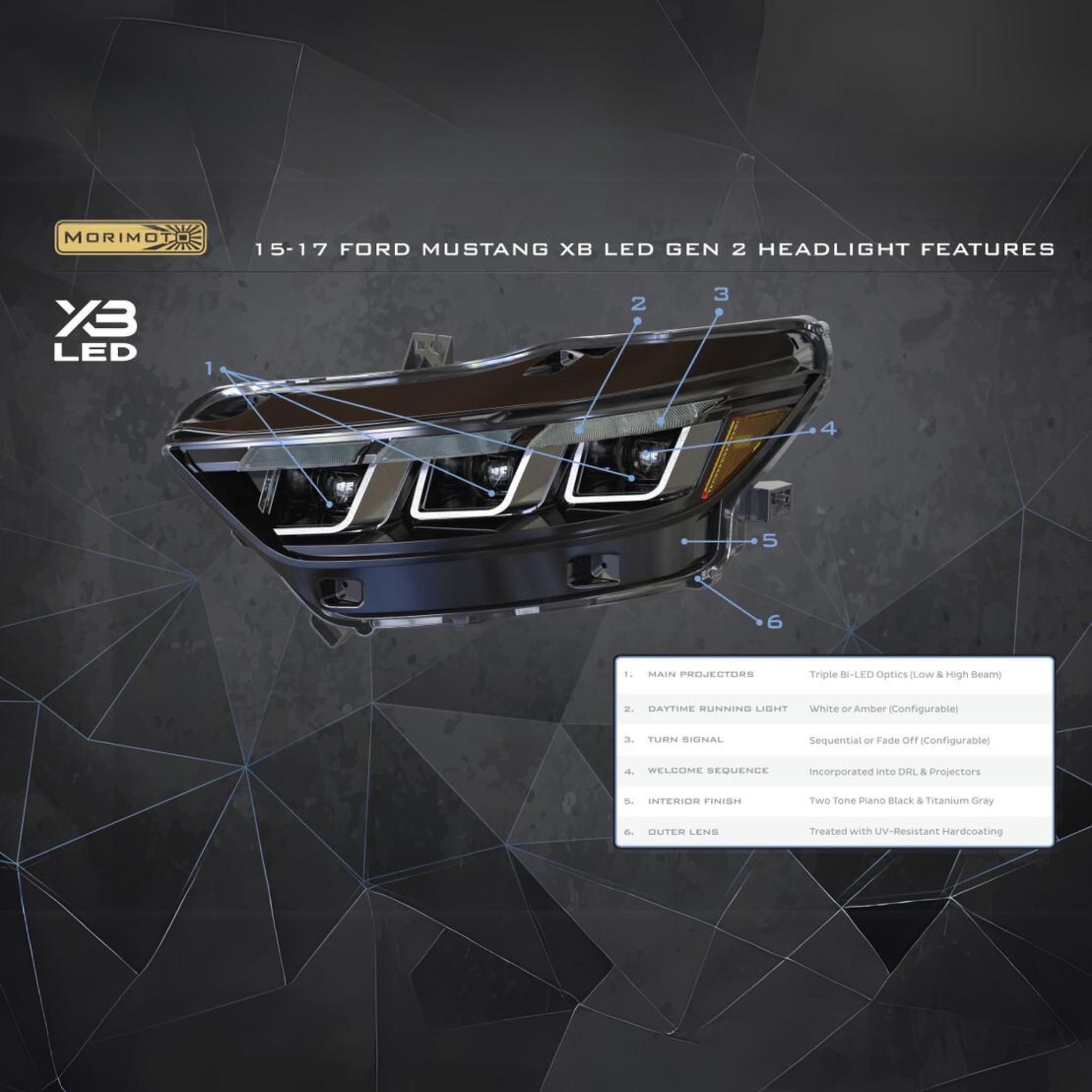

TECHNICAL SPECIFICATIONS
-
Low Beam Performance: +174% (530lux [OEM HID] to 1,450lux)
-
High Beam Performance: +143% (630lux [OEM HID] to 1,530lux)
-
Traffic Pattern: LHD
-
Input: Ford multi-pin
-
DRL: White or amber
-
Turn Signal: Sequential or standard
-
Functions: Low, high, park, DRL, turn
-
Interior Color: Gloss black and titanium
-
Material: ABS plastic (housing), UV-resistant polycarbonate (lens)
-

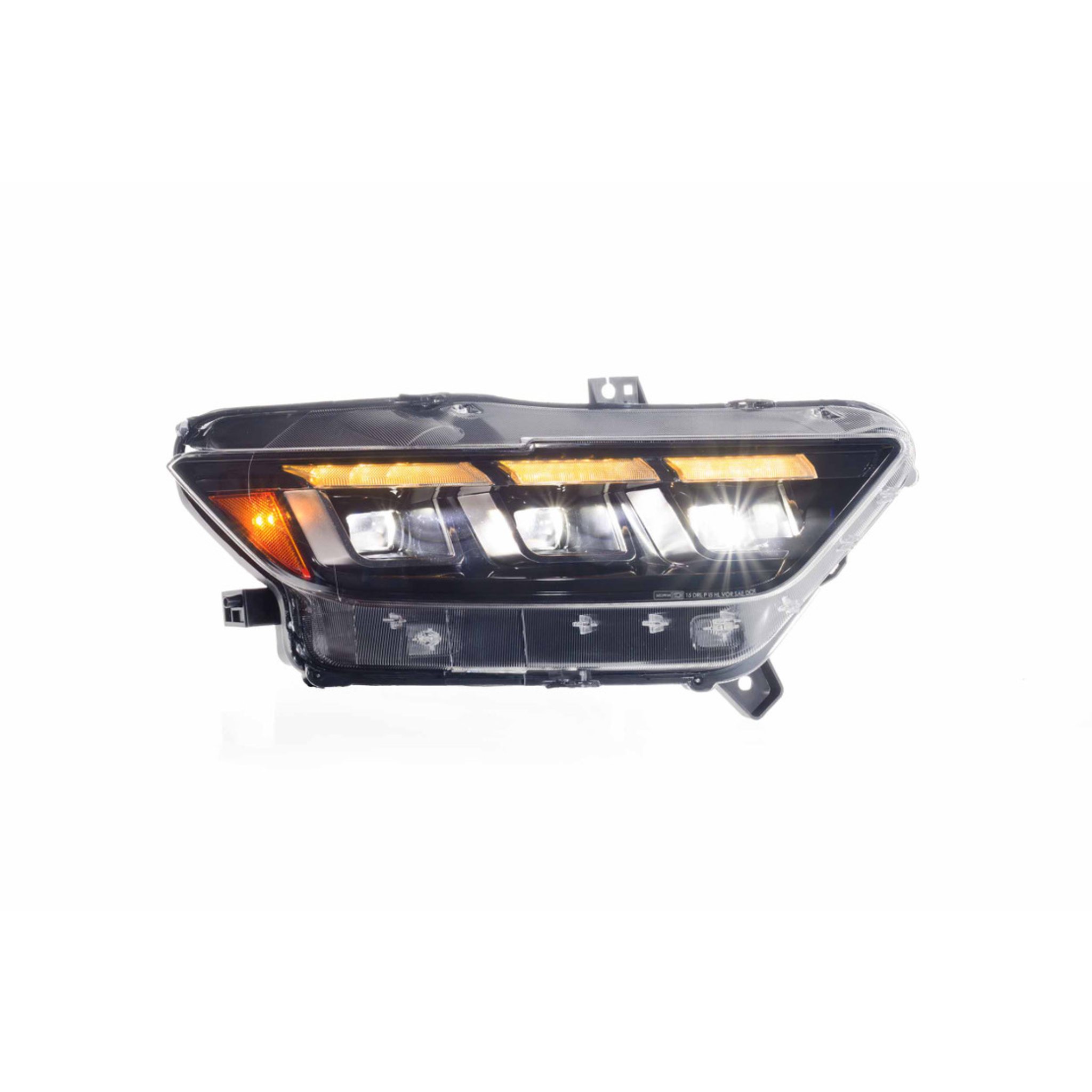

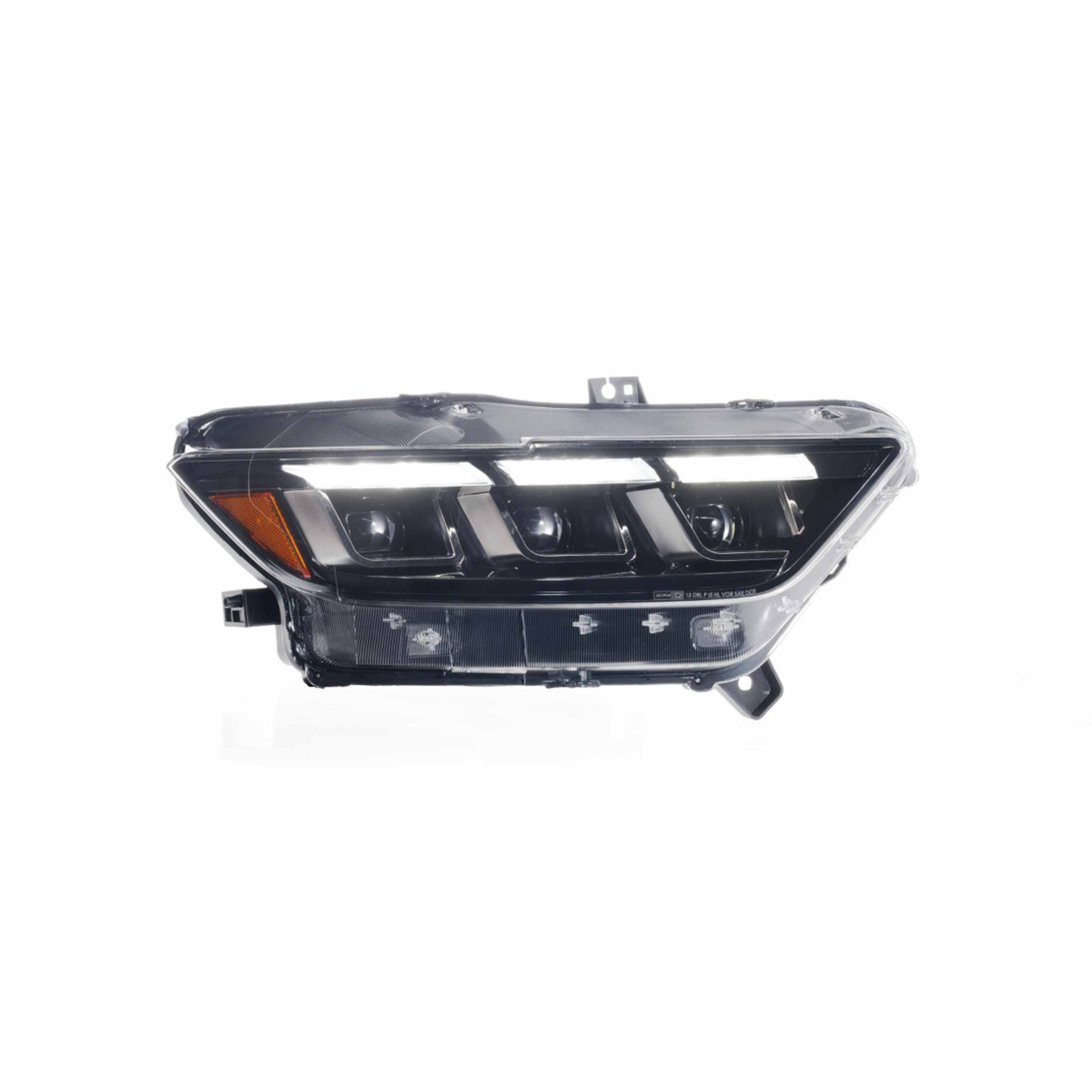

Optic: Triple Bi-LED projectors
-
Lens Coating: Hardened anti-UV protection
Installation
Ford Mustang GT500 (20-22) XB LED Headlights (GEN II) Install PDF
LINE DRAWINGS
DETAILED DESCRIPTION
Evolutionary: The all-new XB Gen II headlights are packed with features that demonstrate Morimoto's true attention to detail. Fitted with the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium.
Maximum Performance: Thanks to an array of high output Bi-LED projectors, the second generation XB headlights for the S550 will meet and exceed the highest expectations in the performance department. Here, our new Mustang headlight utilizes triple Bi-LED projectors to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. The Morimoto XB LED Headlights are DOT compliant with all FVMSS108 regulations for on-road use in the USA.
DRL Optics: The turn signals and daytime running lights illuminate modern reflector-based optics with special optical surface textures that enhance intensity at a distance, no matter day or night. These easily out-shine the low-tech daytime running lights found in many other aftermarket headlights for the Mustang, including our previous gen units.

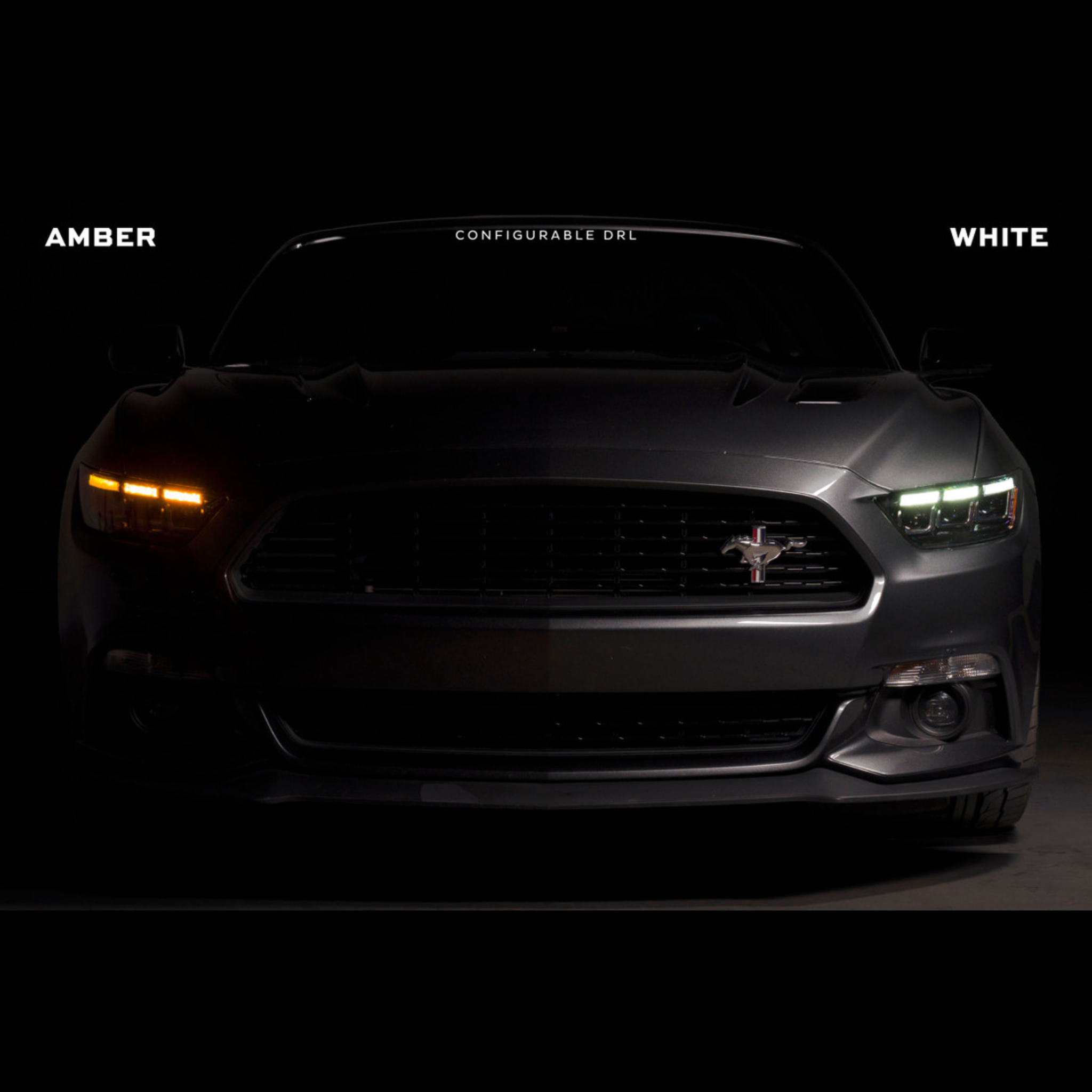

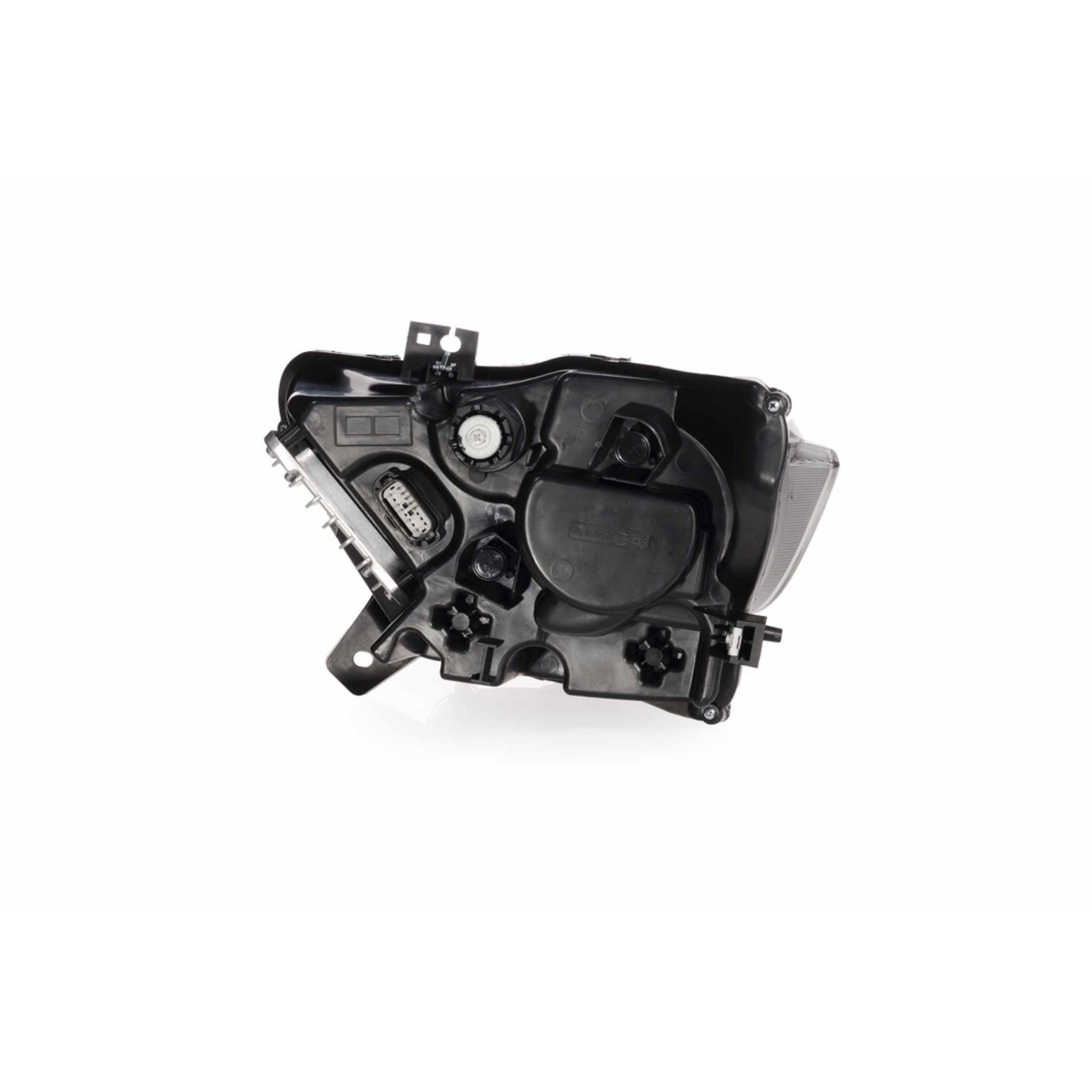

Easy to Personalize: The Signal Swap system allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug and play key on the back of each headlight. The DRL can be configured to run in either white or amber with no compromise in intensity either way. The turn signals can operate sequentially from side to side, or in a more traditional on-off mode with an elegant fade-off effect.

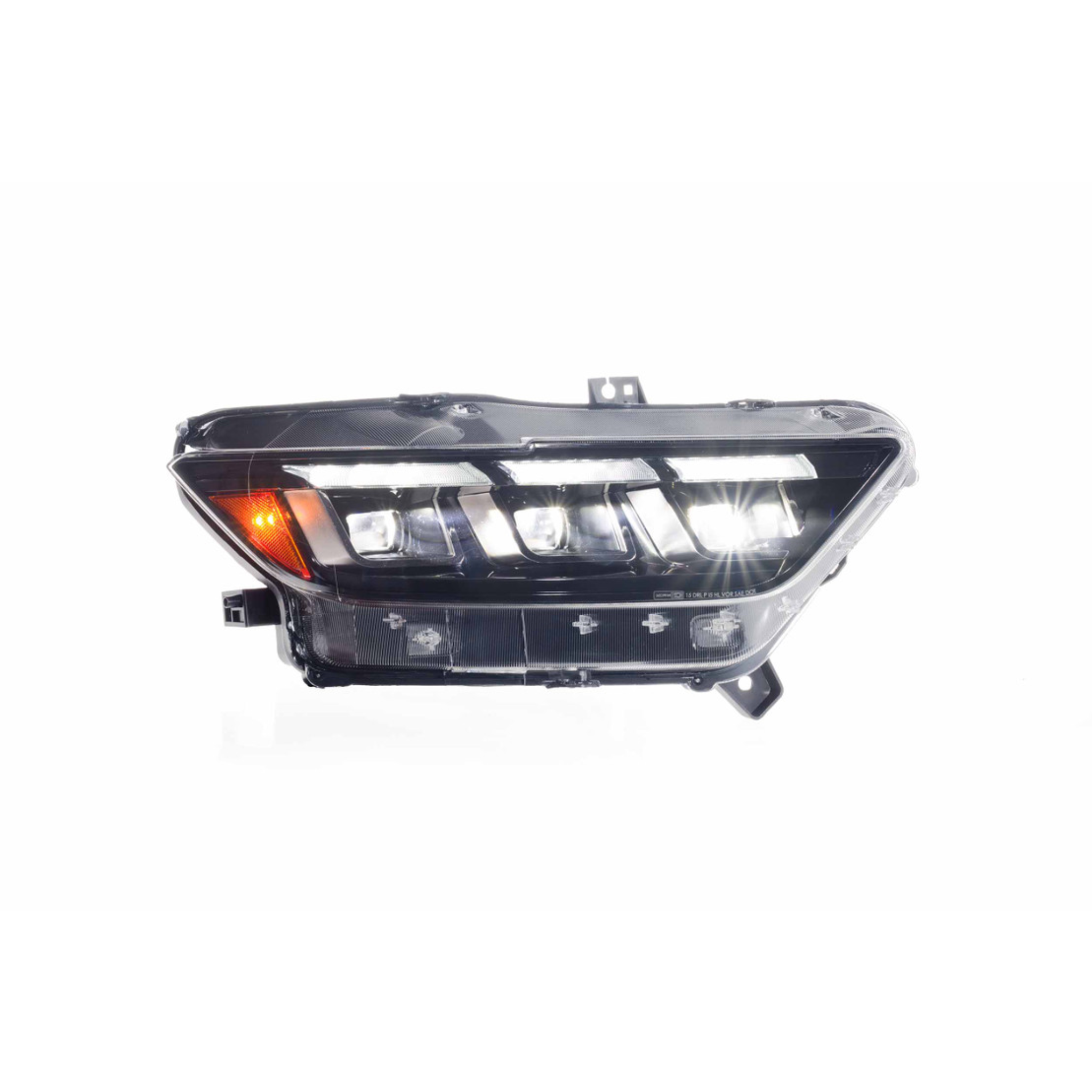

Start-up Sequence: When starting your Mustang, the optics will automatically illuminate in a multi-stage sequence before turning back off. Unlike every other feature baked into the XB Gen II headlights, this does absolutely nothing to improve performance. But executed properly, it does look cool, and there's nothing wrong with that!
OE Fit & Installation: All Morimoto XB headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free installation. They will bolt onto the original mounting points and line up to the surrounding sheet-metal without any massaging. They then plug into the factory wire harness and work without errors on the dash, flickering, flashing, or radio interference. Thoughtfully engineered for a modification-free install. No factory warranties void. No headaches.
Well-Built: This product is completely designed, engineered & tested by the Morimoto team to meet the high expectations of our customers. High quality OE-grade LEDs used throughout. All wiring and connections are OE-grade. When it comes to UV protection, OE Toyota headlights are the industry's best. That's why we've formulated a new hard coating that actually exceeds their standard for resistance against cracking, fading, and yellowing lenses from UV exposure. The list goes on, but, as the saying goes: you get what you pay for. Morimoto headlights aren't the most affordable, but they are built to a high standard and should easily last the life of your Mustang! We're proud to stand behind the product with an industry-leading five-year warranty. If something fails prematurely, we have you covered.
