Air Cooled: If you know, you know. There is nothing that looks better. Nothing that sounds better. Nothing with more character… than a classic air-cooled Porsche. Everything about these cars is the pinnacle of perfection for analog enthusiasts, and we wouldn't change a thing. These were simpler times, but simpler times also came with simple headlights, and that’s one thing we Porsche fans don’t necessarily admire. Especially when the original headlights were designed around ancient headlight technology from the 60s and its dark outside. At Morimoto, we get it, and that’s why our new Bi-LED headlights for your 911 are about as future-proof as the car itself.
Compatible: these are a direct bolt-on fitment for all Porsche 911s from 1965-1994 including the 911, 912, and 964 generations. They include a set of new fender mounting rings, H4 to H5 adapter harnesses, and should not take more than an hour at most to install.

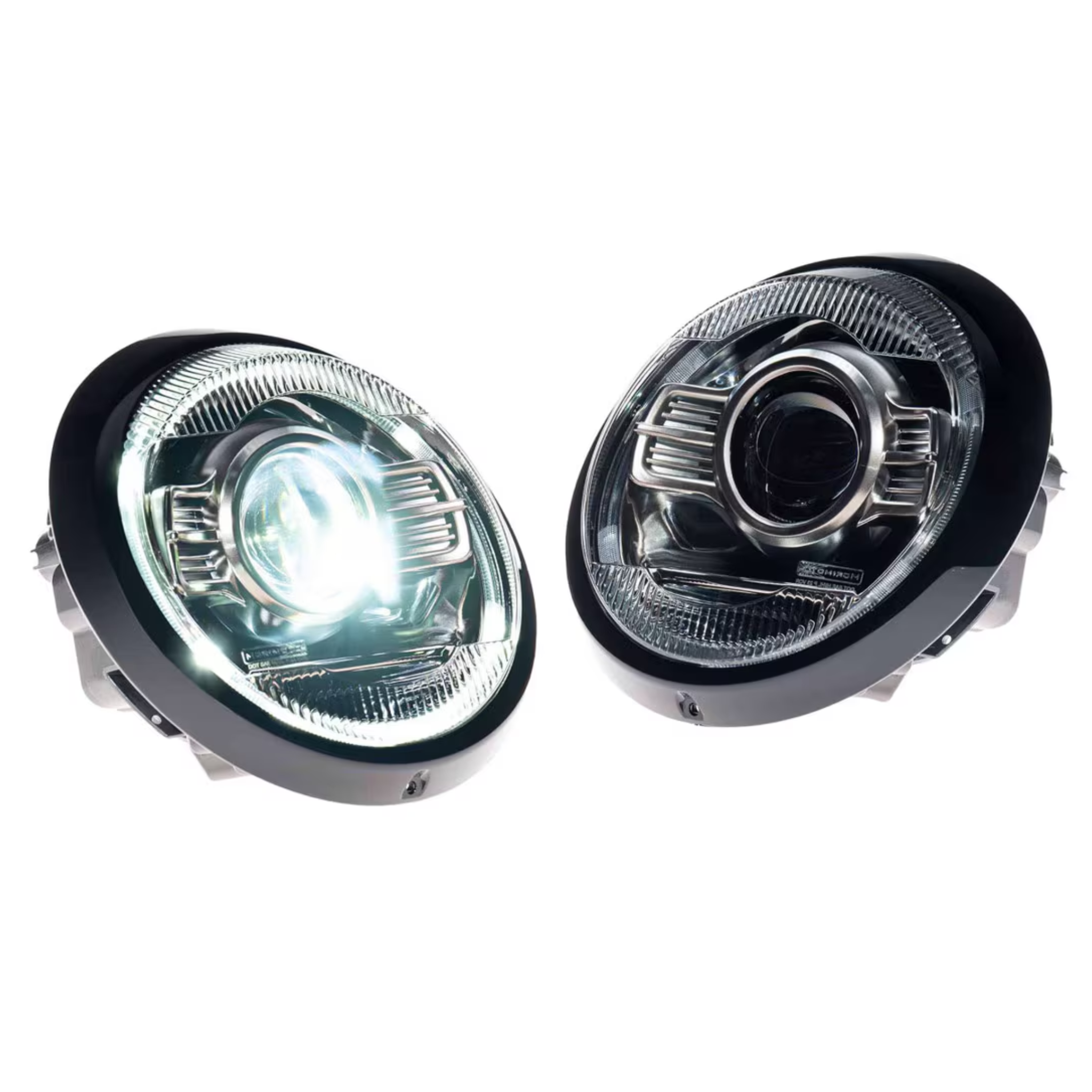

Bi-LED: The Morimoto XB LED headlights for the 911 come standard with a single high-output Bi-LED projector, just like the OEM headlights found on the late 991 and 992 Gen cars. They're going to perform even better than they look, with a wider, significantly brighter low beam, and a high beam that will penetrate far into the distance with ease. To top it all off, these optics meet & exceed all SAE, DOT standards when aimed properly, which is easy to do with their integrated aiming adjusters.

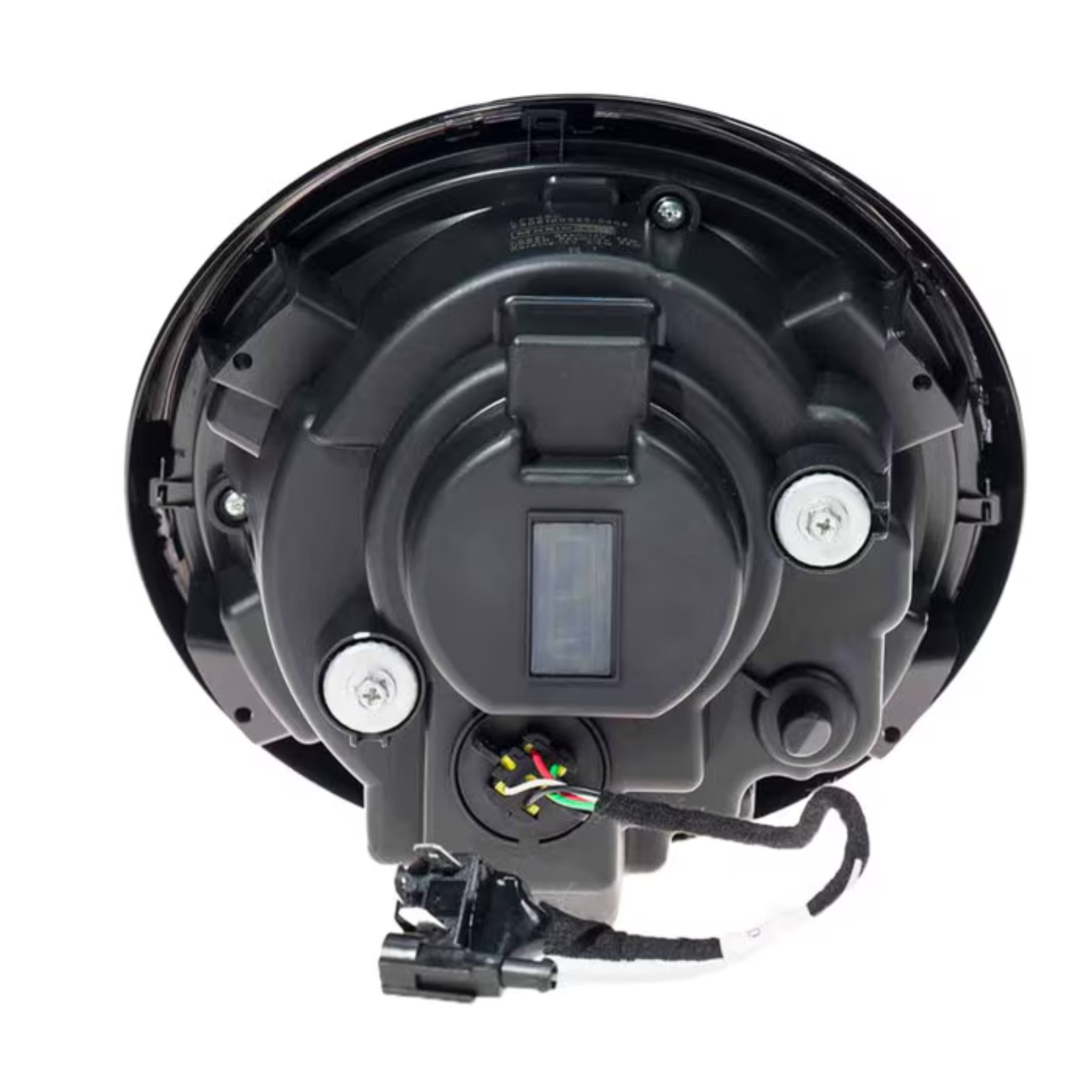

Plug n Play: The Porsche 911 XB LED Headlights from Morimoto are designed to work without any modifications. These LED headlights will plug into the factory 3-prong H4 connectors for the stock lights and include H5/9007 Adapters for later model cars. A separate, easy-to-install harness is also included to power the daytime running lights.

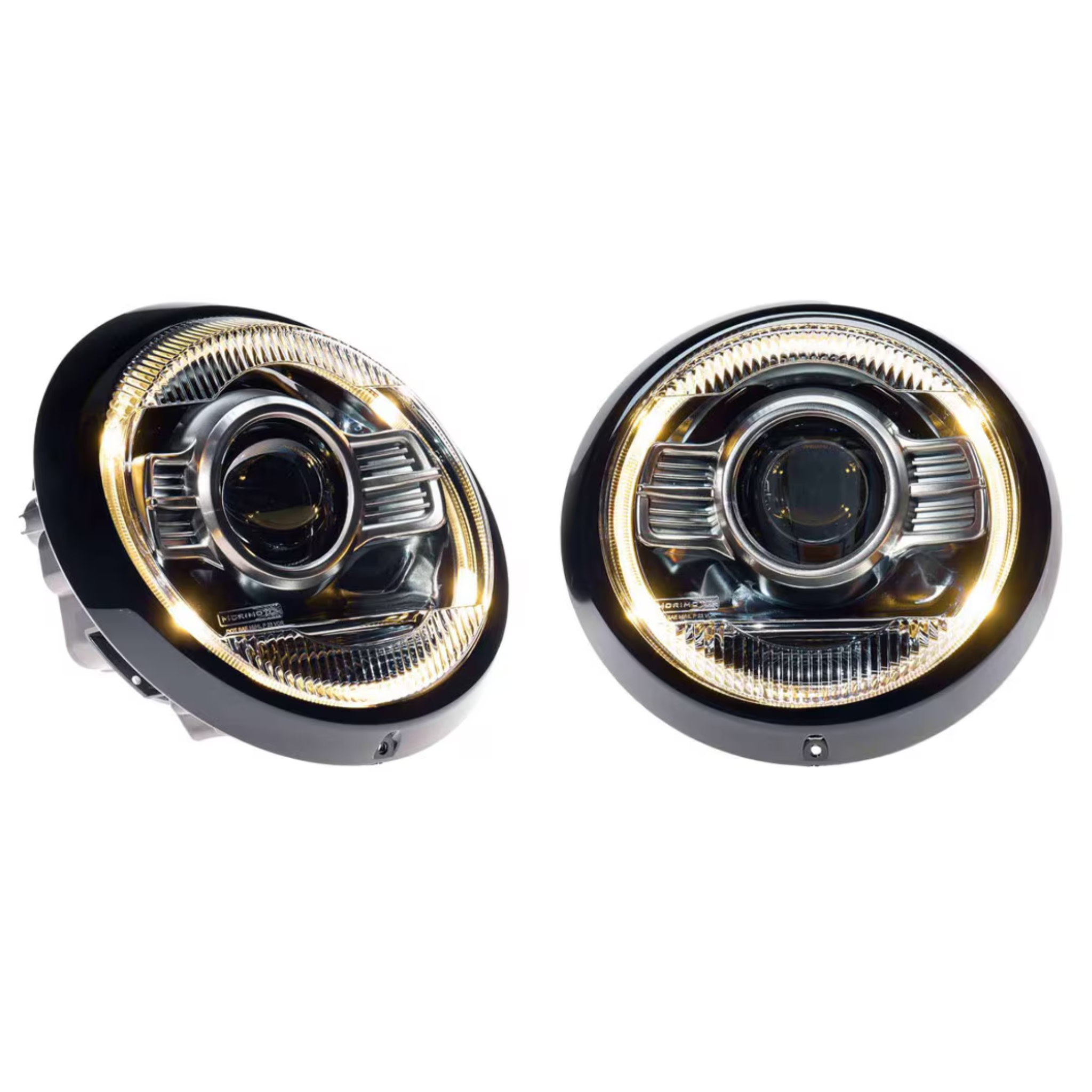

Style: These are the perfect solution to modernize the front-end of your classic 911 without compromising the delicate styling of the car. The geometry and much of the fluted texture on the front-lens has been preserved. The optical light pipe that wraps around the outer perimeter of the housings acts as a low intensity parking light and the full intensity daytime running light. These optics also create four pronounced hot-spots in each corner of the light, which are also reminiscent of what Porsche did on the 991 Generation cars and though we recognize that’s on the verge of too modern ….trust us, it looks just right!

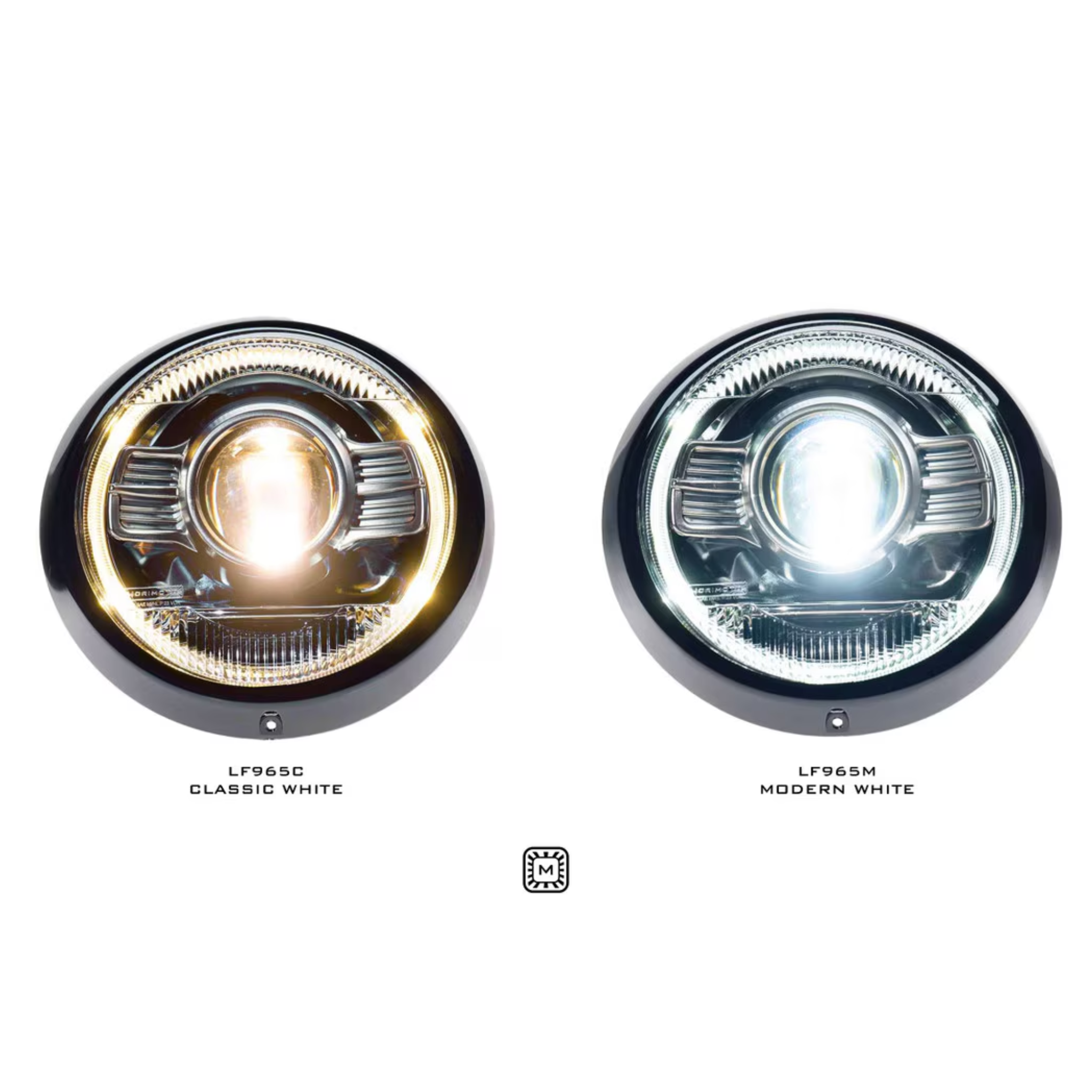

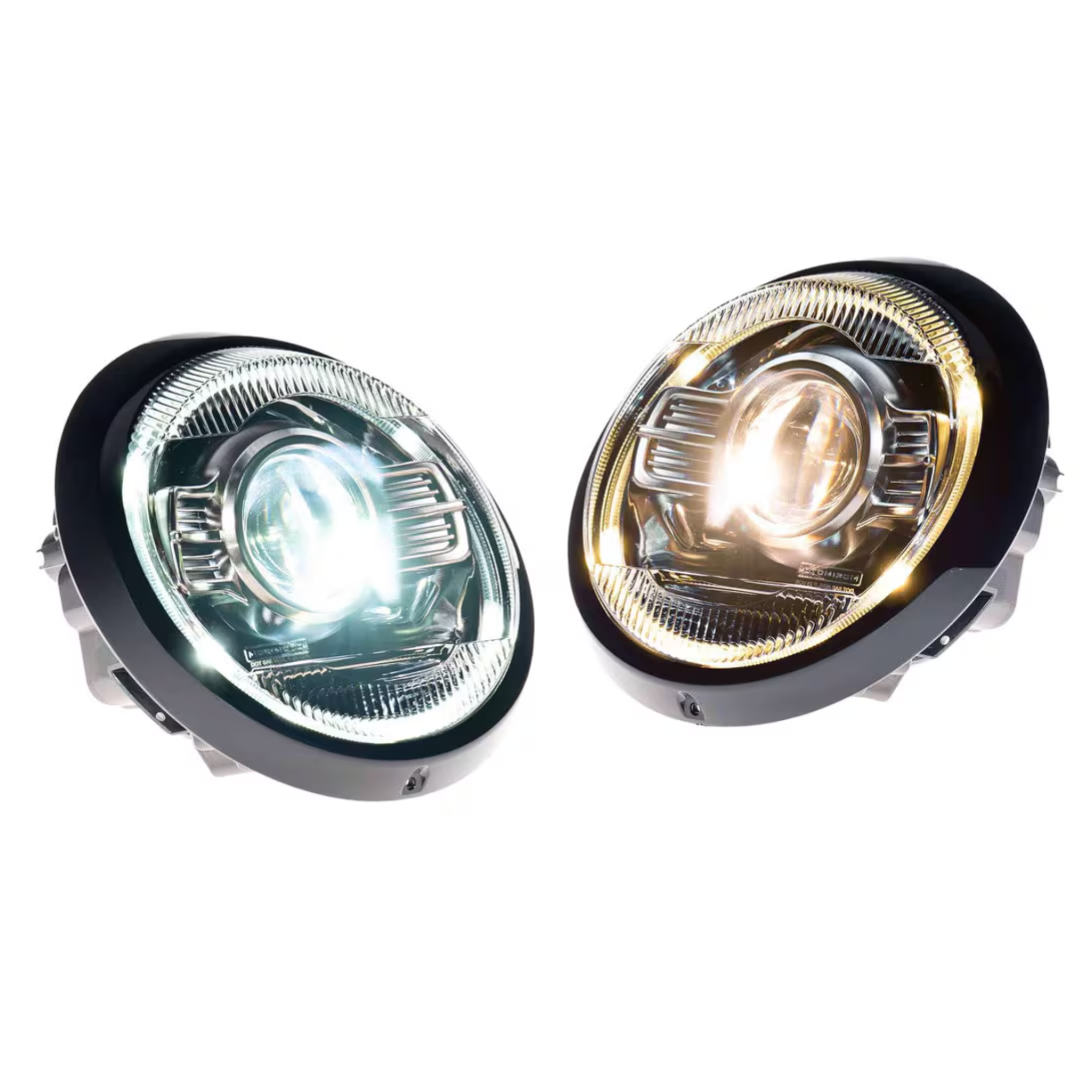

Classic or Modern White: The Classic White model looks especially natural on the car with the warm white LEDs, and could truly pass for original-equipment, while the Modern-White version offers a more updated appearance. In either case, we have matched the color of the daytime running light optics and main low/high beam LED projector. We also offer matching LED fog lights for the 964 (Part number: LF964 / Only available in Classic White Color).
Well-Built: The durable polycarbonate lens has been UV treated, and will resist the test of time, keeping the housings looking new for many years to come. All wiring and connections are OE grade, and the optics inside are designed to maximize visibility on par with modern Porsche lights. The price is justified, and as the saying goes: you pay for what you get. These headlights are built to exceed all expectations and should easily last the life of your classic 911!
What's Included
-

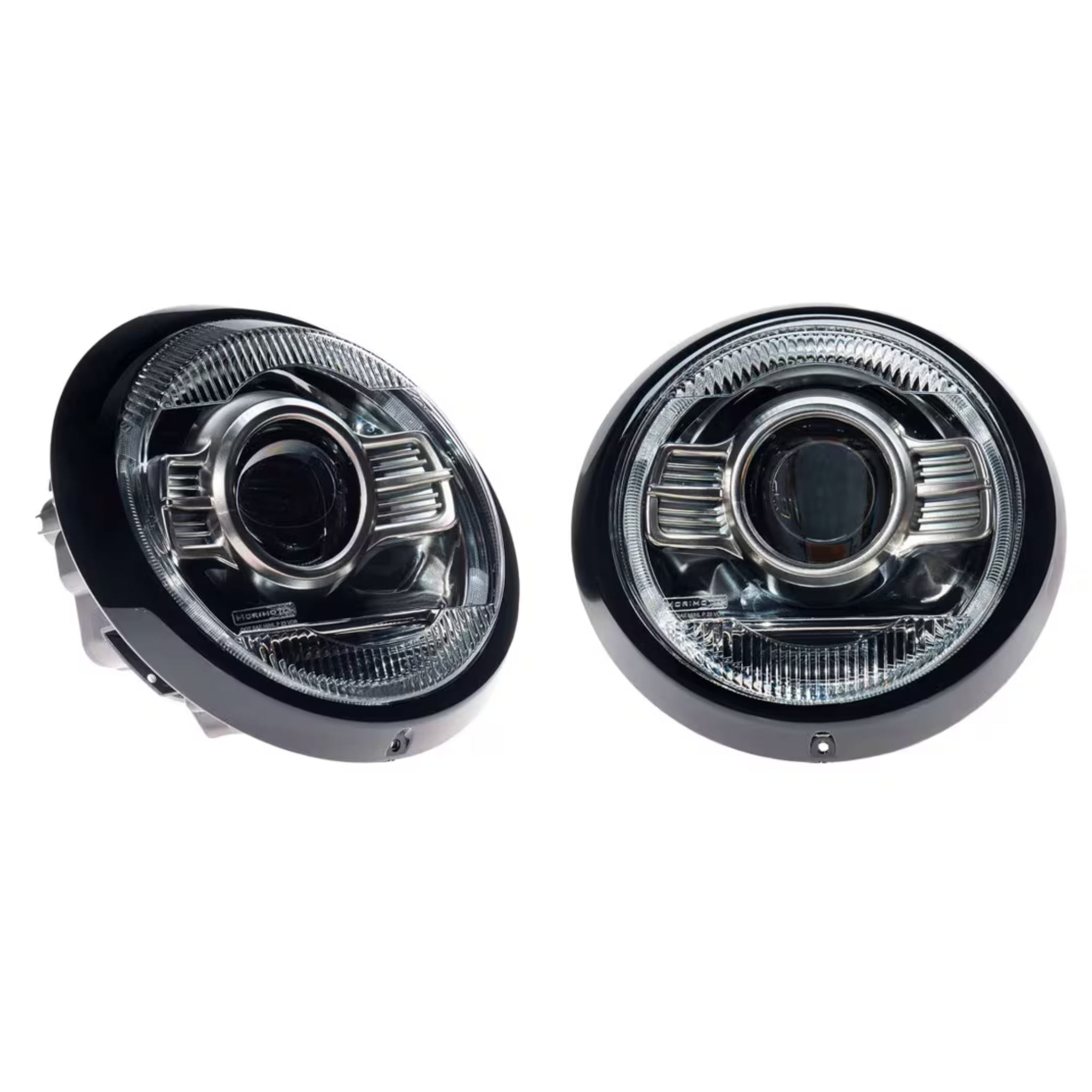

Headlights: 2x (One Pair) 65-94 Porsche 911 XB LED Headlights
-
Retainers: 2x New Lens Retainers (Gloss Black / Paintable)
-
Wiring: Plug and Play H4 Harness, Fuse Tap, H4 to H5/9007 Adapters
-
Warranty: 5 Years (Click for Details)
Compatibility
-
Porsche 911: 65-94 (911,912, 964 Body styles) (All sub-models included)
-
H4 Wiring: Plug n Play
-
H5 Wiring: Plug n Play with Included Adapter harnesses
-
Replaces Porsche Part #: 91163192700, 91163111300, 91163111302, 91163111900, 1305319342, 911631927
Tech Specs
-
Low Beam Performance (Classic White): +107% (550 lux [Halogen] to 1,140 lux)
-
High Beam Performance (Classic White): +109% (660 lux [Halogen] to 1,380 lux)
-
Low Beam Performance (Modern White): +400% (550 lux [Halogen] to 2,750 lux)
-
High Beam Performance (Modern White): +387% (660 lux [Halogen] to 3,220 lux)
-
INTENSITY: 3,200lm (raw; each)
-
TRAFFIC PATTERN: LHD Only
-
INPUT: H4 or H5 3 Pin
-
FUNCTIONS: DRL (White), Parking, Low, High
-
BEZEL COLOR: Gloss / Gunmetal Metallic y
-
MATERIAL: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
-
OPTIC: Single 3” Kuria Optic Bi-LED
-
UV COATING: Momentive UVHC3000
FAQ
Our LED headlights are known for their premium quality, advanced components, innovative design, and superior light output and function. They are crafted to enhance both the aesthetics and performance of your vehicle, ensuring you get the best value for your investment.
Yes, our LED headlights are designed for easy installation, often requiring no modifications to your vehicle. Each product includes instructions to guide you through the process.
Absolutely. Our LED headlights comply with all relevant safety standards and regulations, ensuring not only top-notch performance but also the safety of you and other drivers on the road.
Our LED headlights are built to last the lifetime of your vehicle, with a lifespan significantly longer than traditional halogen bulbs. You can expect 10+ years of reliable performance from our products.
Yes, all our LED headlights come with a comprehensive 1-3 year warranty. This ensures that you are covered in the unlikely event of any defects or issues with the product.
