2015-2017 Ford F-150 Multicolor DRL Boards Install Guide

2015-2017 Ford F-150 Multicolor DRL Boards Install Guide

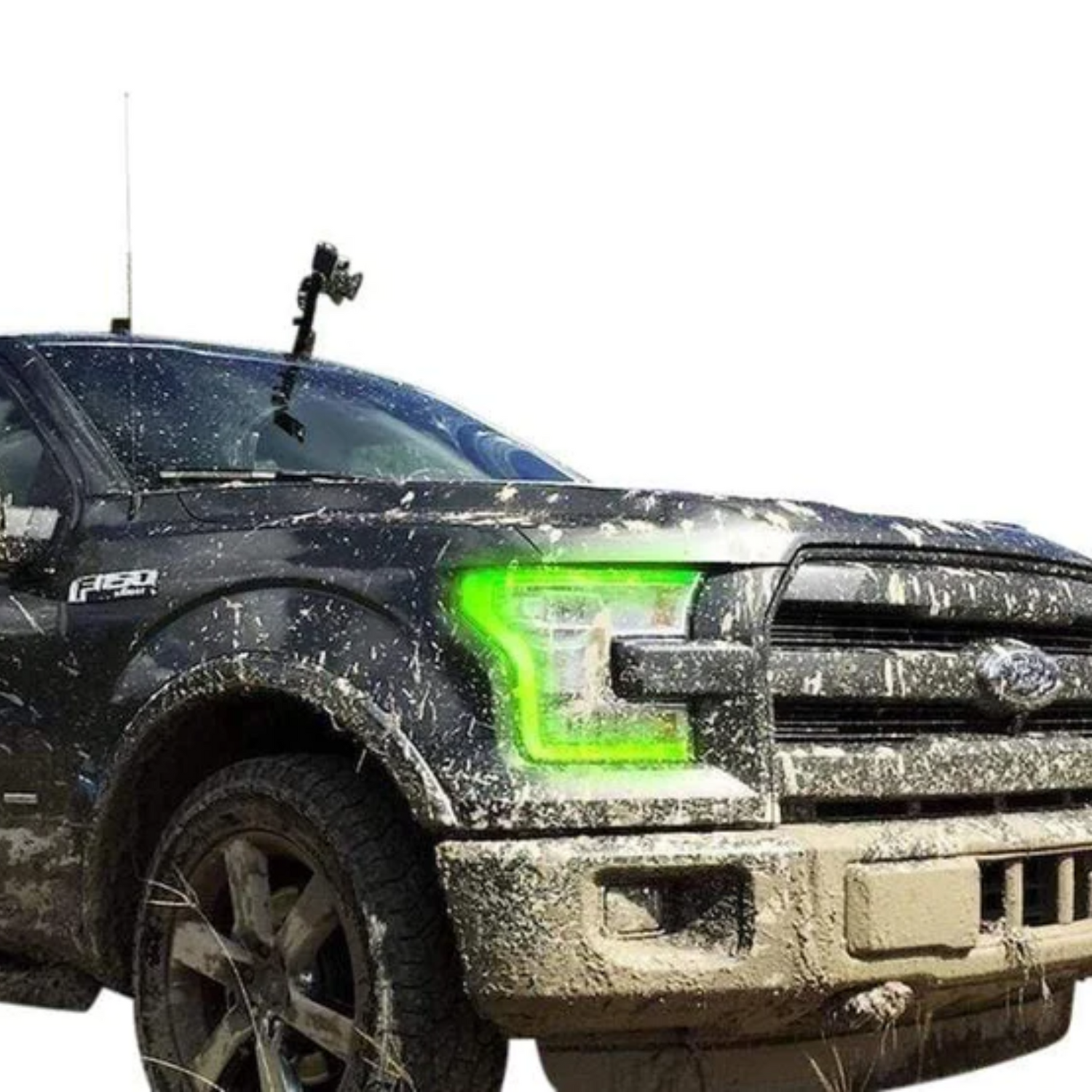

Installation guide for 2015-2017 Ford F-150 Multicolor DRL Boards

Elevate your 2015-2017 Ford F-150 with our comprehensive Multicolor DRL Boards Install Guide. Enhance both visibility and style effortlessly with step-by-step instructions tailored for seamless integration, ensuring your F-150 commands attention on the road with dynamic lighting options.

Product Link:

2015-2017 Ford F150 RGBW DRL Boards


Install Guide:

Step 1: Test your Product. This ensures no manufacturing defects are in the LEDS, and that you understand how to wire your product properly. See the wiring guide that comes with your product or visit our Wiring Guide (RGBW and RGBWA).

Step 2: Remove your bumper to access headlights.

2015-17 Ford F150 | 2017-20 F150 Raptor Bumper and Headlight Removal Guide PDF

Step 3:  Open your headlights. (*Headlights can be safely opened and resealed using the process outlined in the video below)

Step 4: Install your LED Product into your headlights

Step 5: Reseal your headlights (see video above) or click here for full guide

Step 6: If you haven't already, wire your LED Product onto your car using the included wiring guide.


The third-party videos in this article belong to their creators and are used by RGB Halo Kits for instructional purposes. We don't own these videos, and their accuracy isn't guaranteed. If you have concerns about the content, please don't hesitate to get in touch with us. Users agree to these terms by using the videos.
