This installation reference covers 2015-2017 Ford Mustang Multicolor DRL Boards. Match the product, vehicle configuration and controller part number before starting.
Part # F6

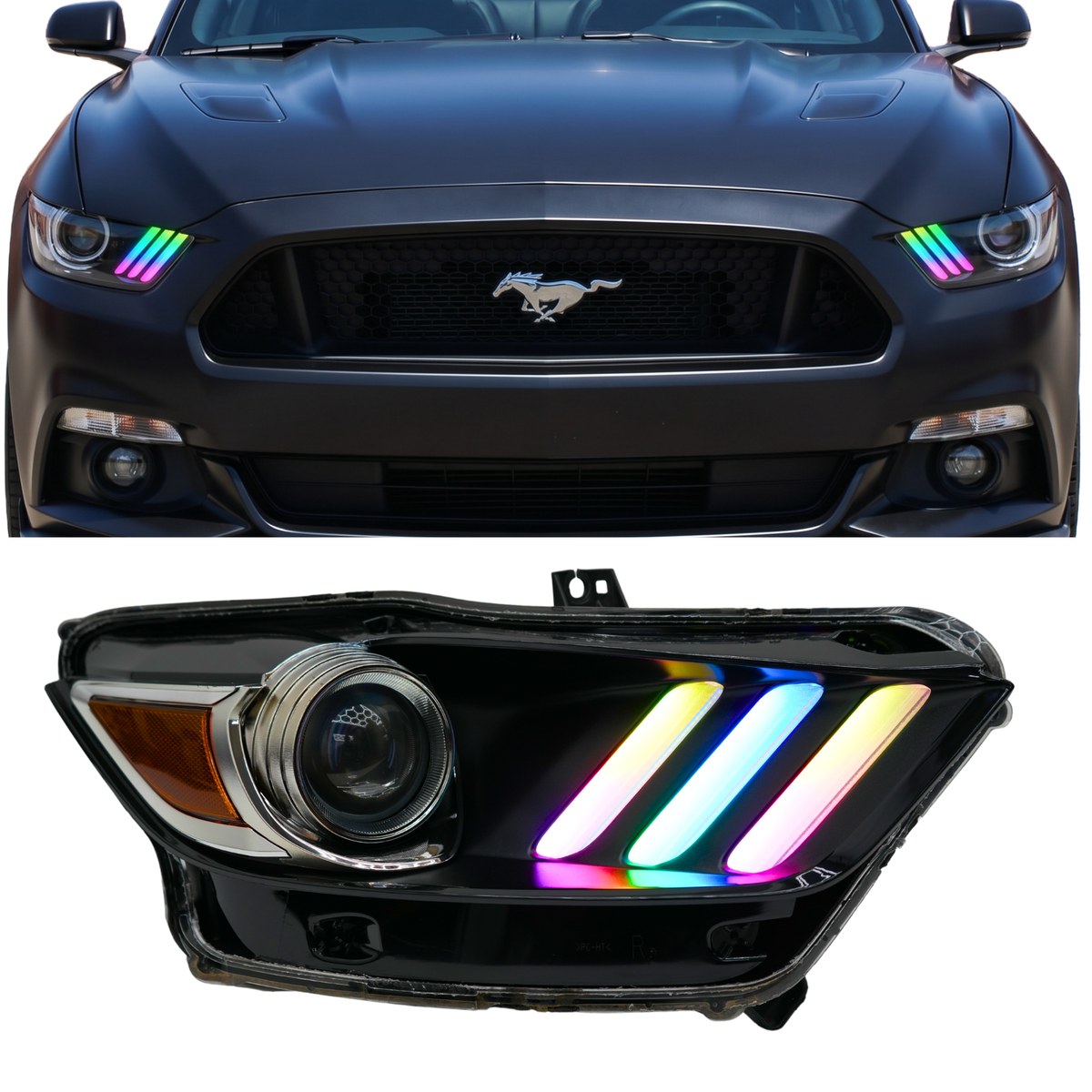

Ford Mustang Multicolor Flow Series DRL Boards (2015-2017)
Step 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation. See the wiring guide that comes with your product or visit our wiring guide.
Step 2: Remove your bumper to access headlights.
Ford Mustang Bumper and Headlights Removal PDF
Step 3: Open your headlights. (*Confirm the opening and resealing method for your exact housing before following the video below)
Step 4: Install your LED Product into your headlights.
Step 5: Reseal your headlights (see video above) or click here for full guide.
Step 6: If you haven't already, wire your LED Product onto your car using the included wiring guide or see our wiring guide.
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help

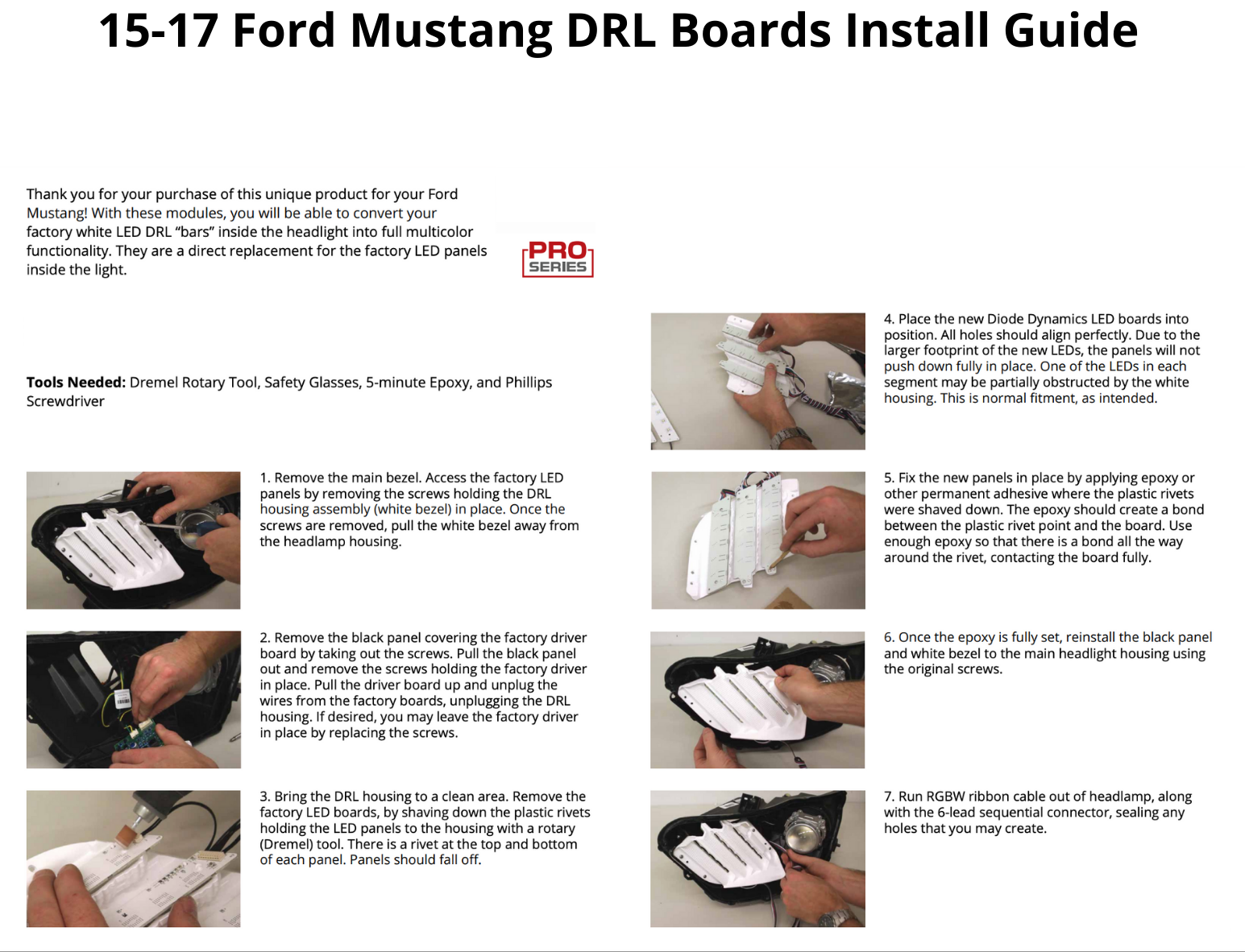

Checked against Ford Mustang Multicolor DRL Boards (2015-2017) Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
