Part # E11, E12

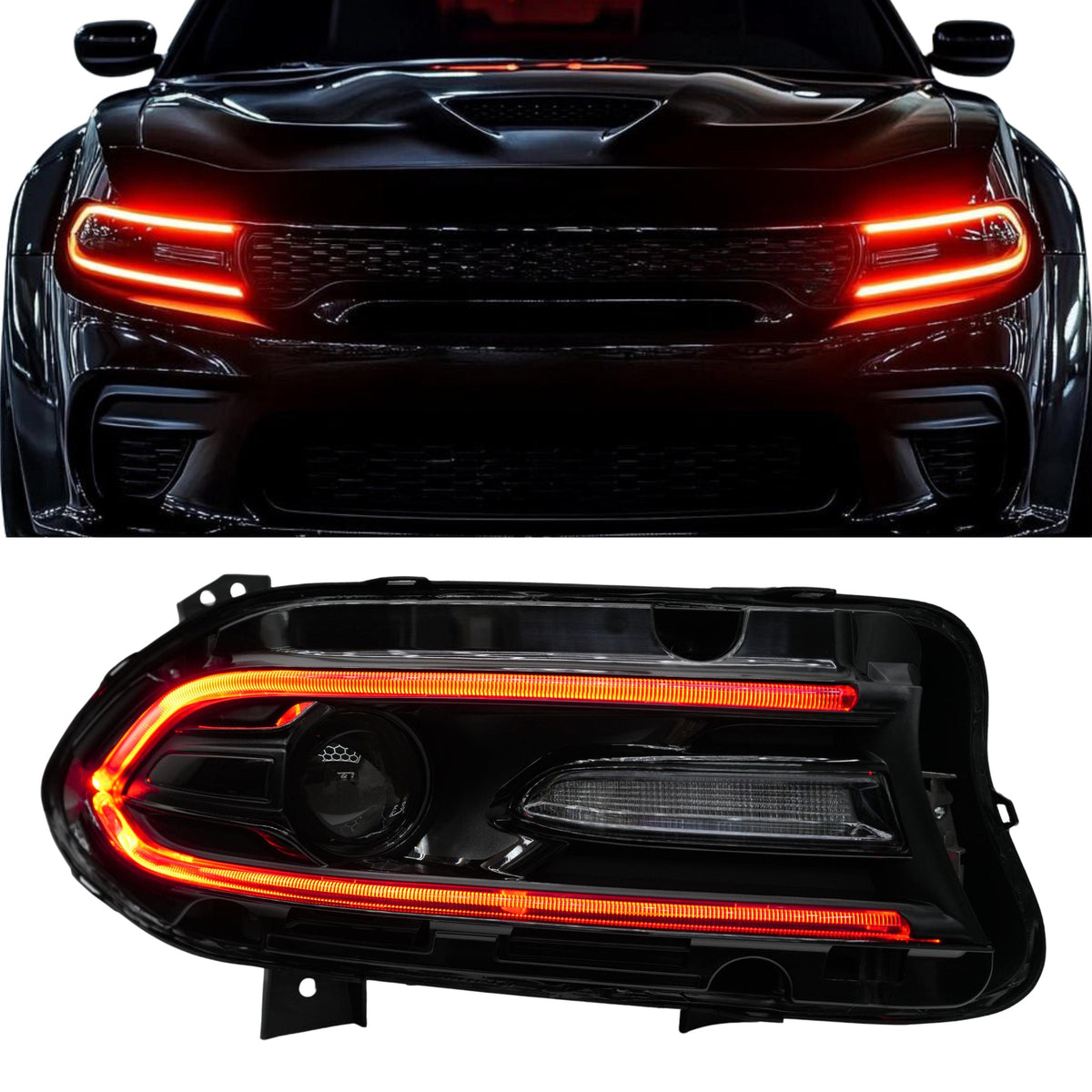

Dodge Charger RGBWA DRL Boards (2015-2024)
Install Guide
🔧 Step 1: Test Your DRL Boards
Before installation, test all LED boards using your controller and power source. This ensures everything works correctly and helps you understand the wiring setup.
📄 Need help? RGBW Bluetooth LED Controller w/ DRL SmartSwitch — Wiring & Setup Guide
🛠️ Step 2: Remove Your Bumper + Headlights
To access the headlights, you'll need to remove the front bumper.
🔧 See Charger Bumper + Headlight Removal Guide ›
🔥 Step 3: Open Your Headlights
Open the headlight housings using a heat method (baking or heat gun). This process is safe when done correctly.
🎥 Watch Our Headlight Opening Video ›
📖 Or View Full Headlight Resealing Guide ›

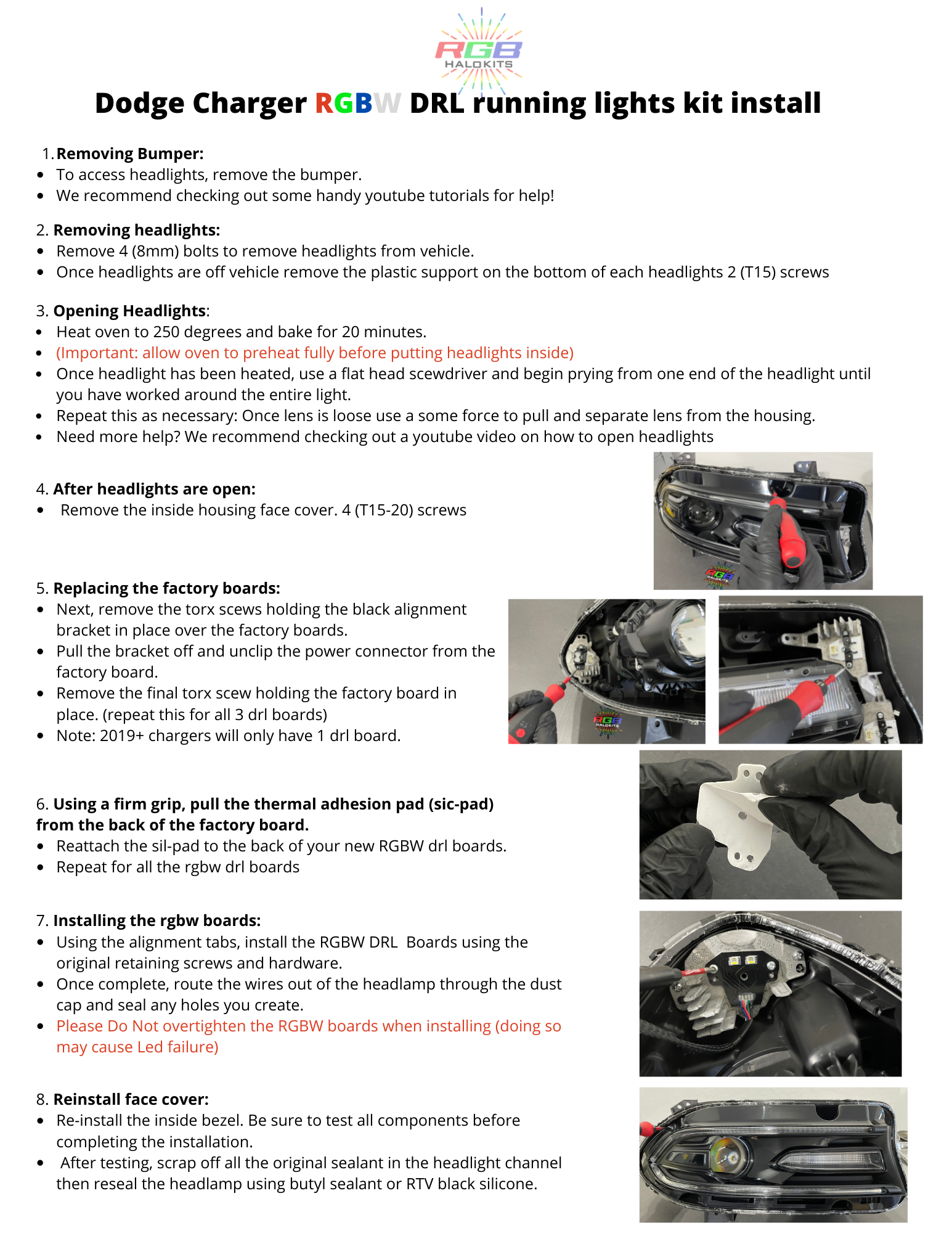

💡 Step 4: Install the RGBWA DRL Boards
Carefully remove the original DRL boards and replace them with the RGBWA boards.
⚠️ Compatibility Note: 1 vs. 3 DRL Board Models
2015–2018 Chargers use 3 active DRL boards (driver and passenger sides).
2019+ Chargers use only 1 active DRL board per headlight from the factory.
If you have a 2019+ model, the other two boards are not utilized by default, but:
✅ You can repurpose them as Demon Eyes for extra customization.
After installing the RGBW boards, the factory OEM DRL boards are no longer used.
The three factory DRL connectors can remain unplugged. They do not need to be reconnected to the OEM boards.
Secure the unused connectors inside the headlight so they cannot move around, contact moisture, or interfere with the new wiring or internal components. Do not cut or remove the factory connectors in case the headlights ever need to be returned to the original configuration.
🧰 Step 5: Reseal the Headlights
Once the DRL boards are secured and tested inside the housing, reseal your headlights using a butyl sealant or our recommended rubberized sealant for a long-lasting watertight bond.
📖 View Headlight Sealing Guide ›

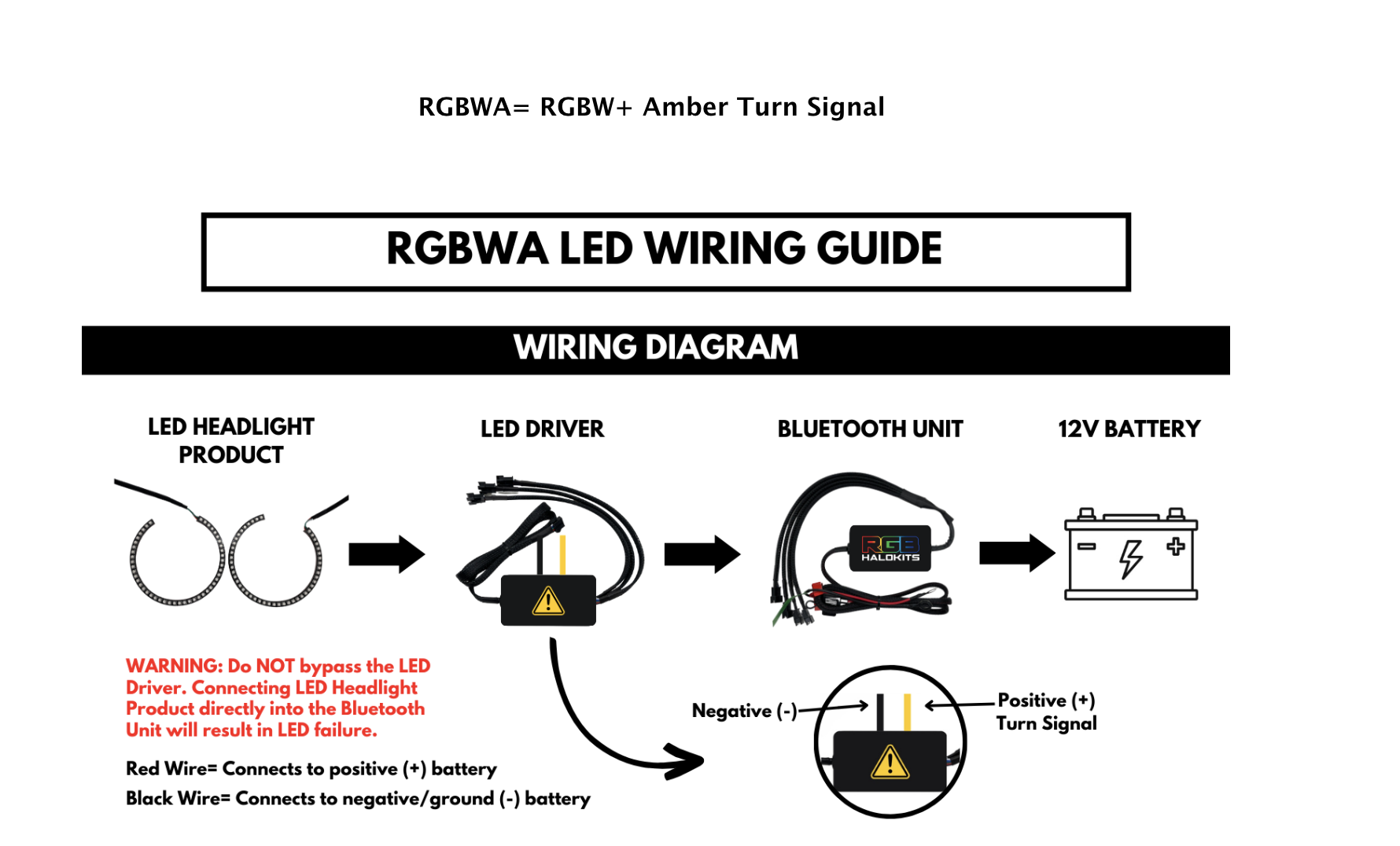

⚡ Step 6: Wire the System
Follow the included instructions or visit our wiring guide to properly power your RGBWA DRL boards with your controller.
RGBW Bluetooth LED Controller w/ DRL SmartSwitch — Wiring & Setup Guide – RGB HALO KITS
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against 2015-2023 Dodge Charger RGBW DRL boards Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
