This installation reference covers 2018-2020 Ford F150 Multicolor DRL Boards. Match the product, vehicle configuration and controller part number before starting.
Part # F24

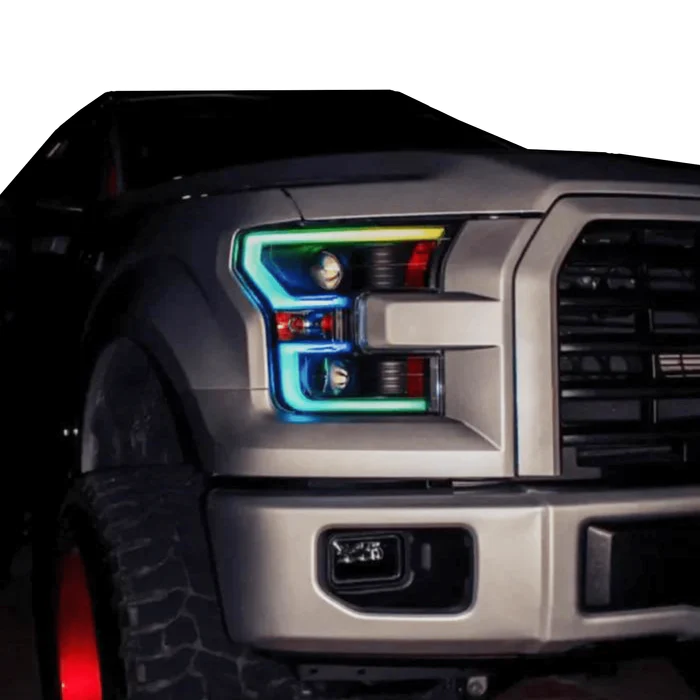

Ford F150 Multicolor Flow DRL Boards (2018-2020)
Install GuideStep 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation.
Step 2: Remove your bumper to access headlights.
2018-20 Ford F150 Bumper and Headlight Removal Guide PDF
Step 3: Open your headlights. (*Confirm the opening and resealing method for your exact housing before following the video below)
Step 4: Install your LED Product into your headlights
We are currently in the process of creating a video installation guide for this product. In the meantime, if you need any assistance during the installation process, don't hesitate to reach out to us. We're here to help! In the meantime, please check our General DRL Install Guide and wiring guide.
Step 5: Reseal your headlights (see video above) or click here for full guide.
Step 6: If you haven't already, wire your LED Product onto your car using the included wiring guide or see our general wiring guide.
Flow Series Bluetooth Controller w/ DRL SmartSwitch - Install Guide
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against Ford F150 Multicolor DRL Boards (2018-2020) Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
