This installation reference covers 2019-2023 Dodge Ram 1500 RGBW DRL Boards. Match the product, vehicle configuration and controller part number before starting.
Part # G13

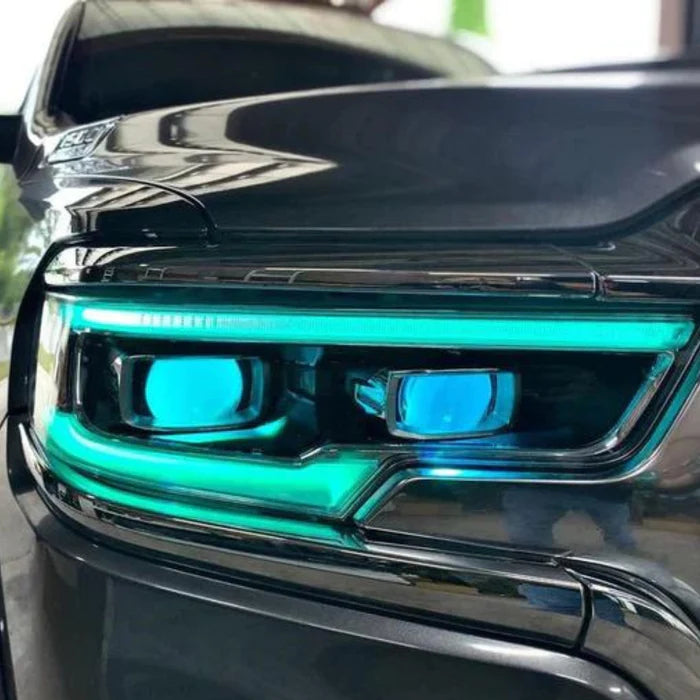

Ram 1500 / TRX RGBW DRL Boards (2019-2024)
Step 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation. See the wiring guide that comes with your product or visit our wiring guide.
RGBW Bluetooth LED Controller w/ DRL SmartSwitch — Wiring & Setup Guide
Step 2: Remove your bumper to access the headlights.
19-21 Dodge RAM Bumper and Headlight Removal Guide PDF
Step 3: Open your headlights.
Step 4: Install your LED Product into your headlights
RGBW Bluetooth LED Controller w/ DRL SmartSwitch — Wiring & Setup Guide
Step 5: Reseal your headlights (see video above) or click here for full guide.
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against 2019-2024 Dodge RAM 1500 RGBW DRL Boards in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
