This installation reference covers 2019-2023 Chevrolet Camaro SS/RS Multicolor RGBW DRL Boards. Match the product, vehicle configuration and controller part number before starting.
Part # F11

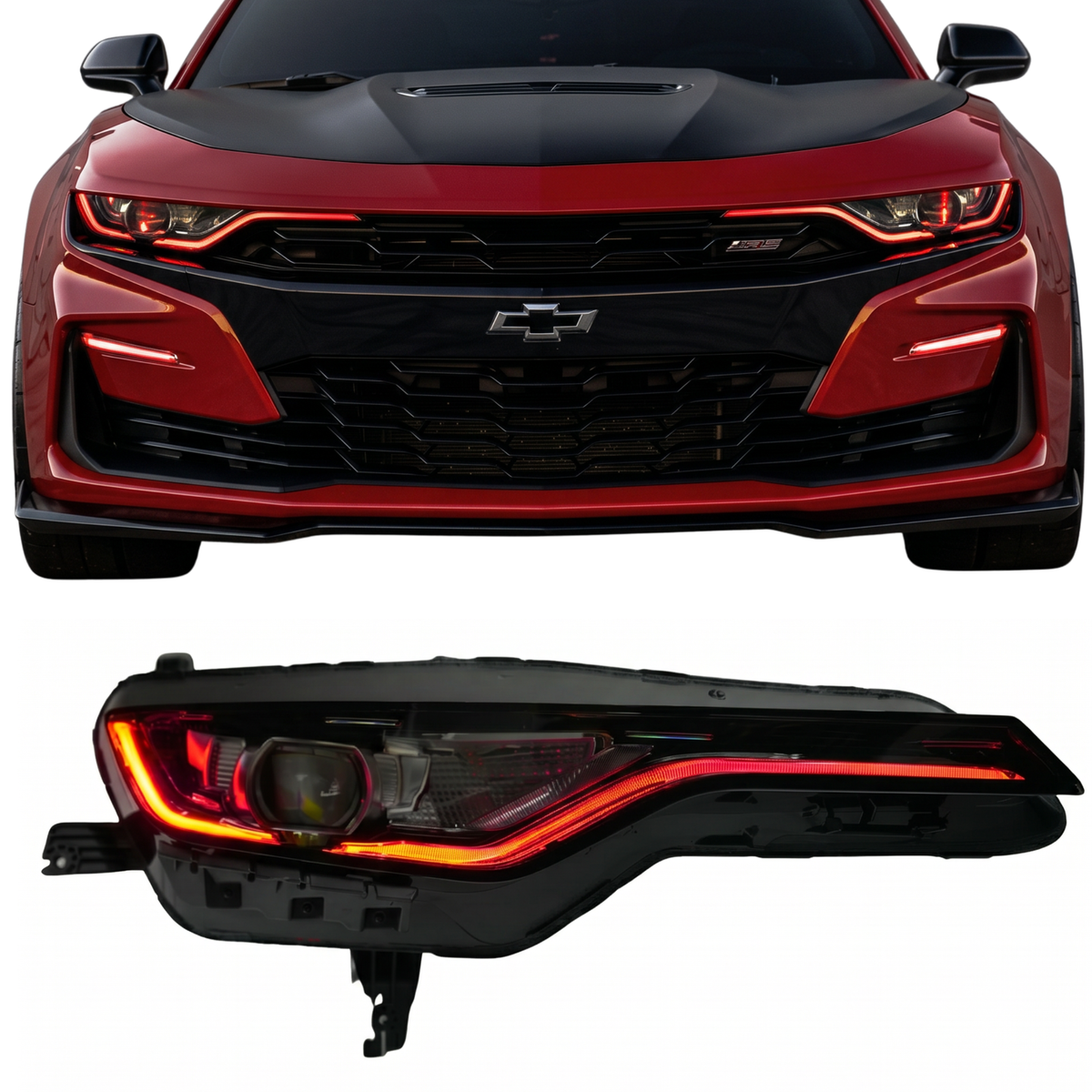

Chevrolet Camaro RS/SS RGBWA DRL Boards (2019-2024)
Install GuideStep 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation.
Step 2: Remove your bumper to access headlights.
Step 3: Open your headlights. We recommend using the cutting method on this headlight. (*Confirm the opening and resealing method for your exact housing before following the video below).
Step 4: Install your LED Product into your headlights.
Step 5: Reseal your headlights (see video above) or click here for full guide.
Step 6: If you haven't already, wire your LED Product onto your car using the included wiring guide
RGBW Bluetooth LED Controller w/ DRL SmartSwitch — Wiring & Setup Guide
The third-party video in this article belong to their creators and are used by RGB Halo Kits for instructional purposes. We don't own these videos, and their accuracy isn't guaranteed. If you have concerns about the content, please don't hesitate to get in touch with us. Users agree to these terms by using the videos.
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against 2019-2024 Chevrolet Camaro RS/SS RGBW DRL Boards Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
