Part # F7

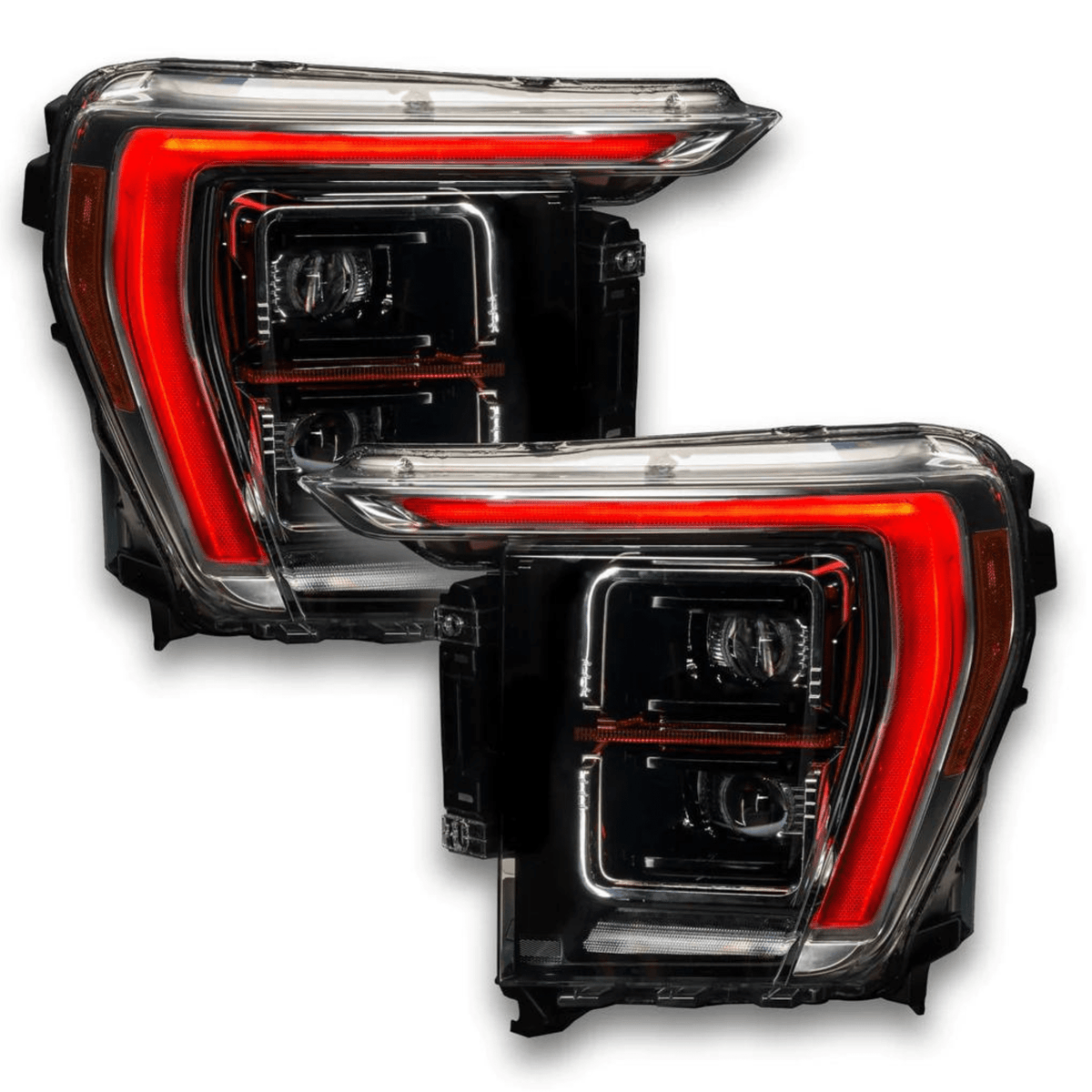

Ford F150 RGBW DRL Boards (2021-2023)
Install GuideStep 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation.
Step 2: Remove your bumper to access headlights.
21-23-Ford-F-150 Bumper and Headlight Removal Guide PDF
Step 3: Open your headlights. (*Confirm the opening and resealing method for your exact housing before following the video below)
Step 4: Install your LED Product into your headlights.
Headlight DRL Install
Foglight DRL Install
Step 5: Reseal your headlights (see video above) or click here for full guide.
Step 6: If you haven't already, wire your LED Product onto your car using the included wiring guide
RGBW Bluetooth LED Controller Wiring Guide
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against 2021-2023 Ford F150 RGBW DRL Boards Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
