This installation reference covers Ford Explorer RGBW DRL Boards (2020-2024). Match the product, vehicle configuration and controller part number before starting.
Part # F8

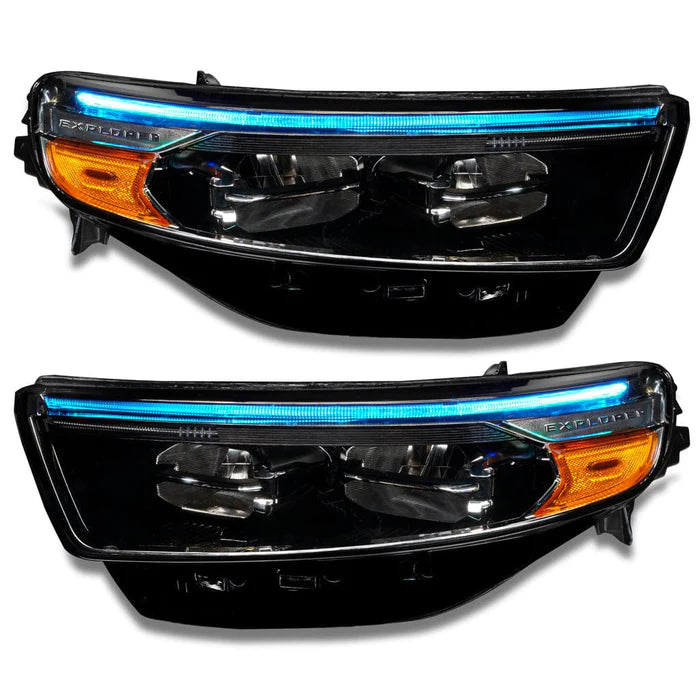

Ford Explorer Multicolor RGBW DRL Boards (2020-2024)
Step 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation.
Step 2: Remove your bumper to access the headlights.
Step 3: Open your headlights. (*Confirm the opening and resealing method for your exact housing before following the video below)Step 4: Install your LED Product into your headlights
Step 5: Reseal your headlights (see video above) or click here for full guide.
Step 6: If you haven't already, wire your LED Product onto your car using the included wiring guide
RGBW Bluetooth LED Controller w/ DRL SmartSwitch — Wiring & Setup Guide
Source and installation help
Checked against 2020-2024 Ford Explorer DRL Kit Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
