This installation reference covers Infiniti Q50 LED Emblem. Match the product, vehicle configuration and controller part number before starting.
Version check: The current Help Center guide covers the Flow LED emblem V2 and includes LED LAMP instructions for earlier V1 units. Confirm your emblem version and supplied app instructions before wiring or pairing. Do not assume that an app listed for V1 applies to V2.
Part # H8, H9, H14,

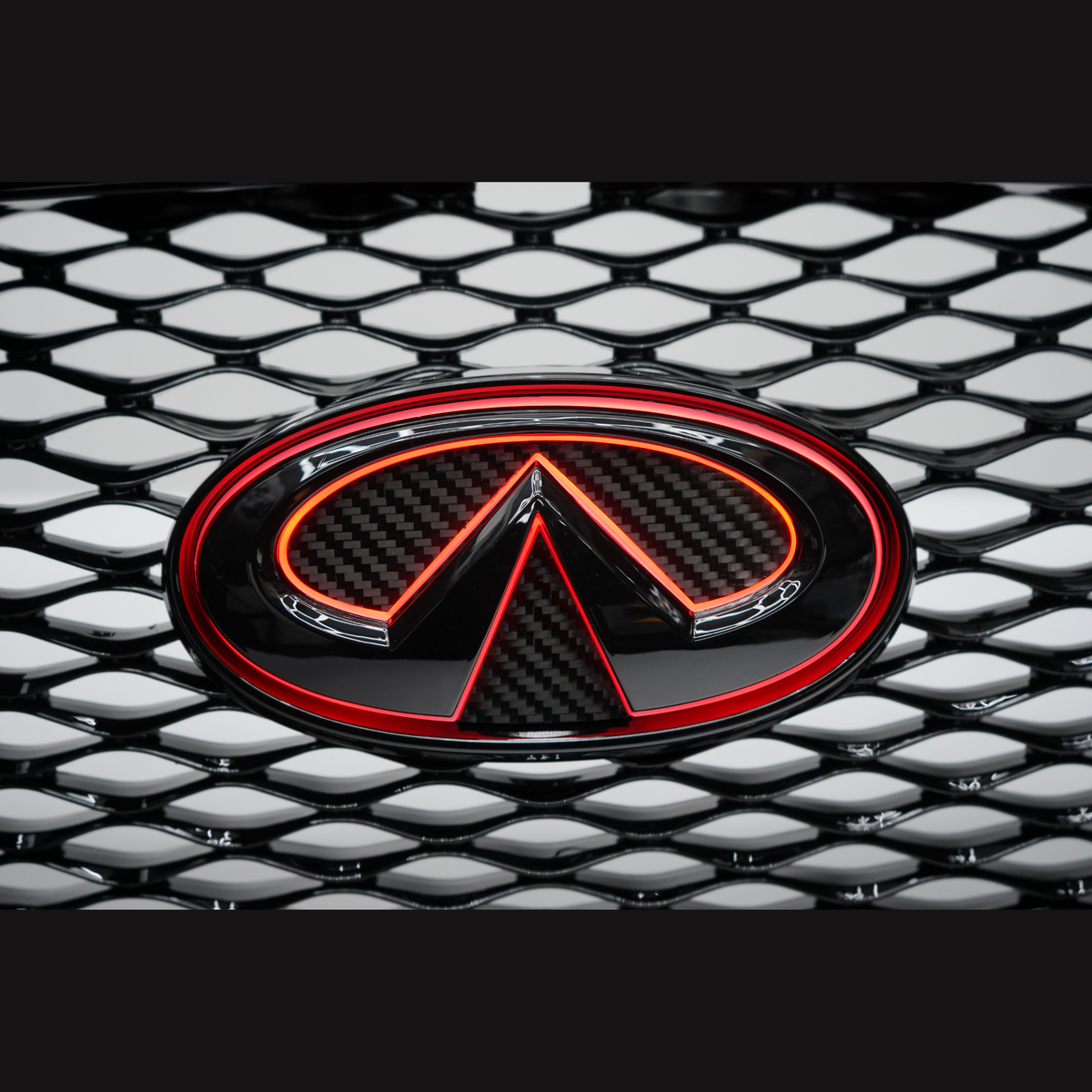

Infiniti Q50 Multicolor Flow LED emblem (2014-2024)
⚠️ Important: Handle with care. Avoid pressing hard on the face of the emblem—this can damage the internal LEDs or crack the surface.
🧰 Tools You’ll Need:
Plastic trim removal tool
10mm socket + ratchet
Electrical tape or heat shrink
Zip ties
Wire stripper/crimper (if hardwiring)
Optional: Panel clips or 3M double-sided tape (if needed)
📦 What’s Included:
1x RGB Illuminated LED Emblem w Bluetooth built into product
🔧 Step-by-Step Installation:
1. Prep the Vehicle
Park your Q50 on a level surface.
Turn off the engine and remove the key.
Pop the hood
2. Remove OEM Emblem
Open the hood and locate the backside of the front grille.
Use a 10mm socket and trim tool to remove any fasteners or plastic nuts securing the factory emblem.
Gently push the OEM emblem out from the back. Avoid prying from the front to prevent grille damage.
3. Install the New LED Emblem
Feed the LED emblem’s wiring through the same opening the OEM wires came through.
Align the new emblem carefully with the grille. Do not press hard on the face—support it from the sides or edges as you press into place.
Secure using the factory clips or included hardware. If fitment is loose, use 3M tape or panel clips for added hold.
4. Route the Wiring
Guide the wires along the factory harness inside the engine bay.
Use zip ties to secure wires away from hot engine components or moving parts.
Bring the wiring towards the fuse box or pass it through the firewall (depending on where you plan to power it).
5. Connect Power
You have two main options:
Option A: Fuse Tap (Recommended for DIYers)
Tap into a fuse that powers on with ignition or parking lights (verify the correct circuit for your vehicle).
Use an "Add-a-Fuse" adapter and connect the power wire.
Ground the black wire to a clean chassis bolt.
Option B: Hardwire to Parking Light or DRL
Splice into the vehicle’s parking light or DRL wiring (typically located near the headlights).
Connect red wire to 12V+ and black to ground.
Use electrical tape or heat shrink to secure the connection.
6. Connect to app & Test
If you have the V1 version of this product is will may this app (most orders before Feb 1st 2026)
Download and Open your LED control app (LED LAMP)
Cycle through colors and modes to confirm the emblem works as intended.
App name: LED Lamp
📶 Troubleshooting & Notes
Bluetooth is Built-In:
The Bluetooth controller is integrated directly into the emblem—no external box is needed.
⚡ If the emblem does not light up:
Double-check your 12V power source is active (ignition or parking light circuit).
Make sure the ground wire is securely connected to bare metal (not painted or plastic).
Try switching to a different known 12V power source (such as another fuse or accessory line).
📱 If the app cannot connect:
Ensure Bluetooth is enabled on your phone.
Use the correct app: LED LAMP (available on iOS and Android).
Try restarting the app and power cycling the vehicle (turn off, then back to ignition).
Stand close to the emblem with no metal or obstruction in between.
🌈 If some colors are missing or dim:
Check for loose, pinched, or damaged wires.
Verify all connections are solid and not shorting out.
Make sure the power supply is consistent and not fluctuating.
✅ You're Done!
Enjoy your new illuminated Infiniti emblem and tag us on Instagram @rgbhalokits to get featured!
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against Infiniti Q50 Flow LED Emblem V2 Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
