Product Link

Quad 4 Row LED Wheel Ring Kit | Flow Series

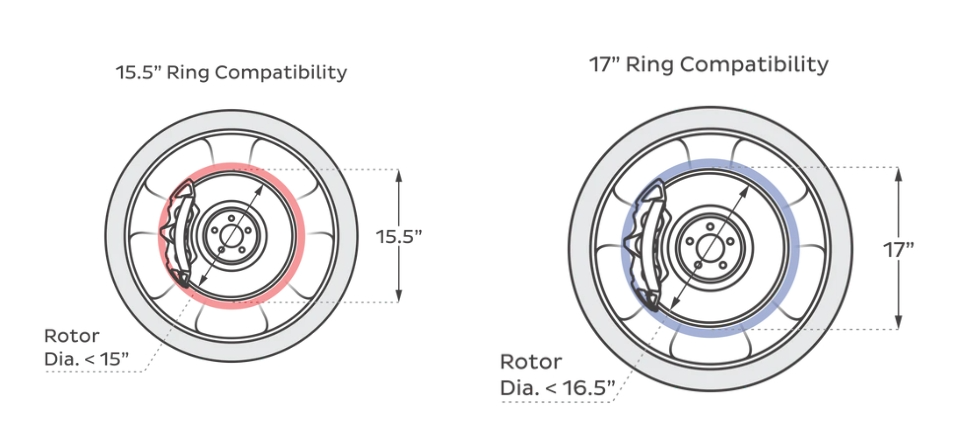

Welcome to RGBHALOKITS.COM installation guide for your Quad 4 Row LED Wheel Ring Kit | Flow Series! Before you begin the installation process on your vehicle, please test all components to ensure they are functioning properly. If your wheel lights kit has a Bluetooth controller, you must download the required app. The controllers are in the "OFF" mode by default, so you will need to connect to the app's controller to turn the controller and wheel lights on to ensure that everything is working properly.


HappyLighting app


  Happy Lighting


After installing the wheel ring brackets and strips, connect the extension wire to the end of the strip that says DI on it (for Data In) and route it to the vehicle's engine bay. Be sure to leave some slack around the vehicle's control arms to ensure the extension wire has room to move while the vehicle is turning. Securely fasten the extension wire with zip ties to keep it in place. Please note that the longer extension wires are to be used on the wheel lights located on the rear wheels.


Next, connect the extension wire to one of the open connectors from the LED controller.


The LED controller requires a 12-volt power source in order to function. The red wire with the in-line fuse is the 12-volt positive wire. This can be tapped into your desired 12-volt fuse source on the vehicle or spliced into a 12-volt source of your choice. It can also be connected directly to the vehicle's battery.

The black wire is the ground wire. This can be connected or spliced to any ground wire or source on your vehicle, including the vehicle frame ground.


The blue wire is an optional connection that taps into your brake light signal wire. When the brakes are applied, the wheel lights automatically switch to red. When the brakes are inactive, the lights will switch to the previous color or pattern.


The third-party video in this article belong to their creators and are used by RGB Halo Kits for instructional purposes. We don't own these videos, and their accuracy isn't guaranteed. If you have concerns about the content, please don't hesitate to get in touch with us. Users agree to these terms by using the videos.
