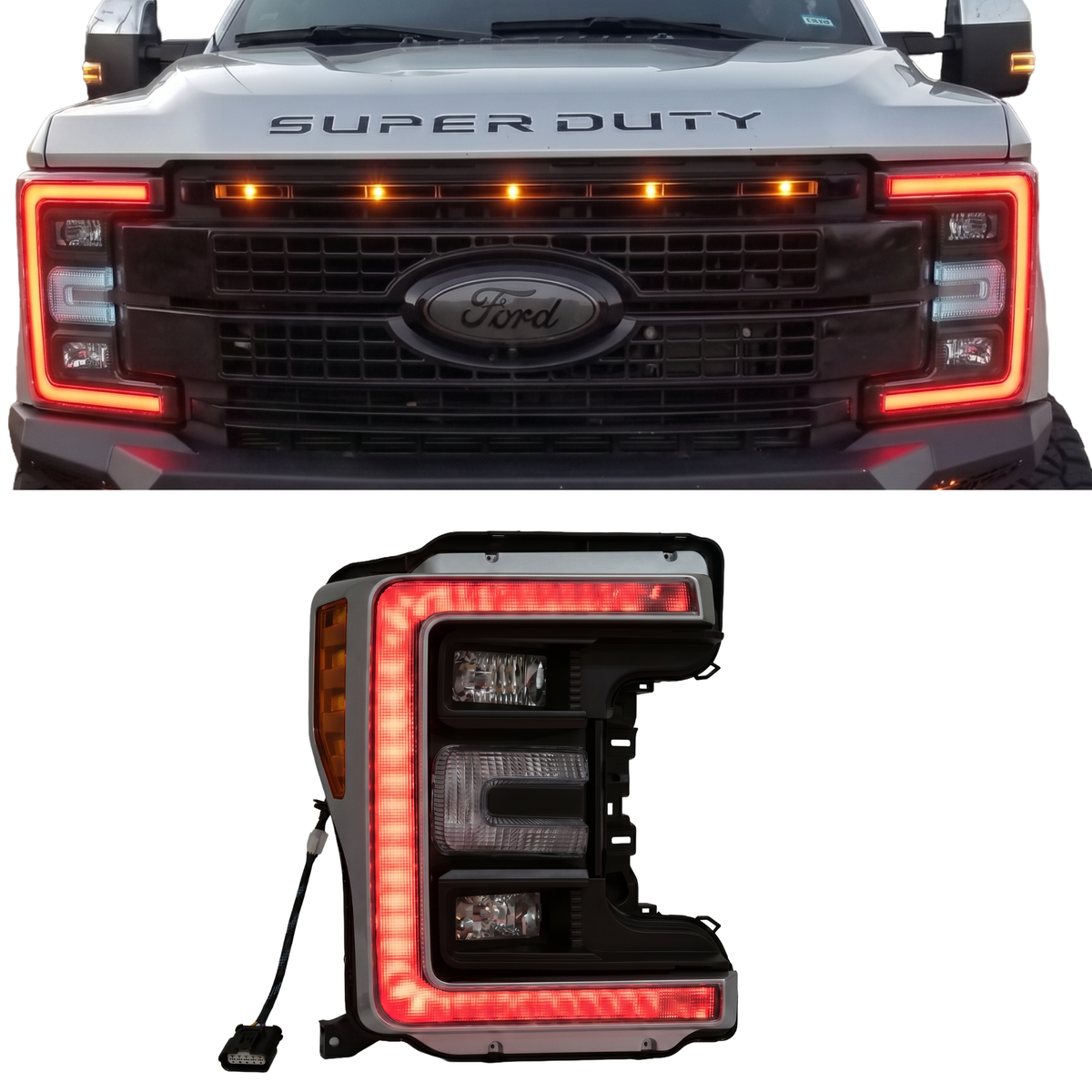

Ford Super Duty DRL Boards (2017-2019)
Install GuideStep 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation. See the wiring guide that comes with your product or visit our wiring guide.
Step 2: Remove your bumper to access headlights.
2017-19 Ford Super Duty F250 | F350 | F450 | F550 Bumper and Headlight Removal Guide PDF
Step 3: Open your headlights. (*Confirm the opening and resealing method for your exact housing before following the video below)
Step 4: Install your LED Product into your headlights.
Step 5: Reseal your headlights (see video above) or click here for full guide.
Step 6: If you haven't already, wire your LED Product onto your car using the included wiring guide or see our general wiring guide.
