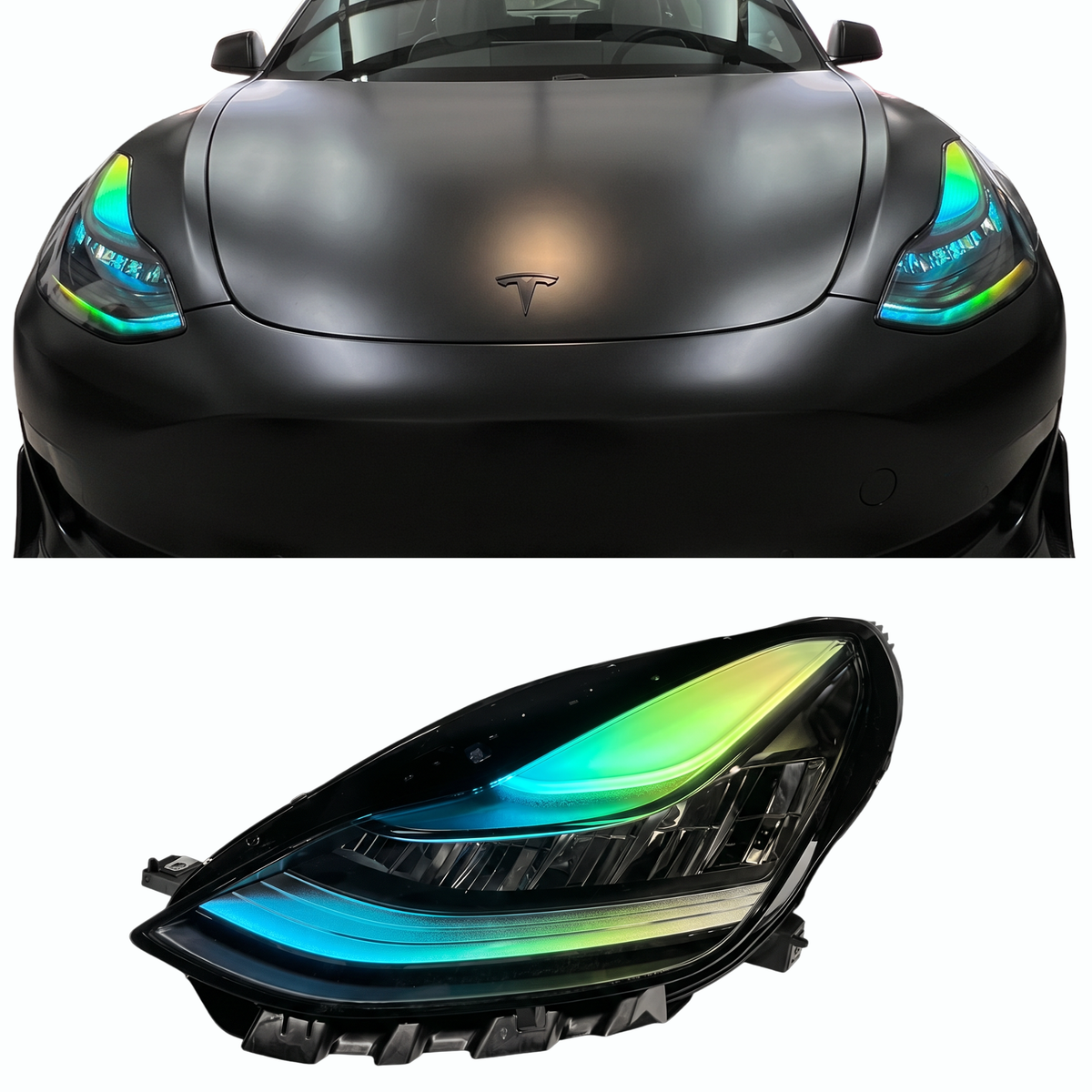

This installation reference covers 2017-2021 Tesla Model 3 Multicolor DRL Boards. Match the product, vehicle configuration and controller part number before starting.
Product Link
2017-2021 Tesla Model 3 Multicolor DRL Boards
Step 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation. See the wiring guide that comes with your product or visit our wiring guide.
Step 2: Remove your bumper to access headlights.
Tesla Model 3 Bumper and Headlights Removal PDF
Step 3: Open your headlights. Flow version only (RGBW does not require opening of the headlights) (*Confirm the opening and resealing method for your exact housing before following the video below)
Step 4: Install your LED Product into your headlights.
RGBW Version
We are currently in the process of creating a video installation guide for this product. In the meantime, if you need any assistance during the installation process, don't hesitate to reach out to us. We're here to help! In the meantime, please check our General DRL Install Guide and wiring guide.
Step 5: Reseal your headlights (see video above) or click here for full guide.
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against 2017-2021 Tesla Model 3 Multicolor DRL Boards Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
