Part # F3

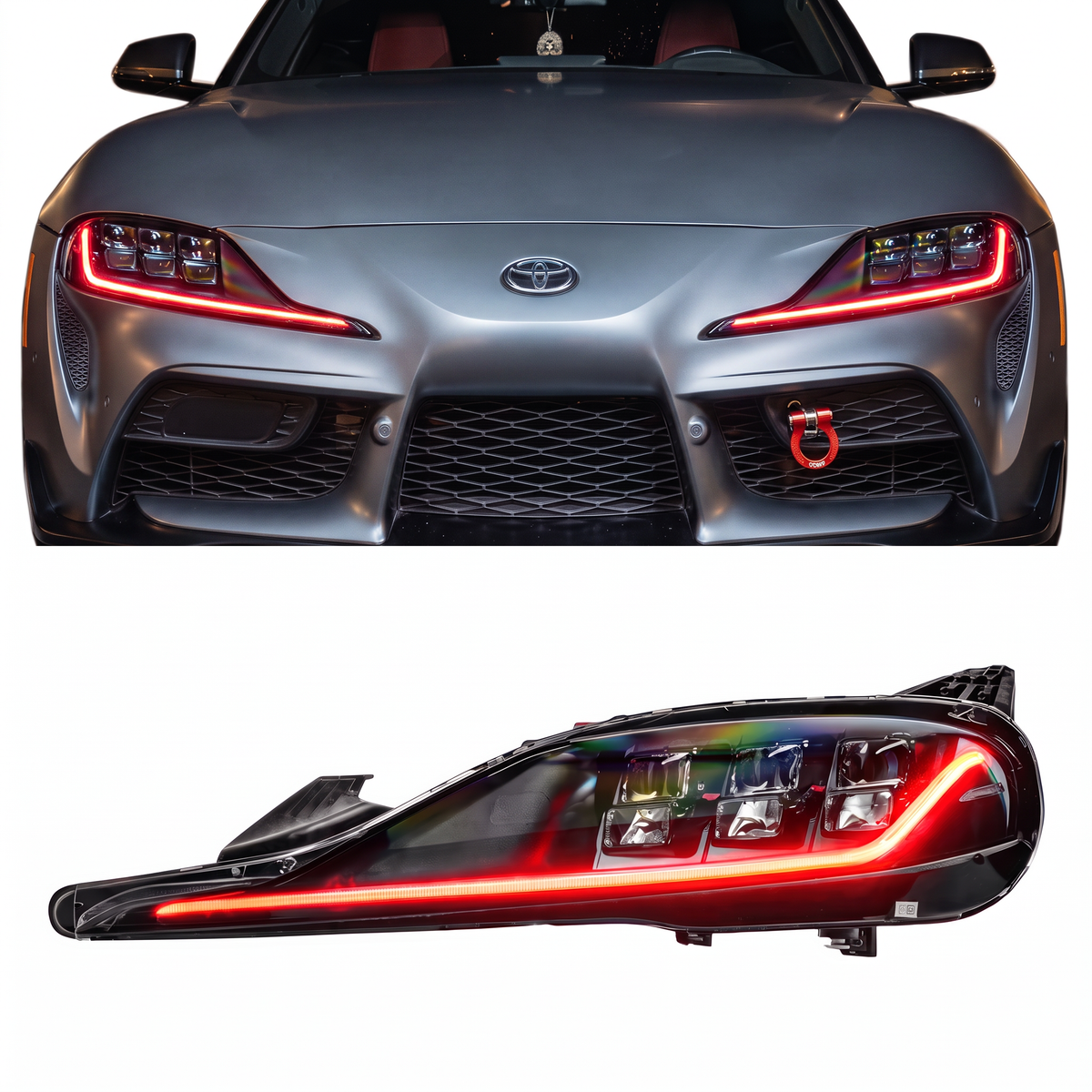

Toyota Supra RGBW DRL boards (2020-2024)
This product installs without having to open the headlights!
📦 Tools Needed
10mm socket & ratchet
T10 and T20 Torx drivers
Trim removal tools
Screwdriver set
Heat-resistant gloves (optional)
1. Remove Front Bumper & Fender Liners
Jack up the front end (optional, but gives easier access).
Remove plastic clips and 10mm bolts along the fender liner and bottom of bumper.
Carefully unclip and set aside the bumper. Unplug any sensor harnesses.
2. Access the DRL Module
Locate the heat sink/ballast on the backside of the headlight.
Remove the screws (T20 Torx) securing the heat sink.
Unplug the factory DRL connector.
Remove the screws holding in the OEM DRL board (T10 Torx).
3. Install RGBW DRL Boards
Insert the new RGBW DRL board into place where the OEM board was seated.
Secure using original screws.
Run wires out of ballast and into led driver
5. Wire the Controller/ Boards
6. Reinstall Everything
Reattach the heat sink to each headlight.
Bolt headlights back into place.
Reinstal fender liners, and reconnect all plugs.
Confirm panel alignment and torque all bolts evenly.
7. Test Functionality
Power on the car and test daytime running light behavior.
Open your app (rgb halo kits) to confirm Bluetooth connection.
Test color changing, brightness, white mode, and patterns.
