This installation reference covers 2011-2021 Chrysler 300 Multicolor DRL Boards. Match the product, vehicle configuration and controller part number before starting.
Part # F16

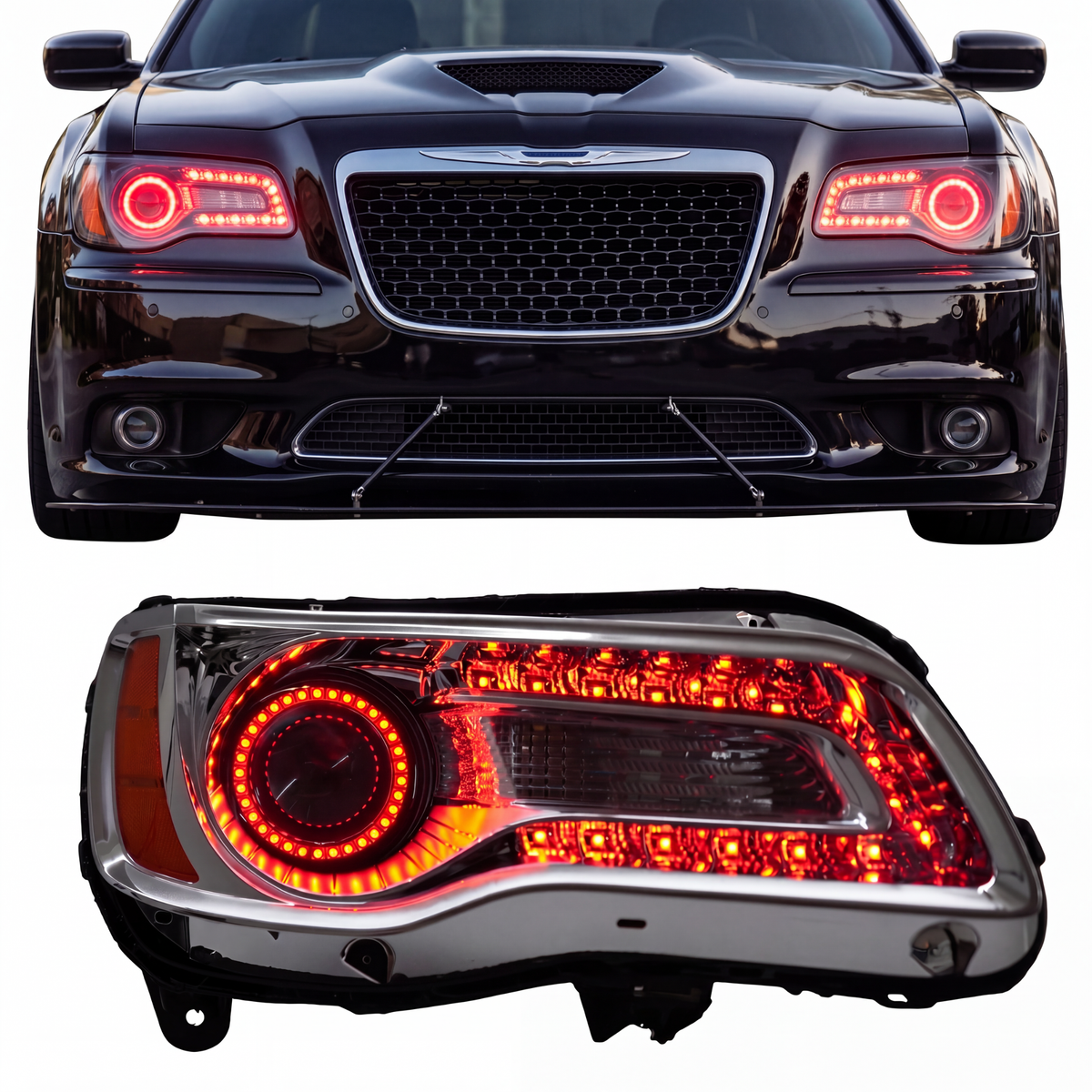

Chrysler 300 Multicolor Flow Series DRL Boards (2011-2023)
Install Guide
Step 1: Test your Product. This helps you check operation and confirm the wiring before permanent installation. See the wiring guide that comes with your product or (visit our Wiring Guide.)
Step 2: Remove your bumper to access headlights (start at 3:37)
Step 3: Open your headlights. We recomend using the baking method to open. (*Confirm the opening and resealing method for your exact housing before following the video below)

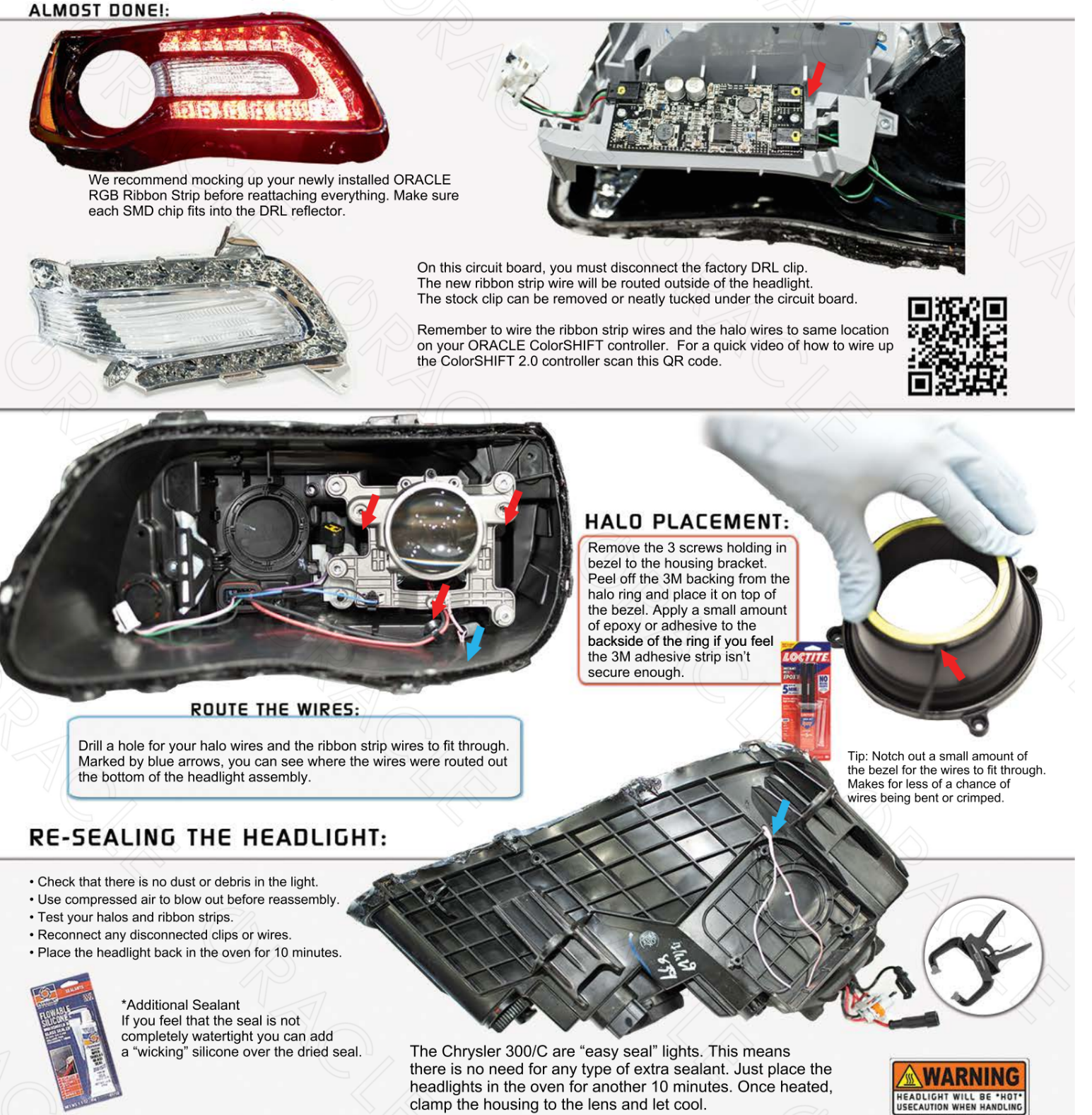

Step 4: Install your LED Product into your headlights
Step 5: Reseal your headlights (see video above)
Step 6: If you haven't already, wire your LED Product onto your car using the included Wiring Guide.
Flow Series Bluetooth Controller w/ DRL SmartSwitch - Install Guide
The video in this article belong to their creators and are used by RGB Halo Kits for instructional purposes. We don't own these videos, and their accuracy isn't guaranteed. If you have concerns about the content, please don't hesitate to get in touch with us. Users agree to these terms by using the videos.
Additional installation videos
These earlier demonstrations may show a different controller revision. Use the current kit-specific wiring instructions above for your supplied hardware.
Source and installation help
Checked against 2011-2021 Chrysler 300 Multicolor DRL Boards Install Guide in the RGB Halo Kits Help Center on October 22, 2026. Follow the instructions supplied with your exact kit if hardware versions differ.
